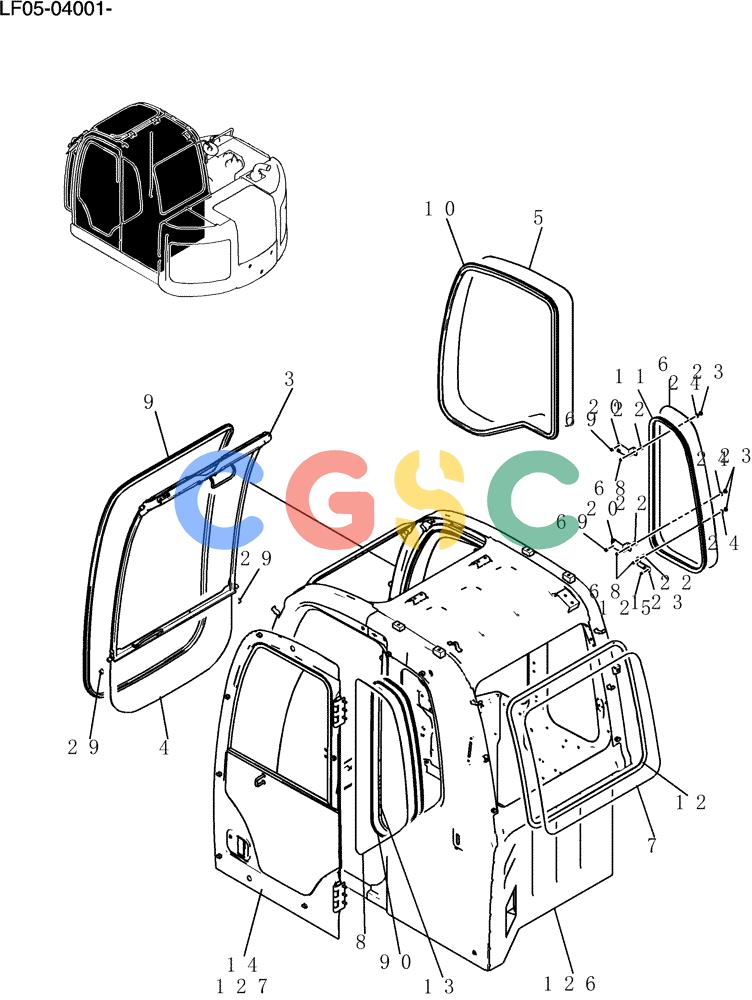

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (180-17[1]) - CAB ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02C00044F2%KL | [1] | Cab Assy (grayish Black) | |
| 3. | YN50C00005F1 | [1] | WINDOW | KOBAssy, Fr. (See Fig No.190-01-1) |
| 4. | YN02C03160P1 | [1] | GLASS | KOBLower Front |
| 5. | YB02C01036P1 | [1] | GLASS | KOB |
| 6. | YN02C01567P1 | [1] | GLASS | KOB |
| 7. | YN02C01787P1 | [1] | GLASS | KOB |
| 8. | YN02C02136P1 | [1] | GLASS | KOB |
| 9. | YN02C03006P2 | [1] | GASKET | SMRubber |
| 10. | YB02C01080P1 | [1] | RUBBER BAND | KOB |
| 11. | YN02C01825P1 | [1] | SEAL,2050mm L | KOB |
| 12. | YT02C01115D3 | [1] | RUBBER SLEEVE | KOB |
| 13. | YT02C01515D5 | [1] | TRIM PANEL | KOB Superseded by part number: YT02C01515D2 |
| 14. | YB02C01065P1 | [1] | RUBBER BAND | KOB Superseded by part number: YB02C01065P2 |
| 15. | YN02C03669P2 | [1] | GASKET | SMStrip, Weather |
| 16. | YN02C03887P1 | [2] | STOP | SMStopper |
| 17. | YN02C02747P1 | [1] | GUIDE | KOB |
| 18. | YN02C02746P1 | [1] | GUIDE | KOB |
| 19. | YN02C03005P1 | [4] | SPACER | KOB |
| 20. | YN02C01811P1 | [2] | PLATE | KOB |
| 22. | YN02C01812P1 | [3] | SPACER,10mm ID x 20mm OD x 4mm L | KOB |
| 23. | YN02C01668P1 | [3] | RETAINER | KOB |
| 24. | YN02C01669P1 | [3] | PACKING | KOB |
| 25. | YT02C01066P1 | [2] | STOP | KOBStopper |
| 26. | YT50S00004P1 | [1] | SWITCH | KOB |
| 27. | YB02C01131F1 | [1] | CABLE | KOBAssy |
| 28. | YT02C01161P1 | [2] | CLAMP | KOB |
| 29. | YT02C01136P1 | [2] | STOP | KOBStopper |
| 30. | YB51C01008P1 | [1] | HOOK | KOB |
| 31. | YT51C01077D1 | [1] | SPACER | KOB |
| 32. | YT02C01109F1 | [1] | CATCH | KOBAssy, Door Superseded by part number: YN02C04422F1 |
| 33. | YT02C01124P1 | [1] | COVER | KOB |
| 34. | YN02C02117P2 | [1] | LEVER | KOB |
| 35. | YT02C01207P1 | [1] | SPRING | KOB |
| 36. | YT02C01276P1 | [1] | COVER | KOB |
| 37. | YN02C01823P1 | [2] | STOP | KOBStopper |
| 38. | YT02C01274P1 | [1] | COVER | KOB |
| 39. | YT02C01280P1 | [1] | SPACER | KOB |
| 40. | YT02C01275P1 | [1] | LABEL | KOB |
| 41. | YB02C01111P2 | [1] | PAD | KOB |
| 42. | YN02C01820P1 | [4] | CLIP | KOB |
| 43. | YB02C01222P1 | [1] | PLATE | KOB |
| 44. | YB02C01223P1 | [1] | PLATE | KOB |
| 45. | YN02C01880P1 | [4] | RIVET,8.1mm OD x 25mm L | KOB |
| 46. | YT54C00001P1 | [1] | WINDSHIELD WASHER | KOBAssy, Window |
| 47. | YT02C01126D1 | [1] | TUBE | KOBTube |
| 48. | YT02C01129P1 | [2] | COVER | KOB |
| 49. | YN02C03098P1 | [1] | HARNESS | KOB |
| 50. | YT54S00018F1 | [1] | ANTENNA | KOBAssy |
| 51. | YT02C01134P1 | [1] | HOOK | KOB |
| 52. | YT80S00001P1 | [1] | LIGHT | KOBRoom Superseded by part number: 2456Z322F1 |
| 53. | YB02C01206P1 | [1] | TUBE | KOB |
| 54. | YN02C02983P1 | [1] | HANDRAIL | KOB |
| 55. | YN53C00012F2 | [1] | WIPER MOTOR | KOBWiper Assy |
| 56. | YN53C01003F1 | [1] | WIPER ARM | KOBAssy |
| 56-1. | YN53C01003S001 | [1] | WIPER ARM | KOBWiper |
| 56-2. | YN53C01003S002 | [1] | WIPER BLADE | KOB Superseded by part number: 47669054 |
| 56-3. | YN53C01003S003 | [2] | SCREW | KOBMachine |
| 56-4. | YN53C01003S004 | [1] | COVER | KOB |
| 56-5. | YN53C01003S005 | [1] | STOP | KOBBracket Superseded by part number: YN53C00002S003 |
| 56-6. | YN53C01003S006 | [2] | BRACKET | KOBStopper |
| 57. | YN02C01294P1 | [1] | STOP | KOBStopper |
| 59. | PY21V01001P1 | [1] | CHECK VALVE | KOB |
| 61. | 2420Z1227D4 | [3] | SCREW | KOBMachine |
| 62. | ZS18C08030 | [1] | SCREW,Hex, M8 x 30mm | KOBCap |
| 63. | ZM22C08025 | [4] | BOLT | KOBSems |
| 65. | ZS31C05010 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBMachine Screw |
| 66. | ZS32T40012 | [4] | SCREW | KOBCross Tapping |
| 67. | ZS41C06020 | [2] | SCREW,M6 x 20mm | KOBMachine |
| 68. | ZM66C05012 | [3] | BOLT | KOBSems |
| 69. | ZM66C06016 | [18] | BOLT | KOBSems |
| 70. | ZS68C08025 | [2] | SCREW,Pan, M4 x 12mm | KOBCap |
| 71. | YN02C01875D1 | [4] | SCREW | KOBMachine |
| 72. | YR02C01571D2 | [2] | SCREW | KOB |
| 74. | ZN13C10008 | [6] | NUT | KOB Superseded by part number: ZN18C10008 |
| 75. | ZN18F10008 | [4] | NUT | KOB |
| 76. | 2418T12753 | [1] | WASHER | KOB |
| 77. | 2418Z725D3 | [1] | WASHER | KOB |
| 78. | 2420T4505 | [6] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOB |
| 79. | ZW11X10000 | [6] | WASHER | KOB Superseded by part number: ZW16X10000 |
| 80. | ZW16H10000 | [2] | WASHER | KOB |
| 81. | ZW16X10000 | [4] | WASHER | KOB |
| 82. | ZW22X10000 | [6] | LOCK WASHER | KOB Superseded by part number: ZW26X10000 |
| 83. | ZW26X08000 | [1] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 84. | ZN18C08007 | [2] | NUT | KOB |
| 85. | 2420R372D14 | [2] | GROMMET | KOB |
| 86. | ZW16X08000 | [2] | WASHER | KOB |
| 87. | 2420R372D8 | [2] | GROMMET | KOB |
| 88. | YT02C01229P1 | [2] | WASHER | KOB |
| 89. | YT02C01235P1 | [1] | GROMMET | KOB |
| 90. | YT02C01514D2 | [1] | SEAL | KOB Superseded by part number: YR02C01511D2 |
| 91. | YR01T01005P1 | [1] | ADHESIVE | KOB Superseded by part number: YN01T01067P1 |
| 92. | YR09T00002P1 | [1] | PAINT | KOB(25g) Superseded by part number: YN09T00009P1 |
| 93. | YR09T00003P1 | [1] | PAINT | KOB(25g) |
| 94. | YT02C01567D1 | [6] | PLATE | KOB(grayish Black) |
| 95. | YT02C01567D3 | [13] | PLATE | KOB(grayish Black) |
| 96. | YT02C01567D2 | [6] | PLATE | KOB(grayish Black) |
| 99. | YT02C01233P1 | [1] | CAP | KOB |
| 100. | YT02C01567D4 | [3] | PLATE | KOB(grayish Black) |
| 101. | YN02C03056P1 | [1] | STRIKER PLATE | KOBStriker |
| 102. | YN02C03055P1 | [1] | STRIKER | KOBStriker |
| 103. | YN02C03095P2 | [1] | STOP | KOBStopper |
| 104. | YN02C03094P2 | [1] | STOP | KOBStopper |
| 105. | YN02C03077P1 | [1] | PLATE | KOBBracket |
| 106. | YN02C03075P1 | [1] | PLATE | KOBBracket |
| 108. | ZM66C06025 | [4] | BOLT | KOBSems |
| 109. | YN02C03039P1 | [1] | SPACER | KOB |
| 110. | 2420R372D7 | [1] | GROMMET | KOB |
| 111. | YN02C03047P2 | [1] | BRACKET | KOB |
| 112. | YN02C03048P2 | [1] | BRACKET | KOB |
| 114. | YB02C01084P1 | [1] | BRACKET | KOB |
| 115. | YN02C03040P1 | [1] | SPACER | KOB |
| 116. | HY25X09017G1 | [2] | WASHER | KOB |
| 117. | ZM27C08025 | [8] | BOLT | KOBSems |
| 118. | ZM73C12020 | [4] | BOLT,M12x20mm - Course Thread | KOBSems |
| 119. | YT02C01261D1 | [6] | PLATE | KOB(neutral Gray 971) |
| 120. | YT02C01261D2 | [6] | PLATE | KOB(neutral Gray 971) |
| 121. | YT02C01261D3 | [13] | PLATE | KOB(neutral Gray 971) |
| 122. | YT02C01261D4 | [3] | PLATE | KOB(neutral Gray 971) |
| 123. | YN02C02023P1 | [1] | BRACKET | KOB |
| 124. | ZM27C10030 | [3] | SCREW | KOBSems-bolt |
| 125. | ZM66C05016 | [2] | BOLT | KOBSems |
| 126. | YT02C00051P1 | [1] | Cab | |
| 127. | YB51C00004F1%KL | [1] | DOOR | KOBAssy, Cab (grayish Black/ (See Fig No.194-17-1,2) |
