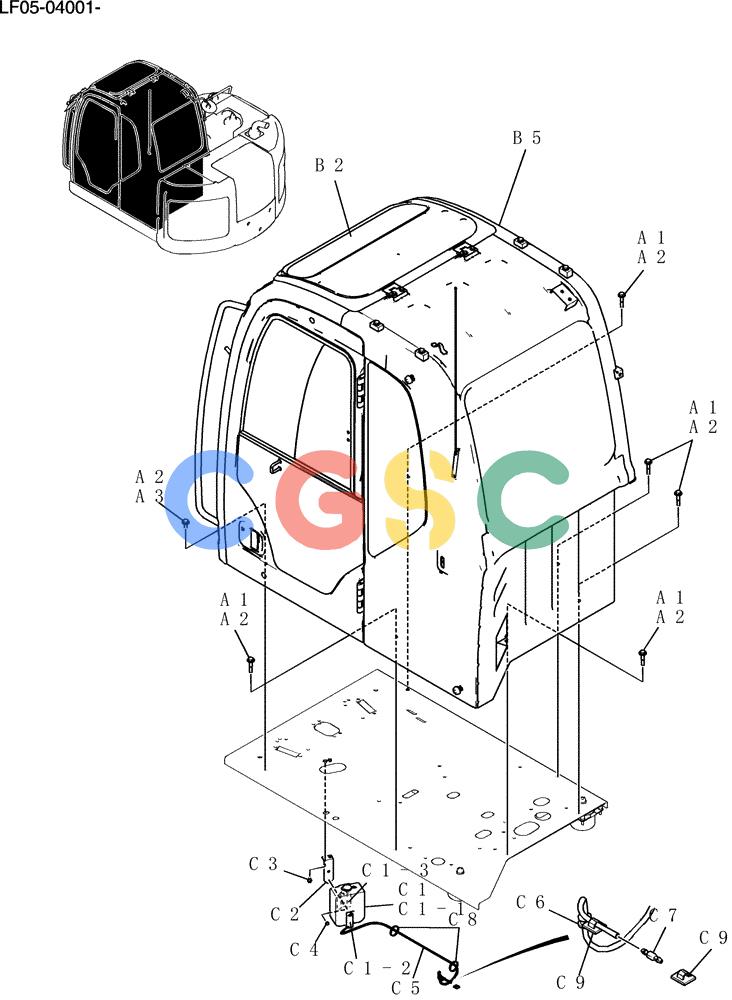

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (176-17[1]) - CAB INSTAL (VANDALISM GUARD SPEC) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
411 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02C00058F1 | [1] | Cab Instal (vandalism Guard Spec) | |
| . . | YT02C00048F1 | [1] | Cab Instal | |
| A1. | ZS18C12065 | [5] | SCREW,Hex, M12 x 65mm | KOBCap |
| A2. | 2418T10357 | [6] | WASHER | KOB Superseded by part number: 2418T12345 |
| A3. | ZS18C12030 | [1] | SCREW,Hex, M12 x 30mm | KOBCap |
| . . | YT02C00046F8 | [1] | Cab Assy | |
| B2. | YY02C01040F1%KL | [1] | WINDOW | KOBAssy, Roof (grayish Black) (See Fig No.187-17-1) |
| B4. | YB14Z00012P1 | [1] | Drawing, Painting [ NOT SHOWN ] | |
| B5. | YT02C00044F2%KL | [1] | Cab Assy (grayish Black) (See Fig No.180-17-2) | |
| . . | YT54C00004F1 | [1] | Tank Assy, Water | |
| C1. | YT54C00003F1 | [1] | TANK | KOBAssy, Water |
| C1-1. | YT54C00003S001 | [1] | ELECTRIC MOTOR | KOBAssy, Elec |
| C1-2. | YT54C00003S002 | [1] | TANK | KOBAssy, Water |
| C1-3. | YT54C00003S003 | [1] | BRACKET | KOB Superseded by part number: 2416P7292 |
| C2. | YB54C01003P1 | [1] | BRACKET | KOB |
| C3. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBSems |
| C4. | ZM73C06016 | [2] | BOLT,M6x16mm - Course Thread | KOBSems |
| C5. | YT02C01126D8 | [1] | TUBE | KOB Superseded by part number: YT02C01126D6 |
| C6. | YN03M01159P1 | [1] | GROMMET | KOB |
| C7. | YT02C01282P1 | [1] | ELEC CONNECTOR | KOB |
| C8. | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOB |
| C9. | 2432Z478D1 | [2] | CLIP | KOB |
