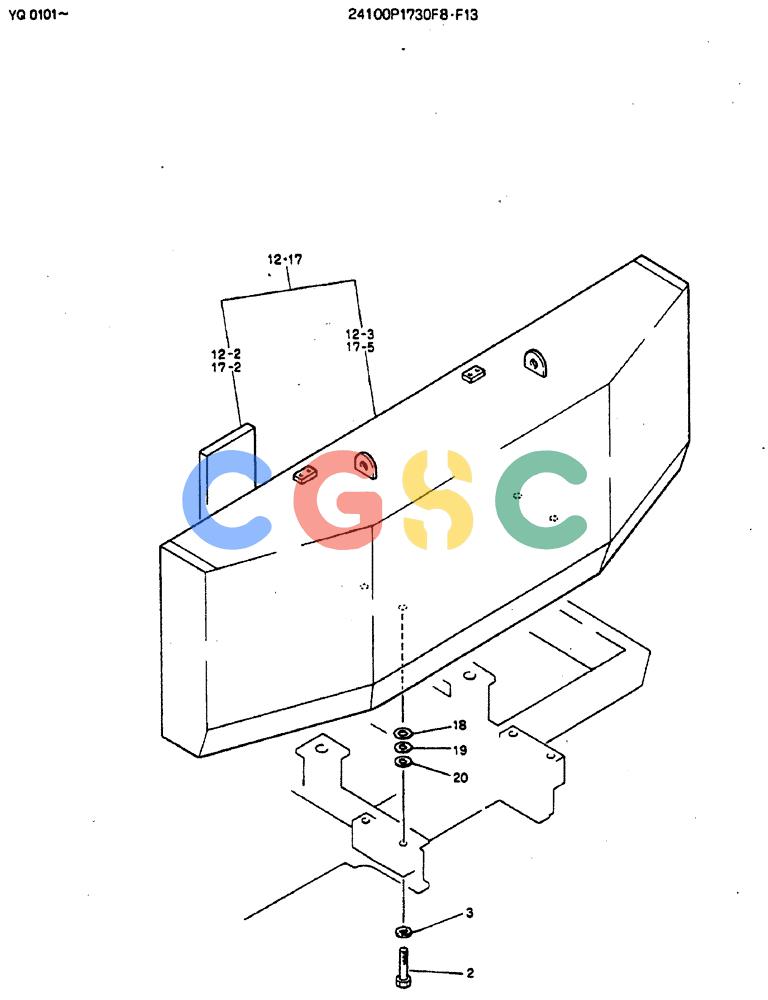

神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (01-002) - COUNTER-WEIGHT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
530 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1730F8 | [1] | COUNTER-WEIGHT ASSY, Serial Range: YQ0101-YQ0305 | |
| . . | 24100P1730F13 | [1] | COUNTER-WEIGHT ASSY, Start Serial: YQ0306 | |
| 2. | ZS13C24180 | [4] | CAP | KOB |
| 3. | ZW13H24000 | [4] | WASHER | KOBID 24 x OD 39 x Th 4.0mm |
| 12. | 24100P1731F2 | [1] | COUNTER-WEIGHT ASSY, Serial Range: YQ0101-YQ0305 | |
| 12-2. | 2479T1722 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 12-3. | 2422J2008 | [1] | COUNTER-WEIGHT | |
| 17. | 24100P1731F4 | [1] | COUNTER-WEIGHT ASSY, Start Serial: YQ0306 | |
| 17-2. | 2479T1722 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 17-5. | 2422J2008D2 | [1] | COUNTER-WEIGHT | |
| 18. | 2418T12306D2 | [2] | SHIM | KOB |
| 19. | 2418T12306D3 | [2] | SHIM | KOB |
| 20. | 2418T12306D6 | [2] | SHIM | KOB |
