神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (02-003) - PLATE ASSY, FLOOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
193 次

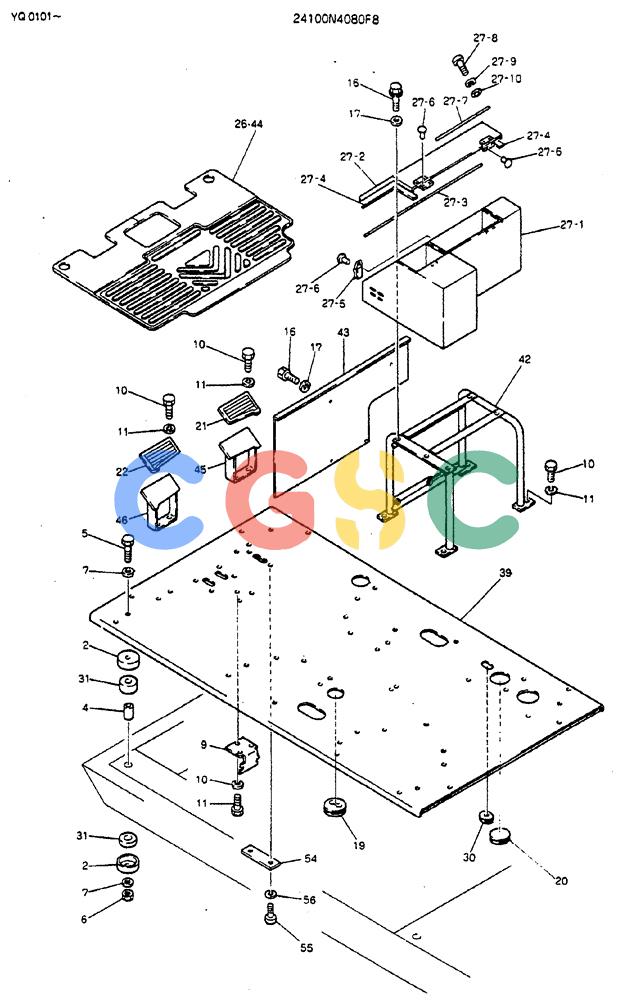

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4080F8 | [1] | PLATE ASSY, FLOOR | |
| 2. | 2414T2855 | [12] | COVER | KOB |
| 4. | 2418T9226D7 | [6] | SPACER | KOB |
| 5. | ZS18C16100 | [6] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| 6. | ZN32C16015 | [6] | NUT | KOBM16x2.0mm |
| 7. | R16T0152D2 | [12] | WASHER | KOBFlat -- ID 17 x OD 30 x Th 3.2mm |
| 9. | 2416P8622 | [1] | BRACKET | KOB |
| 10. | ZS18C10025 | [11] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 11. | ZW26X10000 | [11] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 16. | ZM11C06016 | [9] | BOLT | KOB |
| 17. | ZW16X06000 | [9] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 19. | 2420Z699 | [1] | GROMMET | KOB |
| 20. | 2420Z1189 | [1] | GROMMET | KOB |
| 26. | 2427U745 | [1] | MAT | KOB, Start Serial: YQ0306 |
| 27. | 24100P1771F1 | [1] | CASE | KOBBOX |
| 27-1. | 2421N192 | [1] | BOX | |
| 27-2. | 2414P6143 | [1] | COVER | KOB |
| 27-3. | 2416Z503D5 | [1] | RUBBER, CUSHION | |
| 27-4. | 2416Z503D1 | [2] | RUBBER, CUSHION | |
| 27-5. | 2421Z295 | [1] | LOCK | KOB |
| 27-6. | 2420Z1192 | [6] | RIVET | KOBRIVET |
| 27-7. | 2418T17953 | [1] | PLATE | |
| 27-8. | ZS31C08016 | [4] | CAPSCREW,Phillips Drive, Pan HD, M8 x 16mm | KOBSCREW M08x1.25x16mm |
| 27-9. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 27-10. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 30. | 2420Z1217 | [1] | GROMMET | KOB |
| 31. | 2416Z539 | [12] | RUBBER SLEEVE | KOBCUSHION |
| 39. | 2427J1337 | [1] | PLATE, FLOOR | |
| 42. | 2416N3251D2 | [1] | STAND, BOX | |
| 43. | 2414P3977D2 | [1] | COVER | |
| 44. | 2427U555 | [1] | FLOOR MAT | KOB, Serial Range: YQ0101-YQ0305 |
| 45. | 2429P563 | [1] | STEP | |
| 46. | 2429P564 | [1] | STEP | |
| 54. | 2418T17209 | [1] | PLATE | PLATE |
| 55. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 56. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
