神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (02-004) - SEAT ASSY- 24100N4136F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
804 次

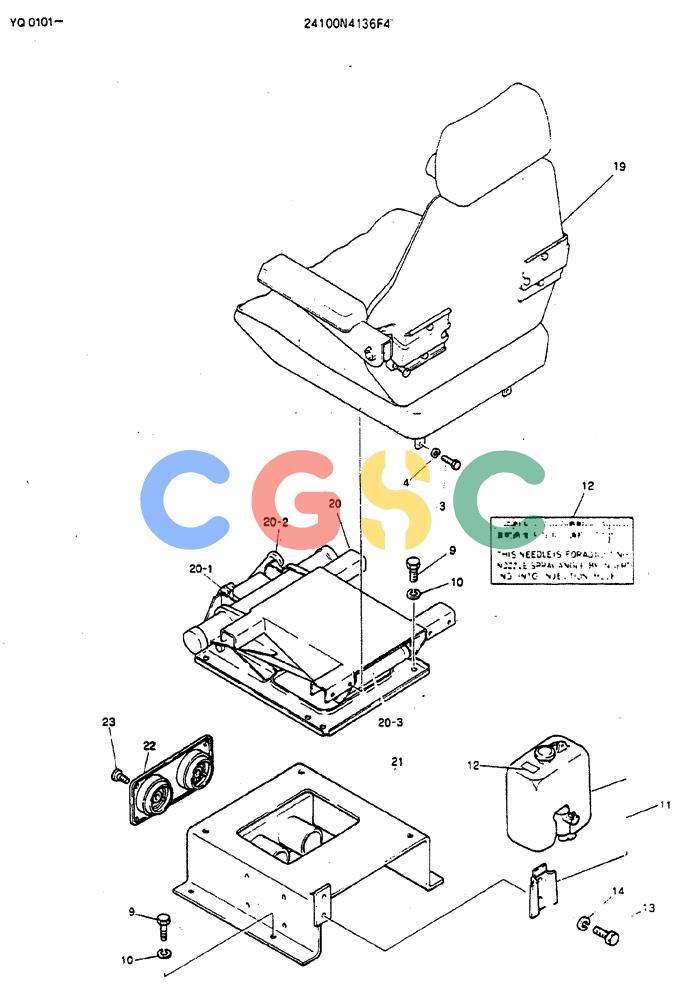

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4136F4 | [1] | SEAT ASSY | |
| 3. | ZS18C08016 | [8] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 4. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 9. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 10. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 11. | 24100U157F1 | [1] | TANK | KOB Superseded by part number: YT54C00003F1 |
| 12. | 2432Z327 | [1] | PLATE | KOB |
| 13. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 14. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 19. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT ASSY, SEE FIGURE 02-005 |
| 20. | 2448U234F1 | [1] | SUSPENSION | |
| 20-1. | 2448U234S1 | [1] | KNOB | KNOB |
| 20-2. | 2448U234S2 | [1] | HANDLE | KOB |
| 20-3. | 2448U234S3 | [1] | DAMPER | KOBDUMPER |
| 21. | 2416J852 | [1] | STAND | KOB |
| 22. | 2416R231 | [1] | GRILLE | KOB |
| 23. | 2420Z1040 | [4] | SCREW | KOB |
