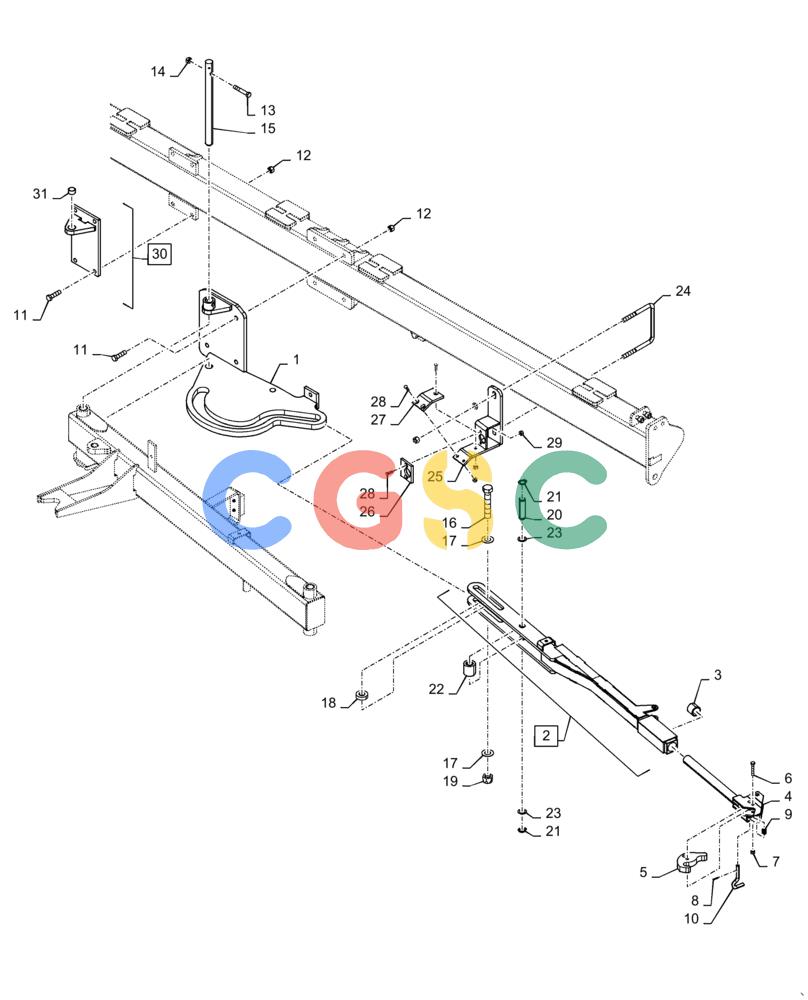

| 1. |
47455696
|
[1] |
MOUNT
|
SAS
Auger
|
| 2. |
47455778
|
[1] |
LINKAGE
|
SAS
Cam Arm, Incl 3
|
| 3. |
87686636
|
[2] |
BUSHING,1-1/2" ID x 1-3/4" OD x 1-1/2" Thk
|
SAS
|
| 4. |
47532859
|
[1] |
SLIDER
|
SAS
Deluxe Auger
|
| 5. |
47534242
|
[1] |
LATCH
|
SAS
Cam Arm
|
| 6. |
120070
|
[1] |
BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8
|
NH
|
| 7. |
100037
|
[1] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 8. |
1319740C2
|
[1] |
PIN,3mm OD x 20mm OAL
|
IH
|
| 9. |
87000071
|
[1] |
COMPRESSION SPRING,47.2mm Free Length
|
GI
Superseded by part number: 540815R2
|
| 10. |
87455
|
[1] |
SLOTTED PIN,1/8" OD x 1" OAL
|
WIN
Superseded by part number: 84818466
|
| 11. |
323866
|
[8] |
BOLT,Hex, M16 x 2.0 x 60mm, Cl 8.8
|
NH
Superseded by part number: 120091
|
| 12. |
146988
|
[8] |
LOCK NUT,M16 x 2, Cl 8
|
BER
Superseded by part number: 86000441
|
| 13. |
87301770
|
[1] |
BOLT,Hex, 9/16" - 12 x 3-1/4", Gr 8
|
SAS
|
| 14. |
6035
|
[1] |
LOCK NUT,Hex, 9/16" - 12, Gr 8
|
SAS
Superseded by part number: 280328
|
| 15. |
84557601
|
[1] |
PIN,31.75mm OD x 442mm L
|
SAS
|
| 16. |
280346
|
[1] |
BOLT,Hex, 1"-8 x 5 1/2", G5
|
GI
Superseded by part number: 413-1688
|
| 17. |
84534942
|
[1] |
WASHER,25.8mm ID x 51mm OD x 14mm Thk
|
SAS
Auger Cam Guide
|
| 18. |
87613202
|
[4] |
WASHER,1.03" ID x 2" OD x 0.06" Thk
|
BRR
|
| 19. |
280286
|
[1] |
NUT,1"-8, GB
|
NH
|
| 20. |
87418581
|
[1] |
PIN,25.4mm OD x 104mm L
|
SAS
|
| 21. |
6392
|
[2] |
SNAP RING,#98, Ext
|
SAS
Superseded by part number: 87019495
|
| 22. |
84573233
|
[1] |
BUSHING
|
SAS
Cam Follower
|
| 23. |
86624169
|
[2] |
WASHER,1.03" ID x 1.5" OD x 0.06" Thk
|
FOR
|
| 24. |
47534143
|
[1] |
U-BOLT,M16 x 2, Square, 180mm W x 175mm L
|
SAS
|
| 25. |
47614289
|
[1] |
SUPPORT
|
SAS
Cam Arm Rest
|
| 26. |
47614291
|
[1] |
SLIDER
|
SAS
Cam Arm
|
| 27. |
47614297
|
[1] |
SLIDER
|
SAS
Cam Arm
|
| 28. |
300351
|
[5] |
SCREW,Hex Flat Hd, M8 x 30, 4.8
|
PA
|
| 29. |
68841
|
[5] |
NUT,M8 x 1.25, Cl 8
|
BER
Superseded by part number: 16104414
|
| 30. |
47455683
|
[1] |
MOUNT
|
SAS
Inner Hydraulic Cylinder, Incl 31
|
| 31. |
87500592
|
[1] |
BUSHING,25.5mm ID x 31.84mm OD x 19.05mm L
|
SAS
|
