纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (248-17[1]) - GUARD INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
521 次

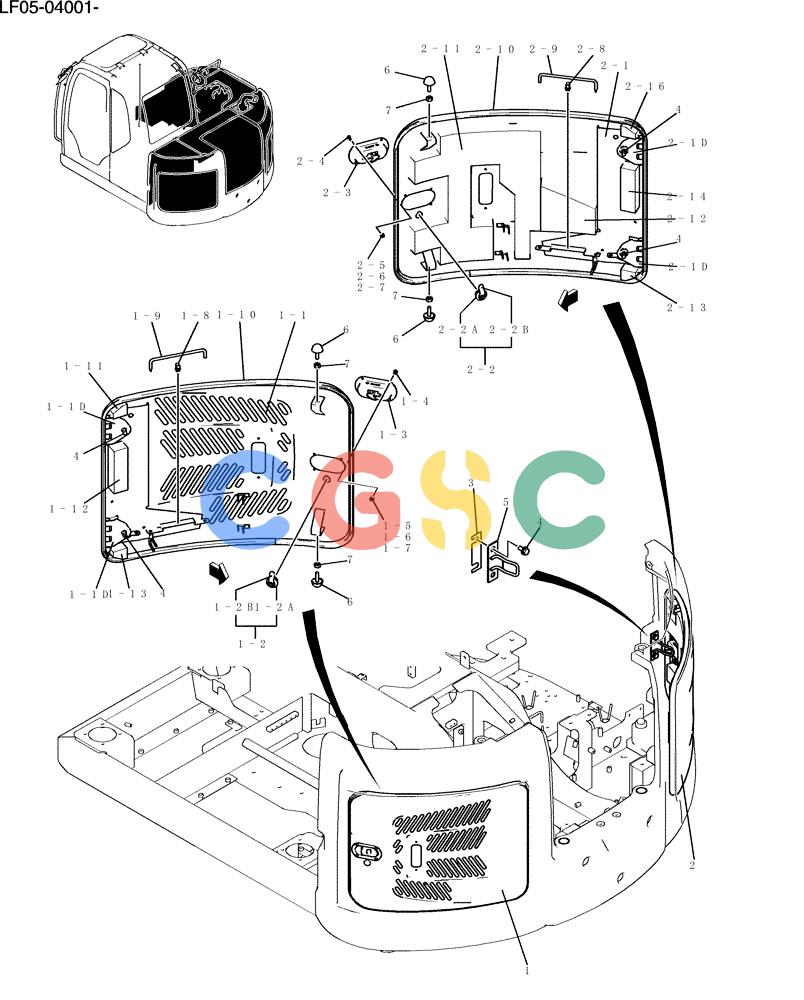

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF21C00010F1 | [1] | Guard Instal | |
| 1. | LF21C01161F1 | [1] | COVER | KOBAssy, L.H |
| 1-1. | LF21C01162P1 | [1] | COVER | KOB, Serial Range: LF05-04001-LF05-04102 Superseded by part number: LF21C01162P2 |
| . . | LF21C01162P2 | [1] | COVER | KOB, Start Serial: LF05-04103 |
| 1-1D. | YF21C01331P1 | [2] | HINGE | KOB |
| 1-2. | PM21C01268F1 | [1] | LOCK | KOBAssy |
| 1-2A. | YR22C01025P2 | [1] | LOCK | KOB |
| 1-2B. | PM21C01269P1 | [1] | PLATE | KOB |
| 1-3. | YF21C01566P1 | [1] | LOCK | KOB |
| 1-4. | PH22C01023P1 | [4] | BOLT | KOB |
| 1-5. | ZW16H05000 | [4] | WASHER | KOB |
| 1-6. | ZW26X05000 | [4] | LOCK WASHER | KOBLock |
| 1-7. | ZN18C05004 | [4] | NUT | KOB |
| 1-8. | YR21C01123P1 | [1] | COLLAR | KOBClip |
| 1-9. | YF21C01335P1 | [1] | STAY | KOB |
| 1-10. | YT21C01039DU | [1] | WEATHERSTRIP | KOB |
| 1-11. | YT21C01886P1 | [1] | RUBBER SEAL | KOB |
| 1-12. | YT21C01937P1 | [1] | RUBBER SLEEVE | KOBRubber |
| 1-13. | YT21C01887P1 | [1] | RUBBER SEAL | KOB |
| 2. | YT21C01689F1 | [1] | COVER | KOBAssy, R/H |
| 2-1. | YT21C01919P1 | [1] | COVER | KOB |
| 2-11. | YT21C01924P1 | [1] | INSULATION | KOBInsulation |
| 2-12. | YT21C01923P1 | [1] | Insulation | |
| 3. | YF21C01782D1 | [4] | SHIM | KOB |
| 4. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBSems |
| 5. | YF21C01551P1 | [2] | STRIKER PLATE | KOB Superseded by part number: YF21C01802P1 |
| 6. | YN21C03212P1 | [4] | STOP | KOBStopper |
| 7. | ZN18F10008 | [4] | NUT | KOB |
