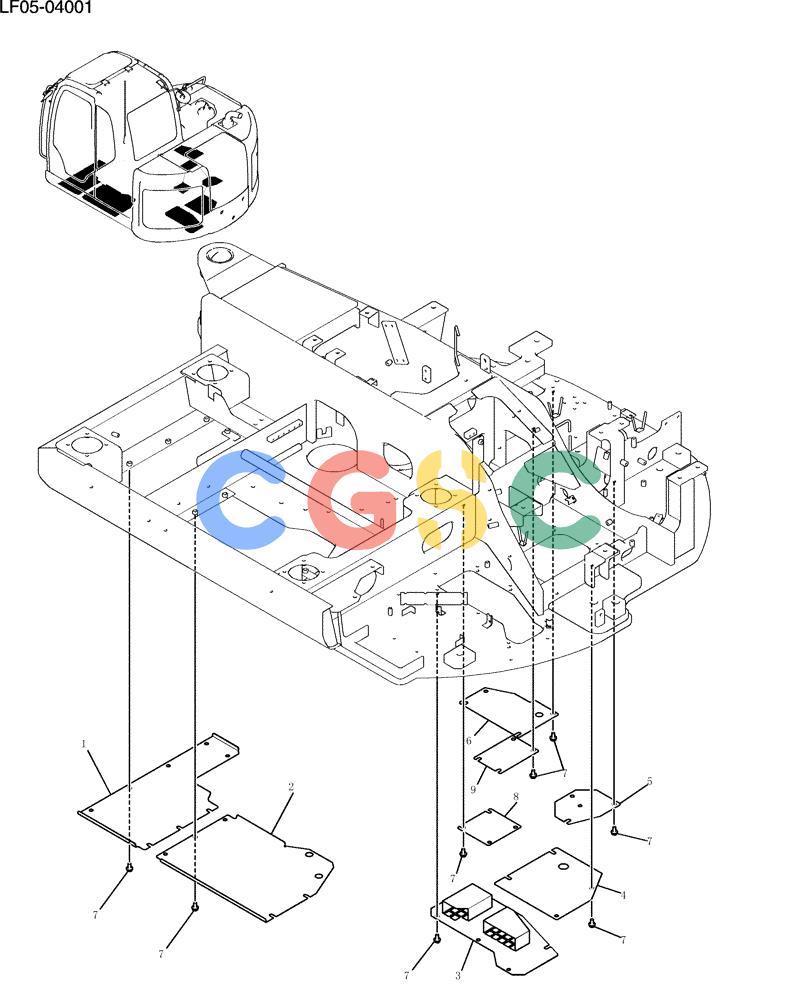

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (250-17[1]) - COVER ASSY, UNDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
198 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF24C00003F1 | [1] | Cover Assy, Under | |
| 1. | LF24C01010P1 | [1] | COVER | KOB |
| 2. | LF24C01011P1 | [1] | COVER | KOB |
| 3. | YT24C01048P1 | [1] | COVER | KOBCover |
| 4. | YT24C01045P1 | [1] | COVER | KOBCover |
| 5. | YT24C01041P1 | [1] | COVER | KOBCover |
| 6. | YT24C01042P1 | [1] | COVER | KOBCover |
| 7. | ZM73C12025 | [38] | BOLT,M12x25mm - Course Thread | KOBSems |
| . . | LF24C01007P2 | [1] | COVER | KOBCover, Start Serial: LF05-04133 |
| 9. | LF24C01008P1 | [1] | COVER | KOBCover |
