神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (02-006[02]) - GUARD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
656 次

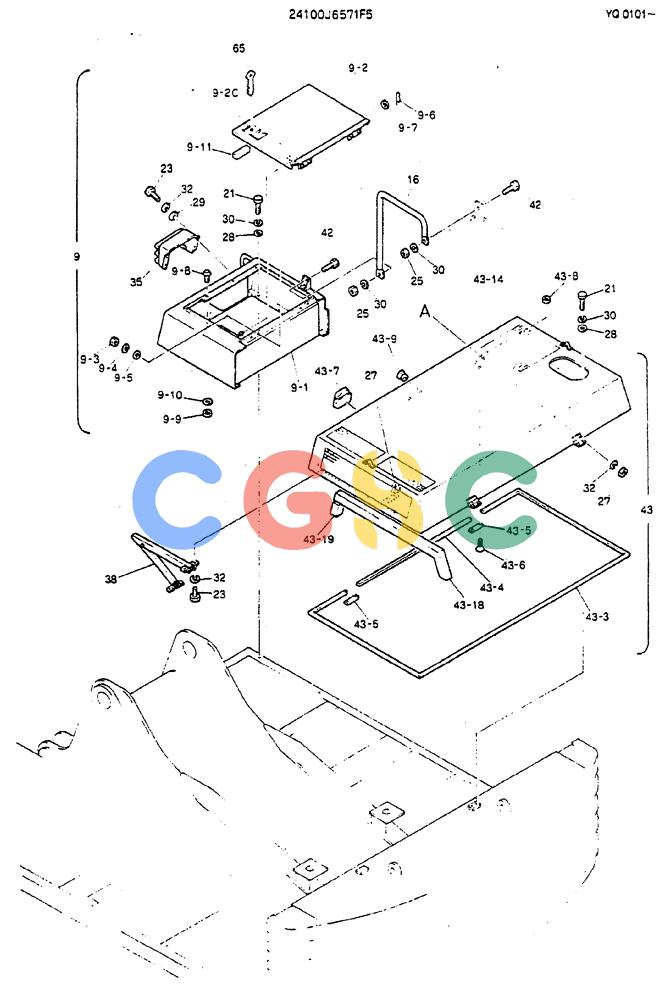

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6571F5 | [1] | GUARD ASSY | |
| 5. | 2414P4111 | [1] | COVER | COVER |
| 6. | 2414P4181 | [1] | COVER | |
| 7. | 2414P4113 | [1] | COVER | COVER |
| 8. | 2414P4180 | [1] | COVER | COVER |
| 9. | 24100N4123F1 | [1] | PUMP ASSY, CONNECT COVER, BATTERY | PUMP ASSY, CONNECT COVER, BATTERY |
| 9-1. | 2421N182 | [1] | BOX | KOB |
| 9-2. | 2414P4175 | [1] | COVER | KOB |
| 9-2C. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 9-3. | ZN12C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 9-4. | ZW16X12000 | [4] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 9-5. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 9-7. | ZW11X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 9-8. | 2416T6682 | [3] | RUBBER BAND | KOBCUSHION |
| 9-9. | ZN31C05005 | [3] | NUT | KOB |
| 9-10. | ZW16P05000 | [3] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 9-11. | 2416Z579D1 | [1] | CUSHION | KOB |
| 10. | 2414P4182 | [1] | COVER | KOB |
| 13. | 2416N3334 | [1] | BRACKET | BRACKET |
| 15. | 2416T13007 | [6] | BRACKET | KOB |
| 16. | 2416T12935 | [1] | RIGID TUBE | KOB |
| 17. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 18. | 2427R302D2 | [1] | CATCH | KOB |
| 19. | 2416T13435 | [2] | RUBBER | KOBCUSHION |
| 20. | 2418T12346 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 21. | ZS18C12025 | [45] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 22. | ZS18C10025 | [23] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 23. | ZS18C08020 | [20] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 24. | 2416T6289D2 | [3] | STAY | KOBSTAY |
| 25. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 26. | ZN18C10008 | [12] | NUT | KOBM10x1.50mm |
| 27. | ZN18C08007 | [16] | NUT | KOBM08x1.25mm |
| 28. | 2418T10357 | [52] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 29. | ZW16X08000 | [12] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 30. | ZW26X12000 | [50] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 31. | ZW26X10000 | [35] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 32. | ZW26X08000 | [20] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 33. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 34. | 2419R9D3 | [3] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 35. | 2414P3893 | [1] | COVER | KOB |
| 36. | 2416N3307 | [1] | BRACKET | BRACKET |
| 38. | 2416P8732 | [1] | STAY | KOB |
| 39. | 2416N3328 | [1] | BRACKET | KOB |
| 40. | ZS18C12030 | [9] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 41. | 2421T218F1 | [1] | BOX ASSY | |
| 41-1. | 2421N175 | [1] | BOX | |
| 41-2. | 2416Z512 | [1] | INSULATOR | KOB |
| 42. | ZS18C12050 | [1] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 43. | 2414P4176F2 | [1] | COVER ASSY | KOB |
| 43-3. | 2416Z510 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 43-4. | 2416Z486D3 | [1] | CUSHION | KOB |
| 43-5. | 2416Z435D2 | [2] | RUBBER SLEEVE | KOBCUSHION |
| 43-6. | ZS41C05025 | [4] | SCREW,M5 x 25mm | KOBM05x0.8x25mm |
| 43-7. | 2406Z304 | [1] | HANDLE | KOB |
| 43-8. | ZN11C05004 | [4] | NUT M05x0.8mm | NUT M05x0.8mm |
| 43-9. | 2420R429D14 | [2] | GROMMET | KOB |
| 43-14. | 2414J1094 | [1] | COVER | COVER |
| 43-18. | 2416Z597 | [1] | INSULATOR | KOB |
| 43-19. | 2416Z596 | [1] | INSULATOR | KOB |
| 48. | 2414T3000F1 | [1] | COVER ASSY | KOB |
| 48-1. | 2414P4179 | [1] | COVER | COVER |
| 48-2. | 2416Z487D1 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 50. | 2416J850 | [1] | BRACKET | KOB |
| 51. | 2414T3002F1 | [1] | COVER ASSY | COVER ASSY |
| Sl-1. | 2414P6172 | [1] | COVER | COVER |
| 51-2. | 2416Z530 | [1] | INSULATOR | INSULATOR |
| 51-3. | 2416Z525 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 51-4. | 2416Z547 | [1] | INSULATOR RUBBER, CUSHION | INSULATOR RUBBER, CUSHION |
| 52. | 2416N3422 | [1] | BRACKET | KOB |
| 55. | 2414T2885F3 | [1] | COVER ASSY | KOB |
| 55-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 55-6. | 2414P6214 | [1] | COVER | COVER |
| 55-6C. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 56. | 2414T2886F3 | [1] | COVER ASSY | KOB |
| 56-3. | 2416Z485D1 | [1] | CUSHION | KOB |
| 56-5. | 2414P6215 | [1] | COVER | COVER |
| 56-5C. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 57. | 2416Z263D3 | [1] | SPRING SEAT | KOBSEAT RUBBER |
| 65. | 2420Z1030D2 | [1] | KIT | KOBPLATE Superseded by part number: PM50S01001P1 |
