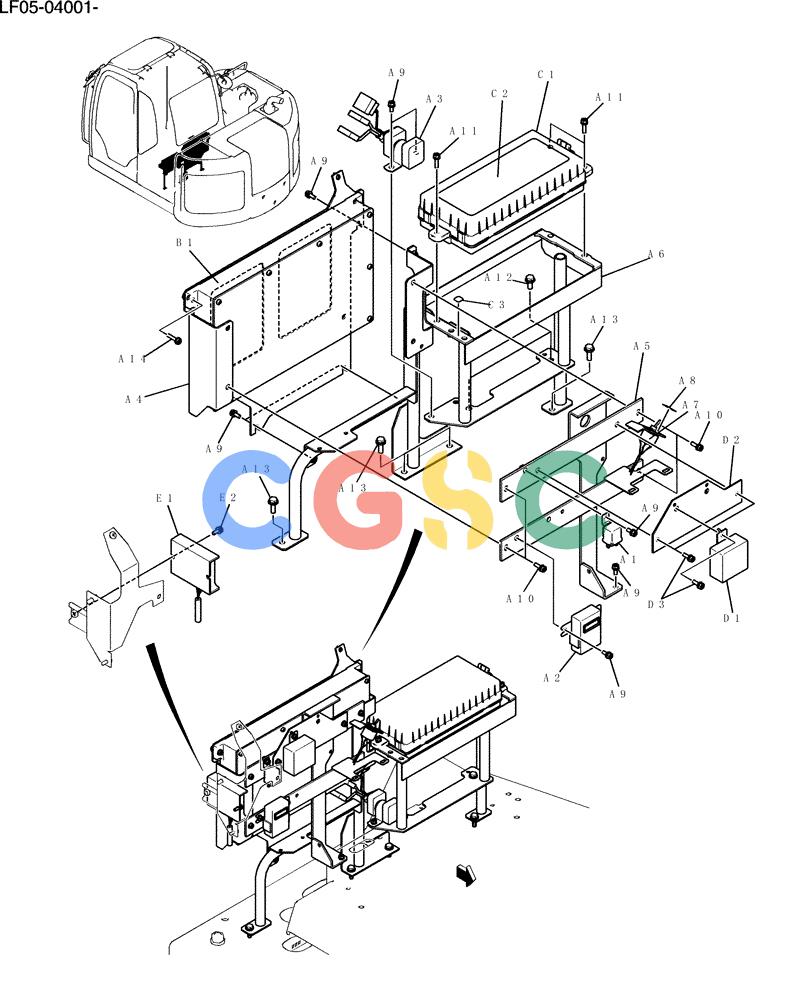

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (270-17[1]) - CONTROLLER INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
792 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT22E00057F1 | [1] | Controller Instal | |
| . . | YT22E00059F1 | [1] | Controller Instal | |
| A4. | YT22E01093P1 | [1] | Support, Serial Range: LF05-04001-LF05-04132 | |
| . . | YT22E01093P2 | [1] | Support, Start Serial: LF05-04133 | |
| A5. | YT22E01152P1 | [1] | Support | |
| A6. | YT22E01100P2 | [1] | Support | |
| A7. | YN50S00047P1 | [1] | TOGGLE SWITCH | KOB |
| A8. | YN22M01014P1 | [1] | LABEL | KOB |
| A9. | ZM61C06016 | [9] | BOLT | KOBSems |
| A10. | ZM61C06020 | [4] | BOLT | KOBSems |
| A11. | ZM61C06025 | [3] | BOLT | KOBSems |
| A12. | ZM73C08020 | [2] | BOLT,M8x20mm - Course Thread | KOBSems |
| A13. | ZM73C08025 | [4] | BOLT,M8x25mm - Course Thread | KOBSems |
| A14. | YT22E01134P1 | [4] | CAPTIVE WASHER SCREW | KOBCap |
| A1. | VI5825500300 | [1] | RELAY | KOB |
| A2. | VI8980305740 | [1] | CONTROLLER | KOB |
| A3. | VI1825530391 | [1] | RELAY | KOB |
| . . | YT22E00063F2 | [1] | Controller Assy, Serial Range: LF05-04001-LF05-04152 | |
| . . | YT22E00063F3 | [1] | ECU | KOBController Assy, Start Serial: LF05-04153 Superseded by part number: YT22E00063F5 |
| B1. | YN22E00214F1 | [1] | CONTROL | KOBAssy Superseded by part number: YN22E00425F1 |
| B3. | YT22E00063S003 | [1] | Software [ NOT SHOWN ], Serial Range: LF05-04001-LF05-04152 | |
| . . | YT22E00063S004 | [1] | Software [ NOT SHOWN ], Start Serial: LF05-04153 | |
| . . | YT24E00011F1 | [1] | FUSE BOX | KOBRelay Box Assy |
| C1. | YY24E00008F2 | [1] | BOX, FUSE | KOBRelay Assy (See Fig No. 272-18-1) |
| C2. | YT73E01013P2 | [1] | DECAL | KOBLabel |
| C3. | YT73E01014P1 | [1] | DECAL | KOBLabel |
| . . | YT24E00008F1 | [1] | Relay Assy | |
| D1. | YY24S00001P2 | [1] | RELAY | KOBFlasher |
| D2. | YT22E01121P1 | [1] | Support | |
| . . | YB77S00001F1 | [1] | Converter Assy | |
| E1. | YT77S00001P1 | [1] | CONVERTER,24V In - 12V Out - 2.5A | KOB Superseded by part number: YT77S00011P1 |
