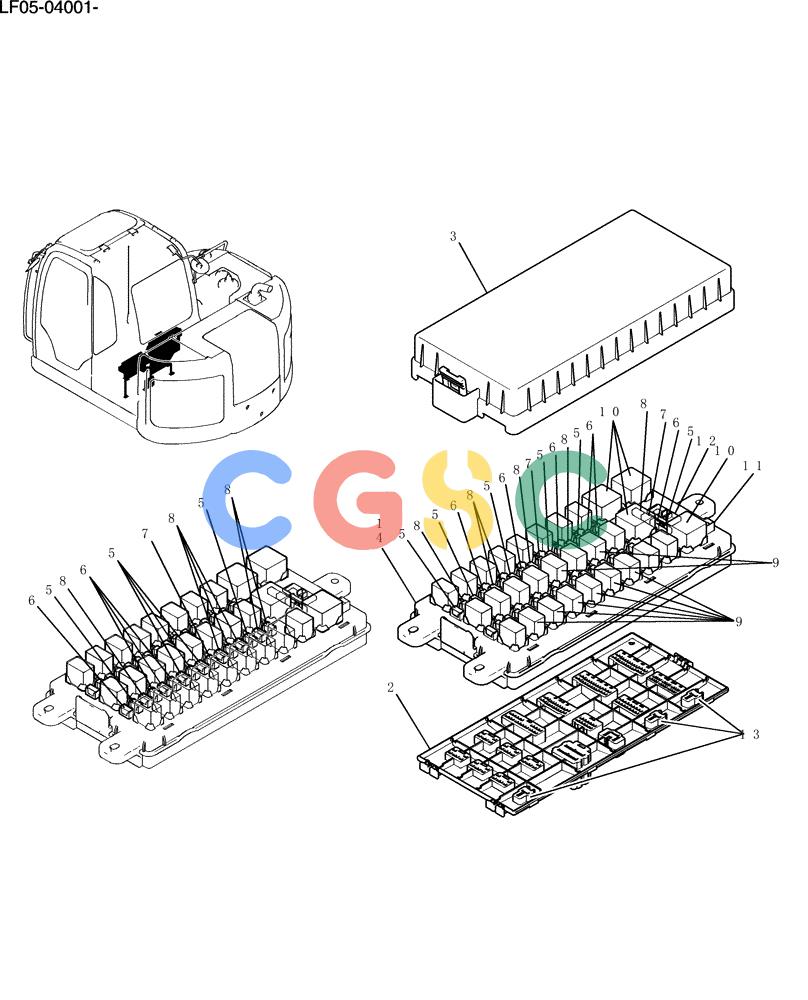

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (272-18[1]) - RELAY BOX ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
284 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY24E00008F2 | [1] | BOX, FUSE | KOBRelay Assy |
| 1. | YN24E00016S001 | [1] | BOX | SMHousing |
| 2. | YN24E00016S002 | [1] | BOX | SMHousing |
| 3. | YN24E00016S003 | [1] | FUSE BOX | SMCover |
| 4. | YN24E00016S004 | [1] | PRINTED CIRCUIT BOARD | SM Superseded by part number: YN24E00016F3 |
| 5. | YN24E00016S005 | [11] | FUSE,5amp | SM(5a) |
| 6. | YN24E00016S006 | [10] | FUSE,10amp | SM(10a) |
| 7. | YN24E00016S007 | [3] | FUSE,15amp | SM(15a) |
| 8. | YN24E00016S008 | [12] | FUSE,20amp | SM(20a) |
| 9. | YN24S00010P1 | [8] | RELAY | KOB |
| 10. | YN24S00012P2 | [4] | RELAY,24V | SM |
| 11. | YN24E00016S011 | [1] | HANDLE | SM |
| 12. | YN24E00016S012 | [1] | WIRE CONNECTOR | SM |
| 13. | YN24E00016S013 | [3] | MULTIPOLE CONNECTOR | SM |
