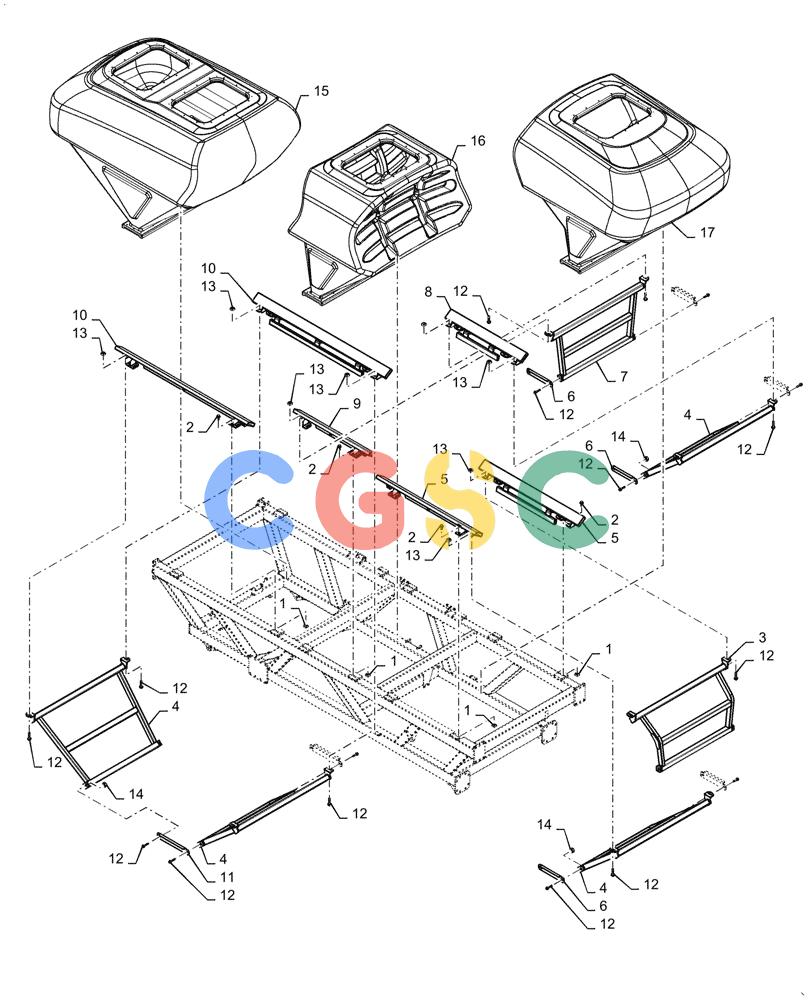

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (77.100.AC[07]) - TANK/CRADLE 555, 580 BUSHEL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47642012
|
[24] |
FASTENER
|
SAS
T-Nut M16
|
| 2. |
47427860
|
[24] |
BOLT,Hex, M16 x 35mm, Cl 8.8
|
SAS
|
| 3. |
47633830
|
[1] |
SUPPORT
|
SAS
Tank Cradle Bent Black
|
| 4. |
47633828
|
[4] |
SUPPORT
|
SAS
Tank Cradle Black
|
| 5. |
47632662
|
[2] |
SIDE RAIL
|
SAS
190 Bushel Black
|
| 6. |
47638718
|
[4] |
SUPPORT
|
SAS
Cradle Lower Black Superseded by part number: 47903881
|
| 7. |
47633833
|
[1] |
SUPPORT
|
SAS
Cradle Rail Black
|
| 8. |
47632866
|
[1] |
SIDE RAIL
|
SAS
Cradle Rail 105 Bushel Black
|
| 9. |
47632868
|
[1] |
SIDE RAIL
|
SAS
Cradle Rail 105 Bushel Black
|
| 10. |
47632864
|
[2] |
SIDE RAIL
|
SAS
260 Bushel Black
|
| 11. |
47638720
|
[2] |
SUPPORT
|
SAS
Lower Black Superseded by part number: 47903884
|
| 12. |
86511852
|
[24] |
BOLT,Hex Flg, M20 x 50, 8.8
|
WIN
|
| 13. |
87535798
|
[12] |
SQUARE NUT
|
BUR
|
| 14. |
9847024
|
[12] |
NUT,M20, Cl 10
|
WIN
|
| 15. |
47451563
|
[1] |
TANK
|
SAS
260 Bushel
|
| 16. |
47451560
|
[1] |
TANK
|
SAS
105 Bushel
|
| 17. |
47451562
|
[1] |
TANK
|
SAS
190 Bushel
|
