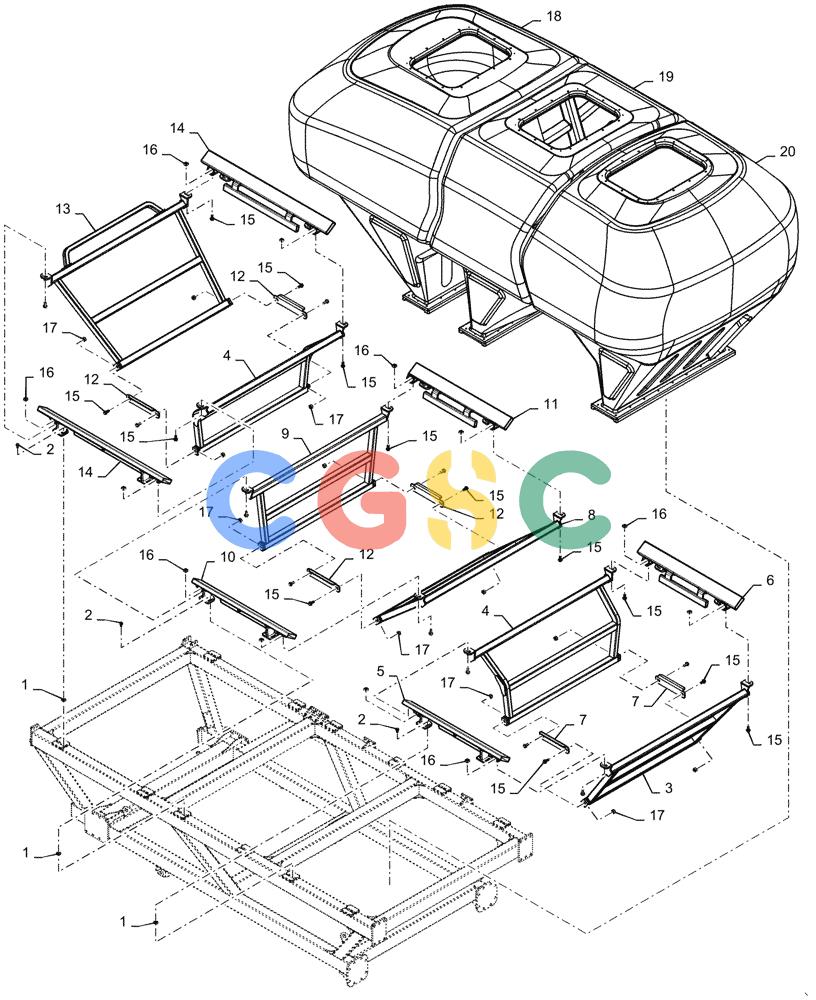

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (77.100.AC[08]) - TANK CRADLE 760 BUSHEL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
362 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47642012
|
[24] |
FASTENER
|
SAS
Y-Nut M16
|
| 2. |
47427860
|
[24] |
BOLT,Hex, M16 x 35mm, Cl 8.8
|
SAS
|
| 3. |
47561881
|
[1] |
SUPPORT
|
SAS
Tank Cradle Black
|
| 4. |
47561871
|
[2] |
SUPPORT
|
SAS
Cradle Bent Black
|
| 5. |
47632896
|
[1] |
SIDE RAIL
|
SAS
Cradle Right Small Black
|
| 6. |
47637591
|
[1] |
SIDE RAIL
|
SAS
Cradel Left Small Black
|
| 7. |
47638722
|
[2] |
SUPPORT
|
SAS
Lower Black Superseded by part number: 47903883
|
| 8. |
47561651
|
[1] |
SUPPORT
|
SAS
Tank Cradle Black
|
| 9. |
47561653
|
[1] |
SUPPORT
|
SAS
Tank Cradle Black
|
| 10. |
47632868
|
[1] |
SIDE RAIL
|
SAS
Cradle 105 Bushel Black
|
| 11. |
47632866
|
[1] |
SIDE RAIL
|
SAS
Cradle 105 Bushel Black
|
| 12. |
47638718
|
[4] |
SUPPORT
|
SAS
Cradle Lower Black Superseded by part number: 47903881
|
| 13. |
47561860
|
[1] |
SUPPORT
|
SAS
Tank Cradle Black
|
| 14. |
47632662
|
[2] |
SIDE RAIL
|
SAS
Cradle 190 Bushel Black
|
| 15. |
86511852
|
[24] |
BOLT,Hex Flg, M20 x 50, 8.8
|
WIN
|
| 16. |
87535798
|
[12] |
SQUARE NUT
|
BUR
|
| 17. |
9847024
|
[12] |
NUT,M20, Cl 10
|
WIN
|
| 18. |
47451569
|
[1] |
TANK
|
SAS
325 Bushel
|
| 19. |
47451565
|
[1] |
TANK
|
SAS
170 Bushel
|
| 20. |
47451566
|
[1] |
TANK
|
SAS
230 Bushel
|
