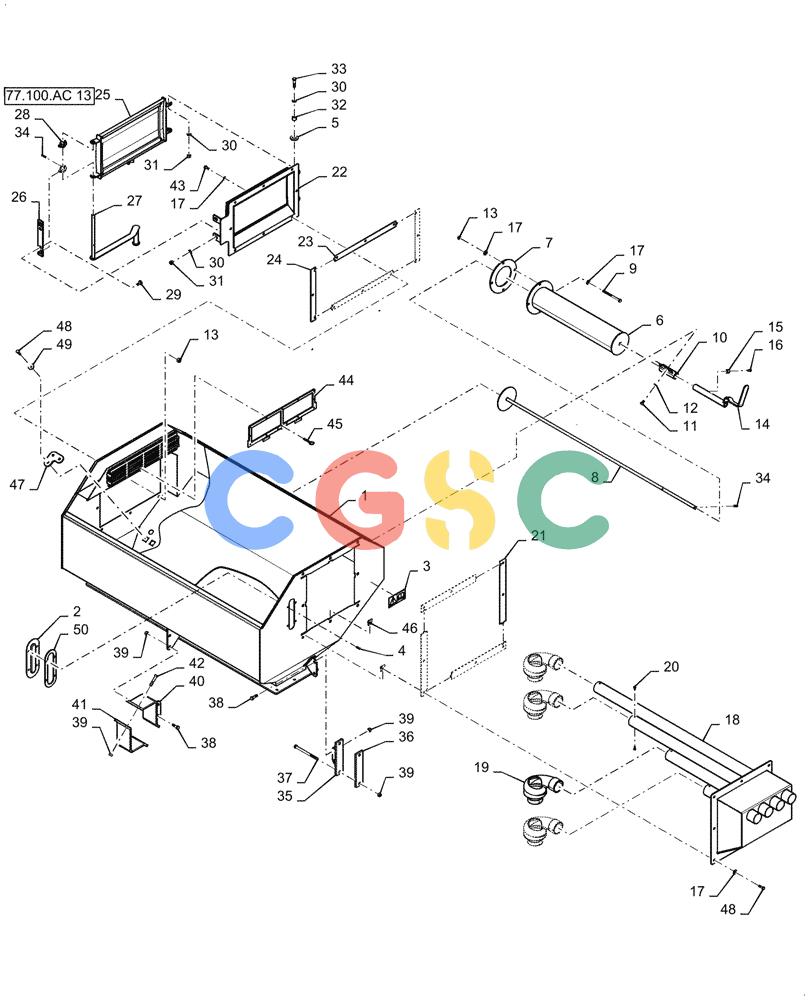

| 1. |
47817421
|
[1] |
TANK
|
SAS
Auxilary 25 Bushel Black
|
| 2. |
5186
|
[1] |
SIGHTGLASS
|
FLX
Tank
|
| 3. |
47358801
|
[1] |
CAUTION DECAL
|
SAS
ISO
|
| 4. |
8670
|
[4] |
RIVET,Pop, 3/16" OD x 3/4" L
|
FLX
|
| 5. |
87366
|
[2] |
WASHER,0.94" ID x 1.75" OD x 0.13" Thk
|
GI
|
| 6. |
47732571
|
[1] |
DIFFUSER
|
SAS
Aux Tank Black
|
| 7. |
47732561
|
[1] |
SEAL
|
SAS
Diffuser
|
| 8. |
47732586
|
[1] |
VALVE BODY
|
SAS
Dust Short Black
|
| 9. |
86508575
|
[4] |
BOLT,Hex, M10 x 130mm, Cl 8.8
|
NH
|
| 10. |
47732581
|
[1] |
SUPPORT
|
SAS
Exhaust
|
| 11. |
120041
|
[2] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 12. |
86511323
|
[2] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 13. |
8475948
|
[14] |
NUT,M10 x 1.5, Cl 8
|
BER
Superseded by part number: 100037
|
| 14. |
47732576
|
[1] |
HANDLE
|
SAS
Exhaust
|
| 15. |
47888270
|
[1] |
SPACER
|
SAS
.332 OD x .25 ID
|
| 16. |
47894105
|
[1] |
SCREW
|
SAS
|
| 17. |
47598842
|
[24] |
WASHER
|
SAS
Sealing M10
|
| 18. |
47740488
|
[1] |
END PLATE
|
SAS
Auxiliary Tank
|
| 19. |
47735741
|
[4] |
SPOUT
|
SAS
Cyclonic Tank Fill
|
| 20. |
87019672
|
[8] |
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"
|
RAC
|
| 21. |
47848059
|
[4] |
SEAL
|
SAS
Aux Tank
|
| 22. |
47741672
|
[1] |
DOOR
|
SAS
Hatch
|
| 23. |
47687235
|
[2] |
SEAL
|
SAS
Aux Tank
|
| 24. |
47732590
|
[2] |
SEAL
|
SAS
Aux Tank
|
| 25. |
47687138
|
[1] |
LID
|
SAS
Tank Black
|
| 26. |
47687222
|
[1] |
DOOR
|
SAS
Tab Locking
|
| 27. |
47687220
|
[1] |
HANDLE
|
SAS
Latch
|
| 28. |
47687226
|
[2] |
LATCH
|
SAS
Lid Black
|
| 29. |
120044
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 30. |
86511324
|
[6] |
WASHER,13mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 31. |
100038
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 32. |
1254302C1
|
[2] |
BUSHING,13.5mm ID x 22.2mm OD x 16.7mm L
|
IH
|
| 33. |
9706702
|
[2] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
NH
|
| 34. |
14604271
|
[4] |
PIN,M6 x 32, Coiled
|
BAS
Superseded by part number: 87016673
|
| 35. |
47675226
|
[2] |
BRACKET
|
SAS
Tank Mount Black
|
| 36. |
47675221
|
[2] |
MOUNT
|
SAS
Tank Mount Black
|
| 37. |
380423
|
[4] |
BOLT,Hex, M12 x 1.75 x 170mm, Cl 8.8
|
WIN
|
| 38. |
300389
|
[6] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 39. |
118490
|
[14] |
NUT,M12 x 1.75, Cl 8
|
BER
Superseded by part number: 100038
|
| 40. |
47670795
|
[1] |
BRACKET
|
SAS
Cradle Support
|
| 41. |
47743556
|
[1] |
MOUNT
|
SAS
Plate Black
|
| 42. |
9706693
|
[4] |
BOLT,M12 x 60mm, Cl 8.8
|
NH
|
| 43. |
43139
|
[16] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 44. |
47871604
|
[1] |
SCREEN
|
SAS
Aux Tank Exhaust
|
| 45. |
47469474
|
[1] |
LOCK PIN
|
SAS
Quick
|
| 46. |
47769973
|
[8] |
CLIP
|
SAS
M10
|
| 47. |
47850186
|
[1] |
COVER
|
SAS
Pamel, Plare W/Seal
|
| 48. |
43140
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 49. |
140042
|
[1] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 50. |
47892934
|
[1] |
SEAL
|
SAS
View Port
|
