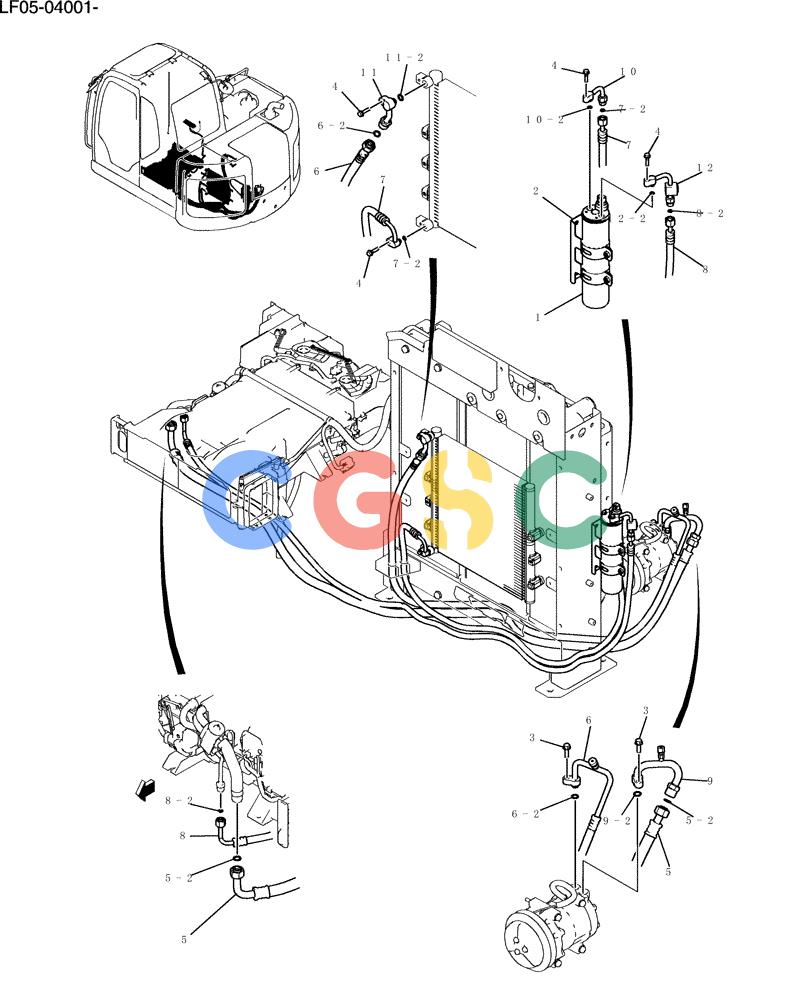

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (292-01[1]) - DRIER ASSY, AIR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
729 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT96V00004F1 | [1] | EVAPORATOR | KOBDrier Assy, Air |
| 1. | YN54S00041P1 | [1] | RECEIVER-DRIER | SM Superseded by part number: LQ54S00005P1 |
| 2. | YT20M01187P1 | [1] | BRACKET | KOBBracket |
| 3. | YT96V00001S009 | [2] | SCREW | KOBCap |
| 4. | YT96V00001S010 | [4] | CAP | KOBCap |
| 5. | YT20M01149F1 | [1] | HOSE ASSY. | KOB |
| 5-2. | 2445Z1604D5 | [2] | O-RING | KOB |
| 6. | YT20M01204F1 | [1] | HOSE ASSY. | KOB |
| 6-2. | 2445Z1604D4 | [2] | O-RING | KOB |
| 7. | YT20M01151F1 | [1] | HOSE ASSY. | KOB |
| 7-2. | 2445Z1604D6 | [2] | O-RING | KOB |
| 8. | YT20M01152F1 | [1] | HOSE ASSY. | KOB |
| 9. | YT20M01184F1 | [1] | TUBE | KOBAssy |
| 10. | LV20M01053F1 | [1] | TUBE,8.5 mm DIA x 50, 45 mm L | KOBAssy |
| 11. | YT20M01203F1 | [1] | TUBE | KOBAssy |
| 12. | YN20M01518F1 | [1] | RIGID TUBE | SMAssy |
