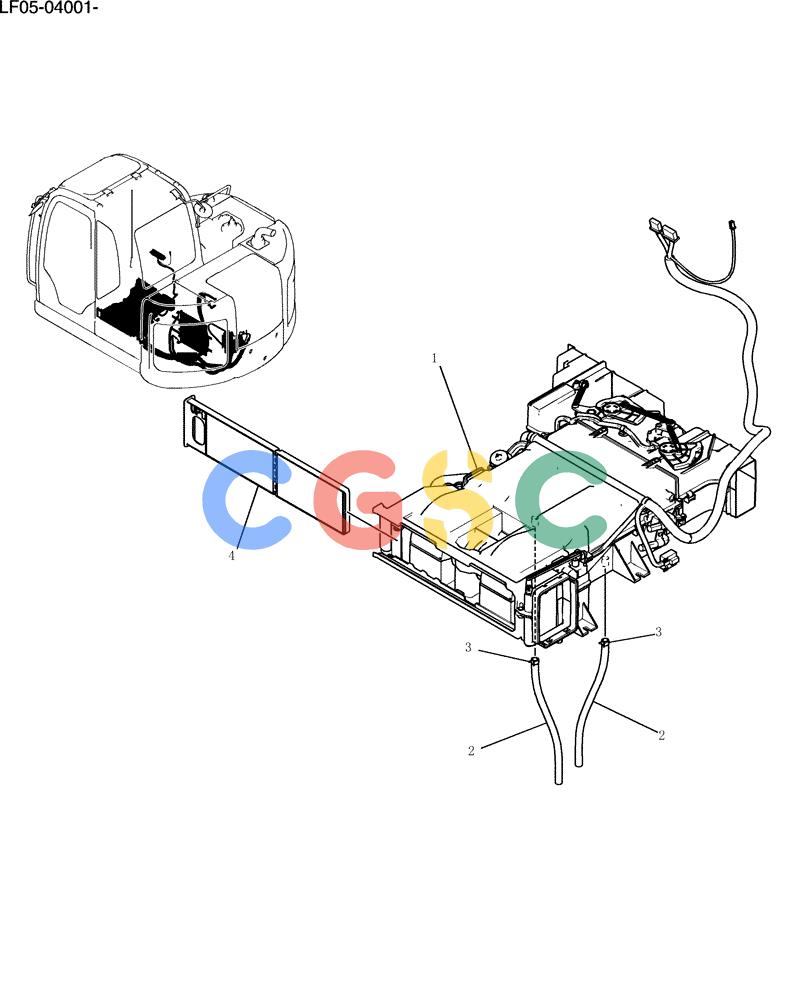

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (290-01[1]) - CONDITIONER ASSY, AIR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
609 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN20M00120F1 | [1] | AIR CONDITIONER | KOBAssy, Serial Range: LF05-04001-LF05-04259 Superseded by part number: YN20M00140F1 |
| . . | YN20M00123F1 | [1] | AIR CONDITIONER | KOBAssy, Start Serial: LF05-04260 Superseded by part number: YN20M00140F1 |
| 1. | YN20M00107F4 | [1] | AIR CONDITIONER | KOBAIR CONDITIONING Assy (See Fig No. 298-01-1), Serial Range: LF05-04001-LF05-04259 Superseded by part number: YT20M00022F4 |
| . . | YN20M00107F5 | [1] | AIR CONDITIONER | SMAIR CONDITIONING Assy (See Fig No. 298-01-1), Start Serial: LF05-04272 Superseded by part number: YT20M00022F4 |
| 2. | LC20M01014D2 | [2] | HOSE,11mm ID x 360mm L | KOB |
| 3. | 24100U1176S5 | [2] | CLAMP | KOB |
| 4. | YN50V01014P1 | [1] | CAB FILTER,124mm W x 491.5mm L | SMAir-con, (inner) Superseded by part number: YN50V01014P1P |
