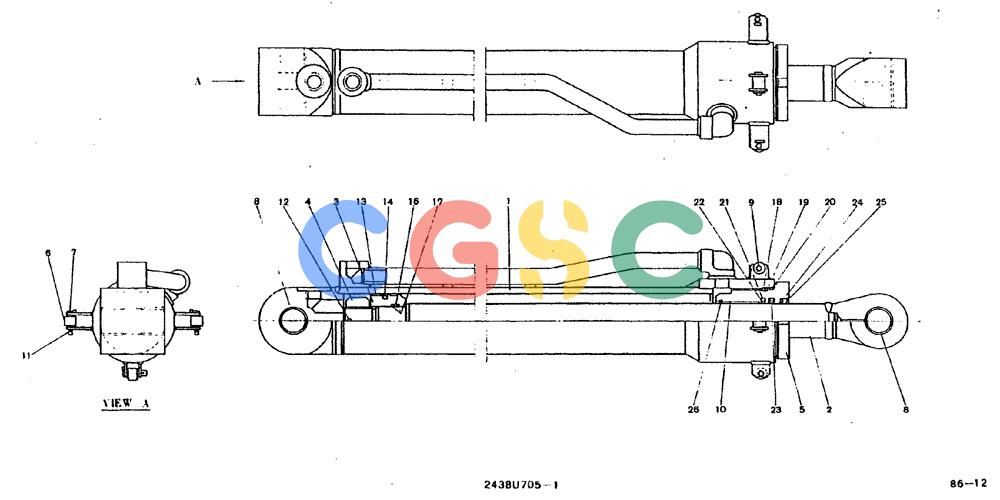

神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (11-019) - CYLINDER ASSY- 2438U705 F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
749 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U705F1 | [1] | CYLINDER ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| 1. | 2438U705S1 | [1] | TUBE, CYLINDER | |
| 2. | 2438U705S2 | [1] | ROD, PISTON | ROD, PISTON |
| 3. | 2438U705S3 | [1] | PISTON | |
| 4. | B38K0038E4 | [1] | NUT | KOB |
| 5. | 2438U705S5 | [1] | COVER ROD | COVER ROD |
| 6. | 2438U696S22 | [4] | ROLLER BEARING | KOBROLLER Superseded by part number: 2438U696S22M |
| 7. | 2438U696S24 | [4] | PIN | KOB |
| 8. | 2438U705S8 | [4] | BUSHING | KOB |
| 9. | 2438U696S23 | [8] | BUSHING | KOB Superseded by part number: 2405U104D008008 |
| 10. | 2438U504S16 | [1] | BUSHING | KOB Superseded by part number: 2405T902 |
| 11. | ZP15K02012 | [4] | COTTER PIN | KOBPIN Superseded by part number: ZP15K02035 |
| 12. | 2438U705S12 | [1] | PIN, SPRING | |
| 13. | 2438U705S13 | [2] | RING, WEAR | RING, WEAR |
| 14. | 2438U705S14 | [1] | SEAL, SET | |
| 16. | ZD12P04500 | [1] | O-RING | KOB |
| 17. | ZD75P04500 | [2] | RING, BACK-UP | |
| 18. | ZD12P10000 | [1] | O-RING | KOBID 99.60 ± 0.84 x OD 110mm |
| 19. | 2445R216D28 | [1] | RING, BACK-UP | |
| 20. | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOBID 14.80 ± 0.20 x OD 19mm |
| 21. | 2438U504S19 | [1] | O-RING | |
| 22. | 2438U504S18 | [1] | SEAL | |
| 23. | 2438U42S10 | [1] | PACKING | |
| 24. | 2438U724S17 | [1] | SEAL, DUST | |
| 25. | 2438U256E21 | [1] | CLIP | |
| 26. | 2438U257E16 | [1] | CLIP | KOBCLIP |
| . . | 2438U705R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF 18 - 24 |
| . . | 2438U705R200 | [1] | SEAL KIT | KOBREPAIR, CONSISTS OF REF 13, 14, 16, 17 |
