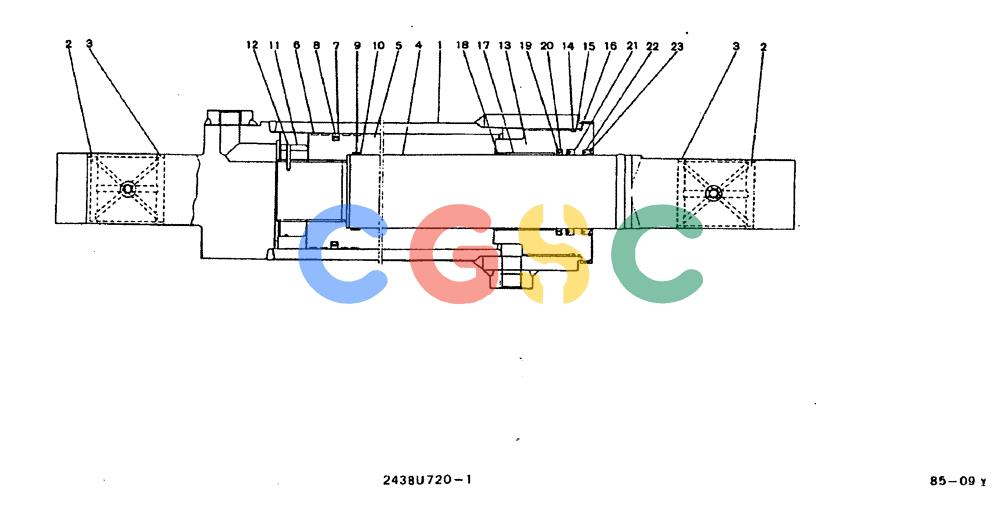

神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (11-020) - CYLINDER ASSY- 2438U720 F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
447 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U720F1 | [1] | CYLINDER ASSY, CONSISTS OF THE FOLLOWING PARTS | |
| 1. | 2438U720S1 | [1] | TUBE, CYLINDER | |
| 2. | 2438U720S2 | [2] | BUSHING | |
| 3. | 2438U694S23 | [4] | DUST CAP,75mm ID x 90mm OD x 4mm Thk | KOB Superseded by part number: 2445R138D11 |
| 4. | 2438U720S4 | [1] | PISTON, ROD | PISTON, ROD |
| 5. | 2438U720S5 | [1] | PISTON | |
| 6. | 2438U588S7 | [4] | WEAR RING | KOBRING, WEAR Superseded by part number: R45T0014D6 |
| 7. | R45P0049D12 | [1] | SEAL | KOB |
| 8. | 45Z91D46 | [1] | O-RING | KOB |
| 9. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 10. | ZD75G09500 | [2] | BACK-UP RING | KOB |
| 11. | 2438U588S10 | [1] | NUT | KOBPISTON Superseded by part number: 2438U323S25 |
| 12. | 2438U588S11 | [1] | LOCKING RING | KOB |
| 13. | 2438U720S13 | [1] | COVER, ROD | COVER, ROD |
| 14. | ZD12G15500 | [1] | O-RING,154.30mm ID x 165.70mm OD x 5.70mm | KOB |
| 15. | 2438U720S15 | [1] | RING, BACK-UP | |
| 16. | 2438U720S16 | [1] | O-RING | KOB |
| 17. | 2438U720S17 | [1] | BUSHING | |
| 18. | B38K0029E27 | [1] | SNAP RING | KOBRETAINER |
| 19. | 2438U720S19 | [1] | SEAL | KOB |
| 20. | 2438U720S20 | [1] | O-RING | |
| 21. | 2438U720S21 | [1] | ROD | KOB Superseded by part number: 2418U130D17 |
| 22. | 2438U720S22 | [1] | SEAL, DUST | SEAL, DUST |
| 23. | 2438U720S23 | [1] | RING, RETAINER | |
| . . | 2438U720R100 | [1] | REPAIR KIT | KOBCONSISTS OF REF 14 - 16, 19, 20 |
| . . | 2438U720R110 | [1] | REPAIR KIT | KOBCONSISTS OF REF 6 - 10 |
