凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (77.100.XX[15]) - FRONT AUGER SADDLE HYADRULIC 555/580 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
233 次

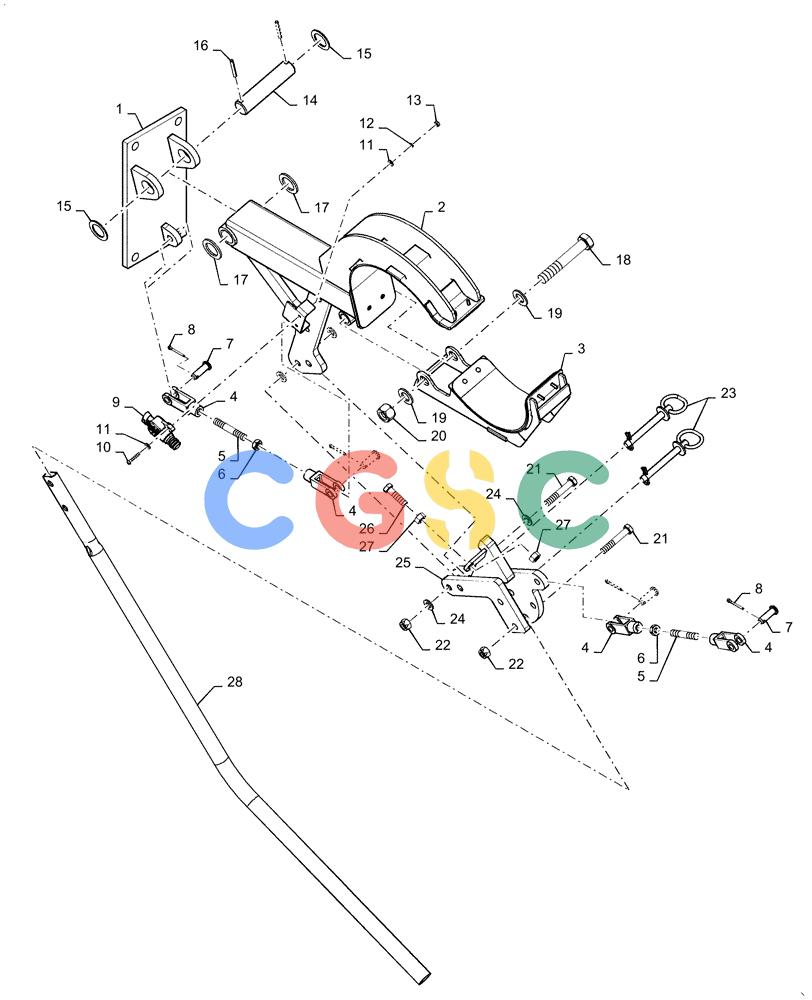

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47630439
|
[1] |
MOUNT
|
SAS
Front Saddle Black
|
| 2. |
47630446
|
[1] |
SUPPORT
|
SAS
Front Saddle Top
|
| 3. |
47636559
|
[1] |
SUPPORT
|
SAS
Front Saddle Bottom
|
| 4. |
47416693
|
[4] |
CLEVIS PIN
|
SAS
1/2-13
|
| 5. |
47416694
|
[2] |
THREADED ROD,1/2" - 13 x 3-1/8", Gr 8
|
SAS
|
| 6. |
86632558
|
[2] |
JAM NUT,Jam, 1/2"-13, G5
|
EML
|
| 7. |
439-1824
|
[4] |
HEADED PIN,1/2" x 1 1/2", G2
|
CAS
|
| 8. |
86523851
|
[4] |
COTTER PIN,5/32" x 1 1/4"
|
WIN
|
| 9. |
87484878
|
[1] |
LIMIT SWITCH
|
JES
Snap Action
|
| 10. |
86511915
|
[2] |
SCREW,Pan, #8 - 32 x 1"
|
WIN
|
| 11. |
280299
|
[4] |
WASHER,0.19" ID x 0.44" OD x 0.05" Thk
|
NH
|
| 12. |
87812
|
[2] |
LOCK WASHER,#8
|
GI
|
| 13. |
87653
|
[2] |
NUT,#8-32
|
WIN
Superseded by part number: 86977693
|
| 14. |
47630465
|
[1] |
PIN,31.75mm OD x 142mm L
|
SAS
|
| 15. |
87325445
|
[2] |
WASHER,1.25" ID x 1.88" OD x 0.07" Thk
|
SAS
|
| 16. |
87343
|
[2] |
LOCK PIN,6.35mm OD x 44.45mm L, Slotted
|
GI
|
| 17. |
1312
|
[2] |
WASHER,1 9/32" x 2" x .120"
|
FLX
Superseded by part number: 86632583
|
| 18. |
43188
|
[1] |
SCREW,Hex, M20 x 120mm, Cl 8.8
|
NH
Superseded by part number: 126699A1, 126699A1, 80043188
|
| 19. |
86511327
|
[2] |
WASHER,21mm ID x 37mm OD x 3mm Thk
|
NH
|
| 20. |
725637
|
[1] |
NUT,M20 x 2.5, Cl 8
|
BER
Superseded by part number: 380424
|
| 21. |
9706717
|
[2] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8
|
NH
|
| 22. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 23. |
432577A1
|
[2] |
HITCH PIN,12.7mm OD x 127mm L
|
FLX
|
| 24. |
86511324
|
[4] |
WASHER,13mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 25. |
47813806
|
[1] |
LATCH
|
SAS
Auger
|
| 26. |
9628065
|
[1] |
SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8
|
NH
|
| 27. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 28. |
47817914
|
[1] |
TUBE
|
SAS
Auger Handle
|
