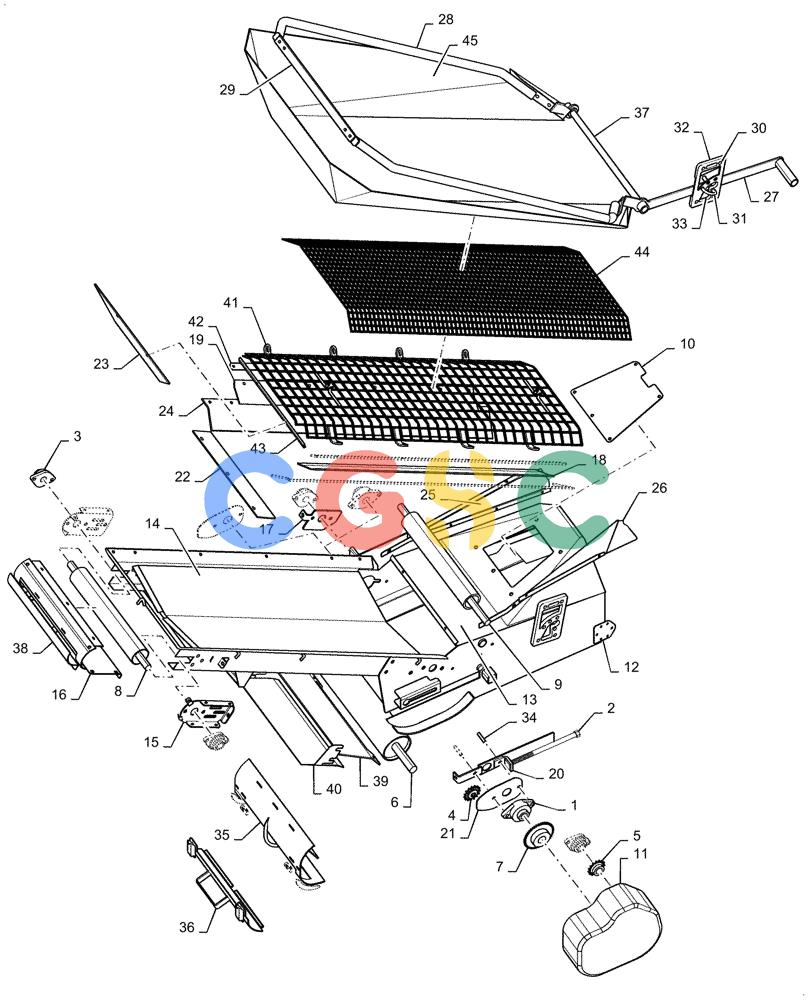

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (77.100.XX[20]) - CONVEYOR TAIL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
480 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47686591
|
[2] |
FLANGE
|
SAS
BLOCK 1 1/4" SHAFT BEARING 8" CONVE
|
| 2. |
84056369
|
[1] |
BOLT,Hex, M16 x 300mm, Cl 8.8
|
ZED
|
| 3. |
47751992
|
[4] |
BLOCK
|
SAS
FLANGE BLOCK 1" SHAFT BEARING
|
| 4. |
47753227
|
[1] |
SPROCKET
|
SAS
Idler
|
| 5. |
47753226
|
[1] |
SPROCKET
|
SAS
1" BORE W/KEYWAY
|
| 6. |
47686592
|
[1] |
DRUM
|
SAS
DRIVE ROLLER, 5"
|
| 7. |
47753225
|
[1] |
SPROCKET
|
SAS
1-1/4" BORE W/KEYWAY
|
| 8. |
47686596
|
[1] |
ROLLER
|
SAS
IDLER ROLLER, 3"
|
| 9. |
47686597
|
[1] |
ROLLER
|
SAS
DRIVE ROLLER, 3"
|
| 10. |
47751964
|
[1] |
COVER
|
SAS
TAIL BOX TRANSITION
|
| 11. |
47752007
|
[1] |
GUARD
|
SAS
LOWER DRIVE
|
| 12. |
47686620
|
[2] |
PLATE
|
SAS
CONNECTOR
|
| 13. |
47686631
|
[1] |
PLATE
|
SAS
TAIL BOX TRANSITION
|
| 14. |
47686643
|
[1] |
BRACKET
|
SAS
TAIL
|
| 15. |
NS
|
[2] |
NOT SERVICED
|
BAS
3" DRIVE ROLLER GUIDE
|
| 16. |
47751854
|
[1] |
MOUNT
|
SAS
TAIL CLEANOUT MOUNT
|
| 17. |
47686650
|
[1] |
PLATE
|
SAS
3" DRIVE ROLLER GUIDE
|
| 18. |
47751996
|
[1] |
COVER
|
SAS
HOLD DOWN, FLAP LEFT
|
| 19. |
47751998
|
[1] |
COVER
|
SAS
HOLD DOWN, FLAP RIGHT
|
| 20. |
47686652
|
[2] |
ROLLER
|
SAS
5" ROLLER GUIDE
|
| 21. |
47686656
|
[2] |
MOUNT
|
SAS
5" BEARING MOUNT
|
| 22. |
47751940
|
[1] |
COVER
|
SAS
TAIL REAR FLAP
|
| 23. |
47752001
|
[1] |
COVER
|
SAS
FLAP, HOPPER BACK
|
| 24. |
47751969
|
[2] |
COVER
|
SAS
FLAP, HOPPER SIDE
|
| 25. |
47686658
|
[1] |
MOUNT
|
SAS
BOX FLAP MOUNT LEFT
|
| 26. |
47686659
|
[1] |
PILLOW BLOCK
|
SAS
BOX FLAP MOUNT RIGHT
|
| 27. |
47686661
|
[1] |
HANDLE
|
SAS
HOPPER HANDLE RIGHT
|
| 28. |
47752014
|
[2] |
SUPPORT
|
SAS
HOPPER RIM
|
| 29. |
47752017
|
[1] |
SUPPORT
|
SAS
HOPPER RIM END
|
| 30. |
47752018
|
[1] |
HANDLE
|
SAS
HANDLE LATCH PLATE
|
| 31. |
47686670
|
[1] |
HANDLE
|
SAS
HANDLE LATCH PIN
|
| 32. |
47752020
|
[1] |
HANDLE
|
SAS
HANDLE LATCH, UPPER STOP
|
| 33. |
47686669
|
[1] |
HANDLE
|
SAS
HOPPER HANDLE, LOWER STOP
|
| 35. |
47751923
|
[1] |
MOUNT
|
SAS
INCLINE CLEANOUT MOUNT ASSY
|
| 36. |
47751938
|
[1] |
MOUNT
|
SAS
INCLINE CLEANOUT DOOR
|
| 37. |
47751920
|
[1] |
HANDLE
|
SAS
HOPPER HANDLE LEFT
|
| 38. |
47751896
|
[1] |
DOOR
|
SAS
TAIL CLEANOUT DOOR
|
| 39. |
47894227
|
[1] |
COVER
|
SAS
FLOWGUARD FLAP
|
| 40. |
47752010
|
[1] |
SUPPORT
|
SAS
FLOWGUARD SUPPORT
|
| 41. |
47752015
|
[1] |
SCREEN
|
SAS
2"x 2"
|
| 42. |
47752002
|
[2] |
STRAP
|
SAS
STRAP, SIDE
|
| 43. |
47752000
|
[1] |
STRAP
|
SAS
STRAP, END
|
| 45. |
47752009
|
[1] |
CANVAS
|
SAS
Hopper
|
| 46. |
86512520
|
[7] |
BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd
|
WIN
For #10
|
| 47. |
86511842
|
[14] |
BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8
|
NH
For 19,22,24,41,42
|
| 48. |
9804277
|
[14] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
For 19,22,24,41,42 Superseded by part number: 86505868
|
| 49. |
86508568
|
[4] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
For Plate #12
|
| 50. |
86619800
|
[4] |
FLANGE NUT,M6 x 1, Cl 8
|
RAC
For Plate #12
|
