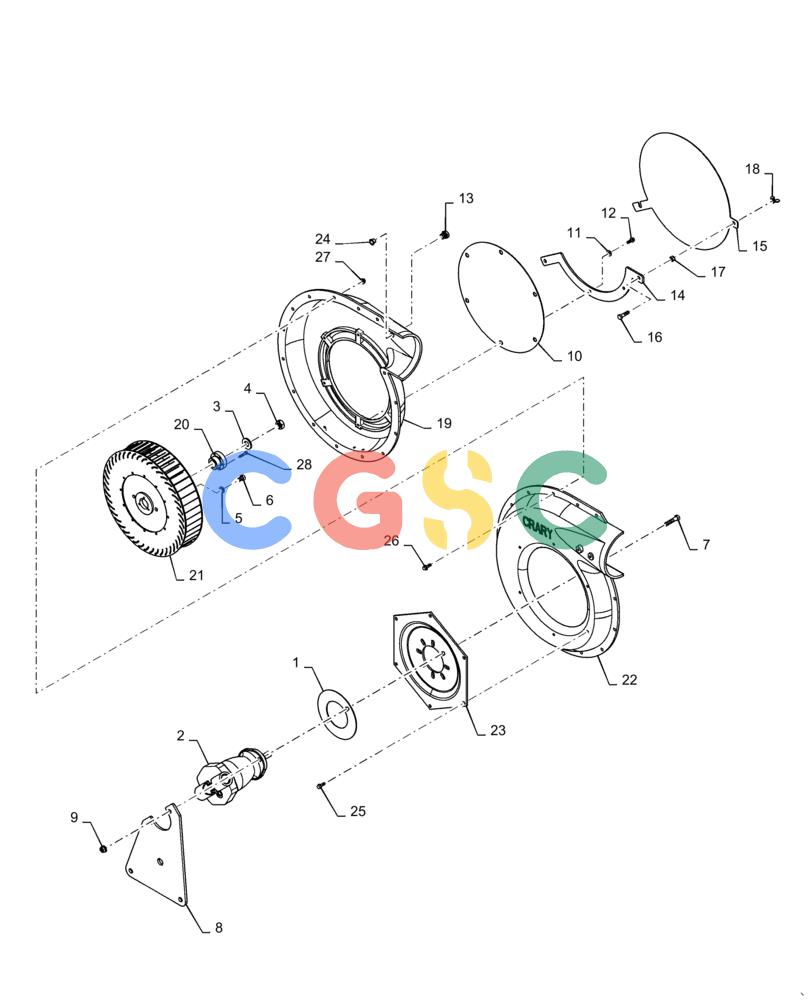

| 1. |
84395655
|
[1] |
SUPPORT
|
SAS
Motor Shim
|
| 2. |
47640717
|
[1] |
HYDRAULIC MOTOR
|
SAS
Piston
|
| 3. |
86624189
|
[1] |
WASHER,0.66" ID x 1.31" OD x 0.15" Thk
|
NH
Superseded by part number: 5122064
|
| 4. |
86624024
|
[1] |
THIN NUT,5/8"-18, Thin, G8
|
FOR
Superseded by part number: 83991073
|
| 5. |
80680
|
[2] |
LOCK WASHER,3/8 0.381 CST ZND
|
NH
|
| 6. |
88814
|
[2] |
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd
|
PA
|
| 7. |
9706689
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
|
PA
|
| 8. |
47740030
|
[1] |
BRACKET
|
SAS
Fan Mount
|
| 9. |
247780
|
[2] |
SERRATED NUT,Flg, USR, 3/8"-16
|
GI
|
| 10. |
84495334
|
[1] |
SCREEN
|
SAS
Fan Black
|
| 11. |
87361
|
[6] |
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
|
NH
|
| 12. |
86624115
|
[6] |
SELF-TAP SCREW,HWH, 1/4" - 20 x 3/4"
|
FOR
|
| 13. |
86611704
|
[1] |
PLUG
|
NH
|
| 14. |
47815828
|
[1] |
BRACKET
|
SAS
Fan Shield
|
| 15. |
47815831
|
[1] |
SHIELD
|
SAS
Fan Inlet Black
|
| 16. |
43128
|
[2] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 17. |
86629542
|
[2] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 18. |
10102001
|
[2] |
WING NUT,Wing Nut, M8 x 1.25
|
TTF
Superseded by part number: 10102004
|
| 19. |
84512356
|
[1] |
HOUSING
|
SAS
6" Fan Left
|
| 20. |
47657939
|
[1] |
COLLAR
|
SAS
Fan Impeller
|
| 21. |
447243A1
|
[1] |
ROTOR
|
FLX
Blades
|
| 22. |
84512351
|
[1] |
HOUSING
|
SAS
6" Fan Right
|
| 23. |
84512363
|
[1] |
MOUNT
|
SAS
Fan Plate
|
| 24. |
84514713
|
[1] |
PLUG
|
SAS
Plastic
|
| 26. |
523292
|
[15] |
BOLT,1/4" - 20 x 1.03" OAL
|
WIN
|
| 27. |
523282
|
[15] |
SERRATED NUT,Flg, USR, 1/4"-20
|
WIN
|
| 28. |
87016453
|
[3] |
SCREW,Hex Soc Hd, #10-24 x 1"
|
RAC
Superseded by part number: 461-31016
|
