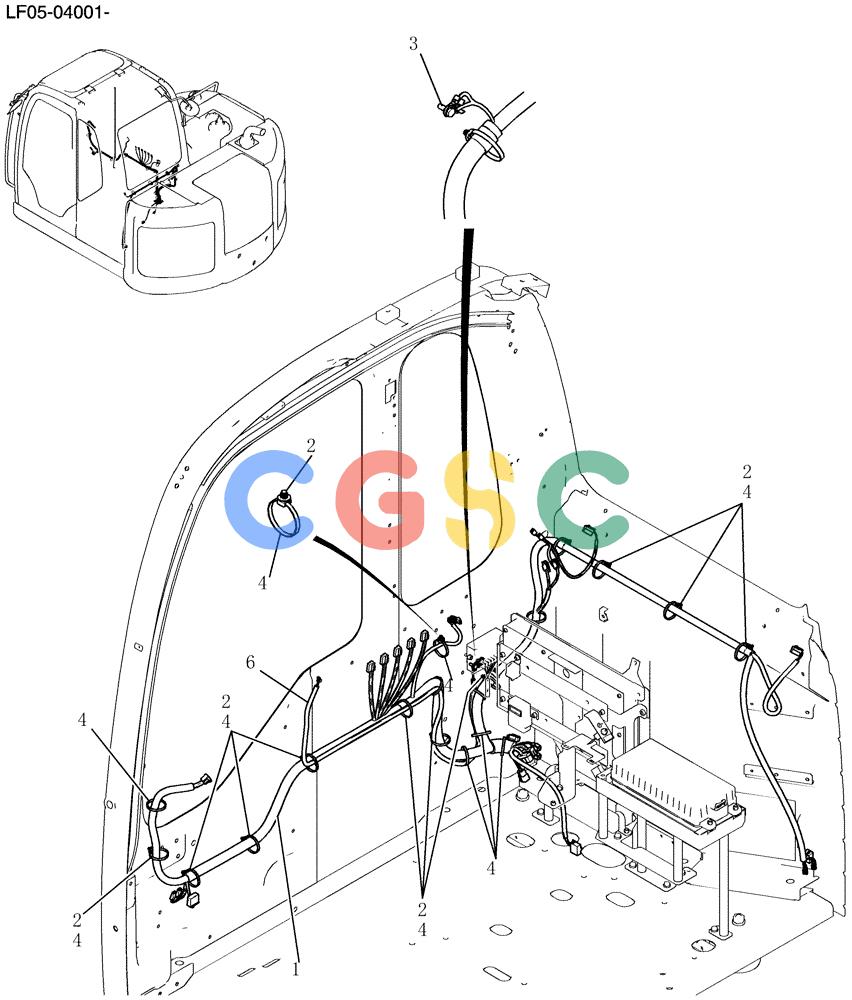

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (315-01[1]) - HARNESS ASSY, CAB New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT14E00029F1 | [1] | Harness Assy, Cab | |
| 1. | YT14E01078P2 | [1] | HARNESS | KOB, Serial Range: LF05-04001-LF05-04132 Superseded by part number: YT14E01078P4 |
| . . | YT14E01078P4 | [1] | HARNESS | KOB, Start Serial: LF05-04133 |
| 2. | YN13E01375P1 | [13] | CLIP,M8 x 8.20mm Shank | KOB |
| 3. | ZM73C06016 | [1] | BOLT,M6x16mm - Course Thread | KOBSems |
| 4. | PY01P01043D3 | [19] | CABLE TIE,188mm L | KOB |
| 6. | YN14E01106P1 | [1] | HARNESS | KOB |
