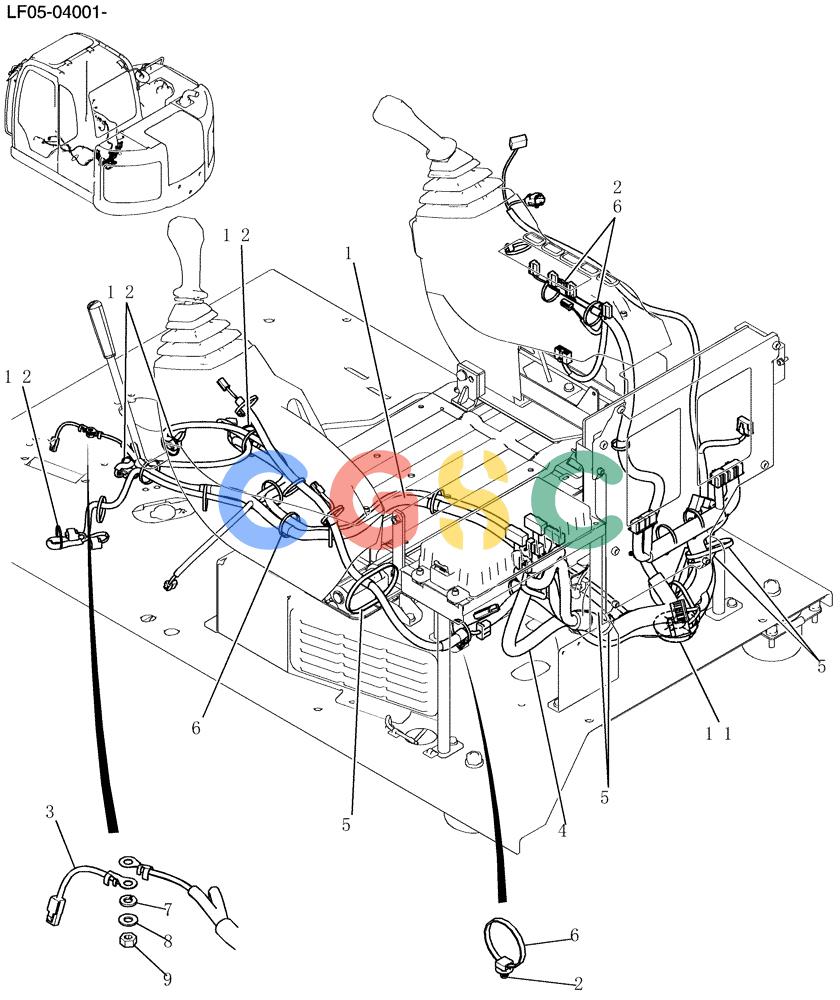

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (320-01[1]) - HARNESS ASSY, UPP (FLOOR) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
800 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT13E00049F1 | [1] | Harness Assy, Upp (floor), Start Serial: LF05-04001 | |
| . . | YT13E00049F2 | [1] | Harness Assy, Upp (floor), Start Serial: LF05-04213 | |
| 1. | YT13E01172P1 | [1] | Harness, Serial Range: LF05-04001-LF05-04212 | |
| 2. | YN13E01375P1 | [10] | CLIP,M8 x 8.20mm Shank | KOB |
| 3. | LE13E01005P1 | [1] | CABLE,100mm L | KOB |
| 4. | YB13E01054P1 | [1] | HARNESS | KOB |
| 5. | PY01P01043D8 | [4] | CABLE TIE,102mm L | KOB |
| 6. | PY01P01043D3 | [23] | CABLE TIE,188mm L | KOB, Serial Range: LF05-04001-LF05-04212 |
| 7. | ZW26X08000 | [1] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 8. | ZW16P08000 | [1] | WASHER | KOB |
| 9. | ZN18C08007 | [1] | NUT | KOB |
| 11. | LC13E01322P1 | [1] | GROMMET | KOB |
| 12. | PY01P01043DA | [5] | CABLE TIE,2.50mm W x 205mm L | KOB, Serial Range: LF05-04001-LF05-04212 |
