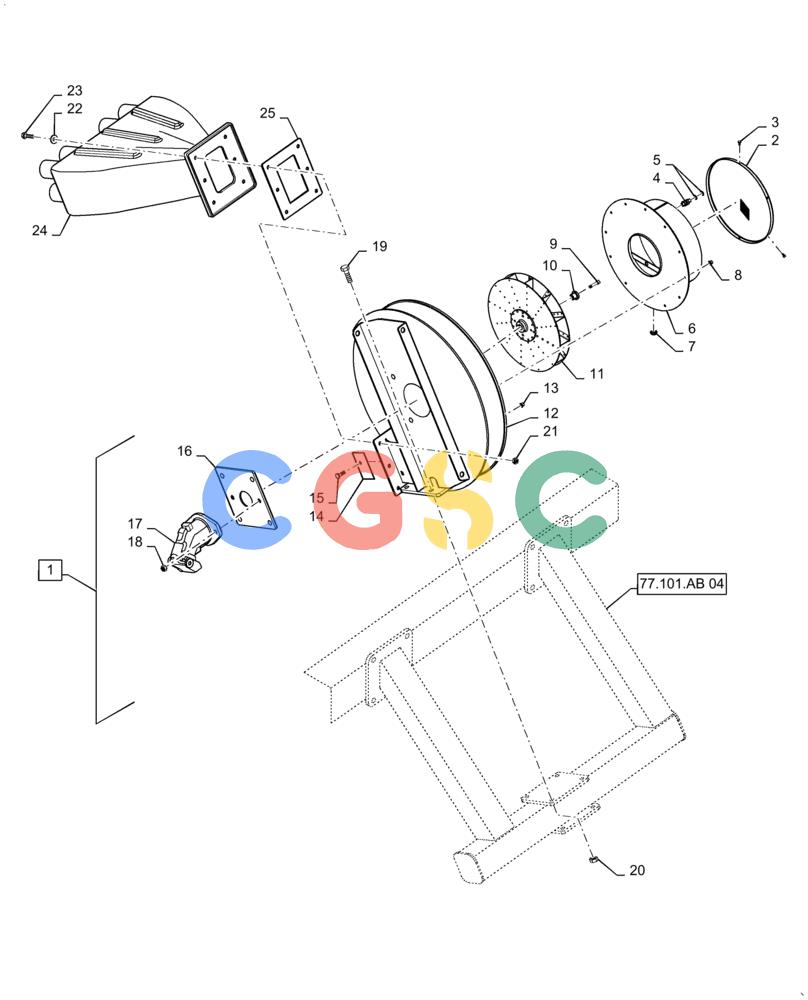

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (77.101.AB[05]) - TOP FAN, 8 RUN DOUBLE SHOOT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1001 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47678910
|
[1] |
BLOWER
|
SAS
Fan, Complete. Incl 2 - 18
|
| 2. |
47678918
|
[1] |
SCREEN
|
SAS
Fan Cover
|
| 3. |
86625162
|
[6] |
SELF-TAP SCREW,HWH, 1/4" - 14 x 1/2"
|
PA
|
| 4. |
324049A1
|
[1] |
SENSOR
|
CAS
|
| 5. |
86977690
|
[2] |
LOCK WASHER,Ext Tooth, 5/8"
|
PA
|
| 6. |
47678917
|
[1] |
INTAKE AIR HOSE
|
SAS
Fan
|
| 7. |
435810A1
|
[1] |
GROMMET,5/8" ID x 1-1/8" OD x 3/8" Thk
|
FLX
|
| 8. |
87383746
|
[12] |
FLANGE NUT,M8 x 1.25, Flg, Cl 10
|
CAS
|
| 9. |
47738527
|
[1] |
SCREW,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
SAS
|
| 10. |
47678919
|
[1] |
HUB CAP
|
SAS
Fan
|
| 11. |
47678915
|
[1] |
IMPELLER
|
SAS
Fan
|
| 12. |
47678914
|
[1] |
FAN HOUSING
|
SAS
|
| 13. |
86619800
|
[1] |
FLANGE NUT,M6 x 1, Cl 8
|
RAC
|
| 14. |
47687935
|
[1] |
DEFLECTOR
|
SAS
|
| 15. |
14305221
|
[1] |
HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8
|
IMO
|
| 16. |
47687942
|
[1] |
MOUNT
|
SAS
Fan Motor
|
| 17. |
47640700
|
[1] |
HYDROSTATIC MOTOR
|
SAS
16cc, Piston
|
| 18. |
87533547
|
[6] |
NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10
|
WIC
|
| 19. |
86629541
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 20. |
118490
|
[4] |
NUT,M12 x 1.75, Cl 8
|
BER
Superseded by part number: 100038
|
| 21. |
8475948
|
[6] |
NUT,M10 x 1.5, Cl 8
|
BER
Superseded by part number: 100037
|
| 22. |
86625253
|
[6] |
WASHER,11mm ID x 24mm OD x 2mm Thk
|
FAR
|
| 23. |
120112
|
[6] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd
|
NH
|
| 24. |
47602961
|
[1] |
PLENUM
|
SAS
Fan, 8 Run Superseded by part number: 47602962
|
| 25. |
47602964
|
[1] |
SEAL
|
SAS
Fan, 8 Run
|
| 26. |
48018198
|
[1] |
SEAL
|
SAS
Motor 16 cc Piston
|
