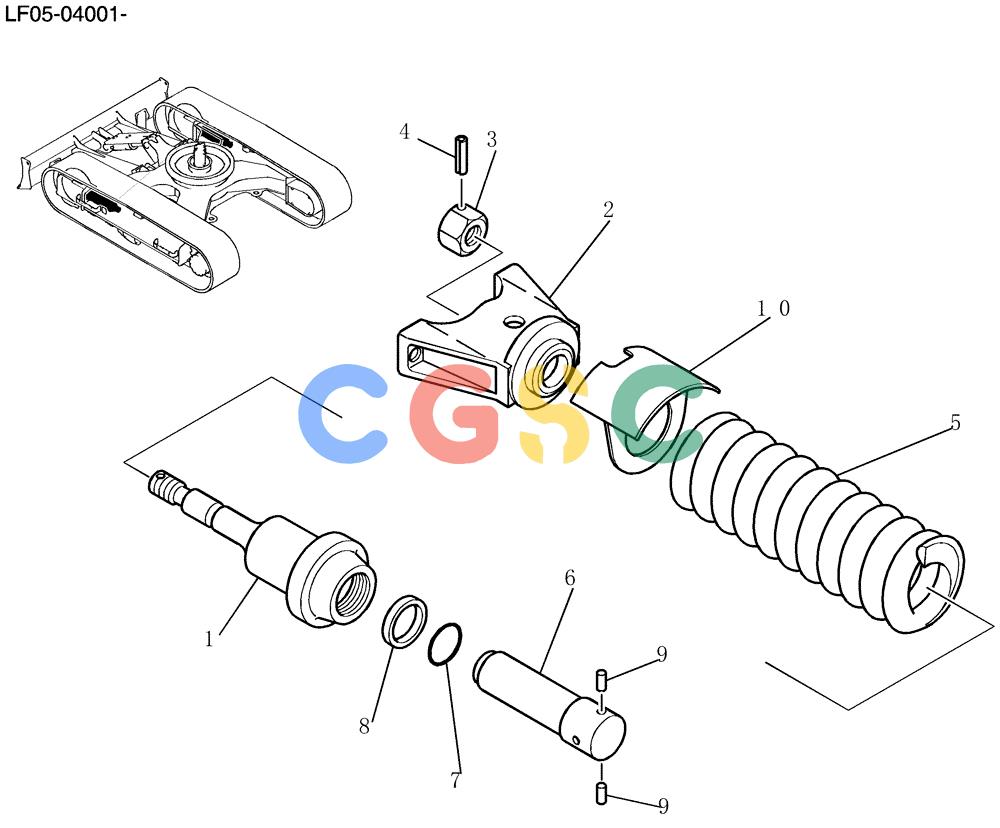

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (360-01-1[1]) - IDLER ADJUST ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
809 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT54D00002F1 | [1] | IDLER | KOBAdjust Assy |
| 1. | YR54D01001P1 | [1] | CYLINDER | KOBGrease |
| 2. | YR54D01002P1 | [1] | BRACKET | KOB |
| 3. | YR54D01007P1 | [1] | NUT | KOB |
| 4. | ZP26D05050 | [1] | PIN | KOBSpring |
| 5. | YR54D01004P1 | [1] | SPRING | KOB |
| 6. | YR54D01005P1 | [1] | PISTON | KOB |
| 7. | ZD12G05000 | [1] | O-RING,49.40mm ID x 55.60mm OD x 3.10mm | KOB |
| 8. | 2445Z1081 | [1] | SEAL | KOBOil |
| 9. | 2419T6274 | [2] | PIN | KOB Superseded by part number: PE54D01002P1 |
| 10. | YT54D01003P1 | [1] | COVER | KOB |
