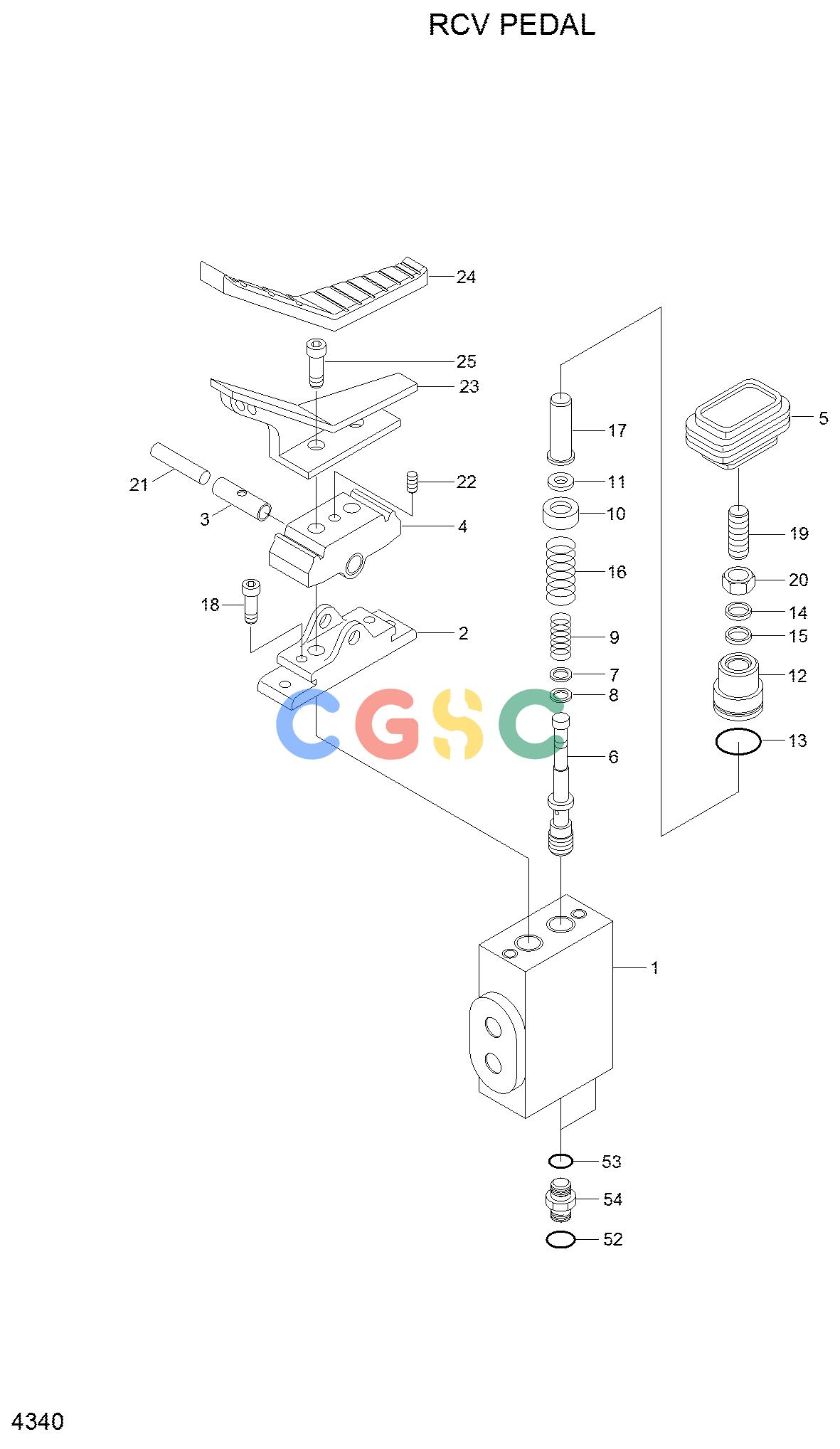

现代零件查询R55-7A RCV PEDALEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31M8-20300
|
[1] |
RCV PEDAL SUB ASSY
|
|
| -1. |
31M8-20310
|
[1] |
RCV PEDAL
|
|
| 1. |
XKAY-00424
|
[1] |
CASING
|
|
| -11. |
XKAY-00425
|
[1] |
COVER KIT
|
|
| 2. |
XKAY-00554
|
[1] |
COVER
|
|
| 3. |
XKAY-00010
|
[1] |
BUSHING
|
|
| -12. |
XKAY-00426
|
[1] |
CAM KIT
|
|
| 4. |
XKAY-00011
|
[1] |
CAM
|
|
| 19. |
XKAY-00007
|
[2] |
SCREW-SET
|
|
| 20. |
XKAY-00006
|
[2] |
NUT-HEX
|
|
| 22. |
XKAY-00560
|
[1] |
SCREW-SET
|
|
| 5. |
XKAY-00005
|
[1] |
BELLOWS
|
|
| -13. |
XKAY-00427
|
[1] |
SPOOL KIT
|
|
| 6. |
XKAY-00555
|
[1] |
SPOOL
|
|
| 7. |
XKAY-00556
|
[AR] |
SHIM(1.0T)
|
|
| 8. |
XKAY-00029
|
[2] |
SEAT-SPRING
|
|
| 9. |
XKAY-00557
|
[2] |
SPRING
|
|
| 10. |
XKAY-00558
|
[2] |
SEAT-SPRING
|
|
| 11. |
XKAY-00058
|
[2] |
STOPPER
|
|
| -14. |
XKAY-00428
|
[1] |
PUSH ROD KIT
|
|
| 12. |
XKAY-00559
|
[2] |
PLUG
|
|
| 13. |
XKAY-00438
|
[2] |
O-RING
|
|
| 14. |
XKAY-00097
|
[2] |
SEAL-DUST
|
|
| 15. |
XKAY-00055
|
[2] |
SEAL-ROD
|
|
| 17. |
XKAY-00430
|
[2] |
PUSH ROD
|
|
| 16. |
XKAY-00429
|
[2] |
SPRING
|
|
| 18. |
XKAY-00431
|
[2] |
BOLT-SOCKET
|
|
| 21. |
XKAY-00009
|
[1] |
SHAFT-CAM
|
|
| 23. |
XKAY-00432
|
[1] |
PEDAL
|
|
| 24. |
XKAY-00433
|
[1] |
PEDAL COVER
|
|
| 25. |
XKAY-00434
|
[2] |
BOLT-SOCKET
|
|
| 52. |
S621-011001
|
[2] |
O-RING
|
|
| 53. |
S631-011004
|
[2] |
O-RING
|
|
| 54. |
X500-110001
|
[2] |
CONNECTOR-ORFS
|
|
| N. |
@
|
[AR] |
|
|
