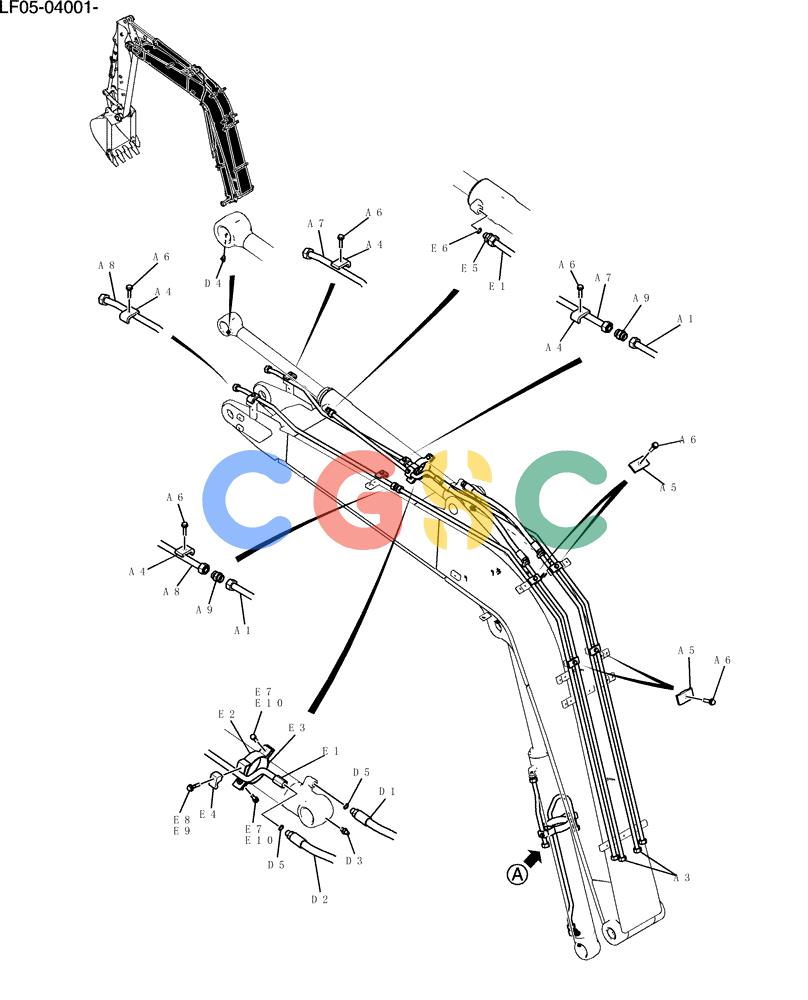

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (500-18-1[1]) - HYD LINES, BOOM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
476 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF42H00011F1 | [1] | PIPE | KOBHyd Lines, Boom |
| A1. | LF42H01057P1 | [2] | TUBE | KOB |
| A3. | LF42H01048P1 | [2] | TUBE | KOB |
| A4. | ZC26X22011 | [4] | CLAMP | KOB |
| A5. | ZC36X22011 | [4] | CLAMP | KOB |
| A6. | ZM73C10045 | [8] | BOLT,M10x45mm - Course Thread | KOBSems |
| A7. | YT42H01457P1 | [1] | TUBE | KOB |
| A8. | YT42H01458P1 | [1] | TUBE | KOB |
| A9. | ZA23B22000 | [2] | HYD CONNECTOR | KOB |
| . . | YT42H00100F1 | [1] | Hyd Lines, Cylinder | |
| . . | YT42H00113F1 | [1] | PIPE | KOBHyd Lines, Cylinder (boom Cyl Rod) |
| B1. | YT42H01241P1 | [1] | TUBE | KOB |
| B2. | ZA23F22008 | [1] | HYD CONNECTOR | KOB |
| B3. | ZD12P01800 | [1] | O-RING | KOB |
| B4. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGrease |
| B5. | ZG91V02000 | [1] | LUBE NIPPLE | KOBGrease |
| . . | YT42H00117F1 | [1] | PIPE | KOBHyd Lines, Cylinder (boom Cyl Head) |
| C1. | YT42H01383P1 | [1] | TUBE | KOB |
| C2. | YT42H01448P1 | [2] | BAND | KOB |
| C3. | ZA33F22008 | [1] | ELBOW,M30 x 1.5 ORB x 1/2" NPT | KOB |
| C4. | YR43H01003P1 | [2] | CLAMP | KOB |
| C6. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBCap |
| C7. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBCap |
| C8. | ZW16H10000 | [2] | WASHER | KOB |
| C9. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| . . | YT42H00094F1 | [1] | Hyd Lines, Cylinder | |
| . . | YT42H00125F1 | [1] | PIPE | KOBHyd Lines, Cylinder (arm Cyl Head) |
| D1. | YT42H01030D1 | [1] | HOSE | KOB |
| D2. | YT42H01030D3 | [1] | FLEXIBLE HOSE | KOB |
| D3. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB |
| D4. | ZG91U02000 | [1] | LUBE NIPPLE | KOBGrease |
| . . | YT42H00096F1 | [1] | PIPE | KOBHyd Lines, Cylinder (arm Cyl Rod) |
| E1. | YT42H01370P1 | [1] | TUBE | KOB |
| E2. | YT42H01450P1 | [1] | BAND | KOB |
| E3. | YT42H01244P1 | [1] | BAND | KOB |
