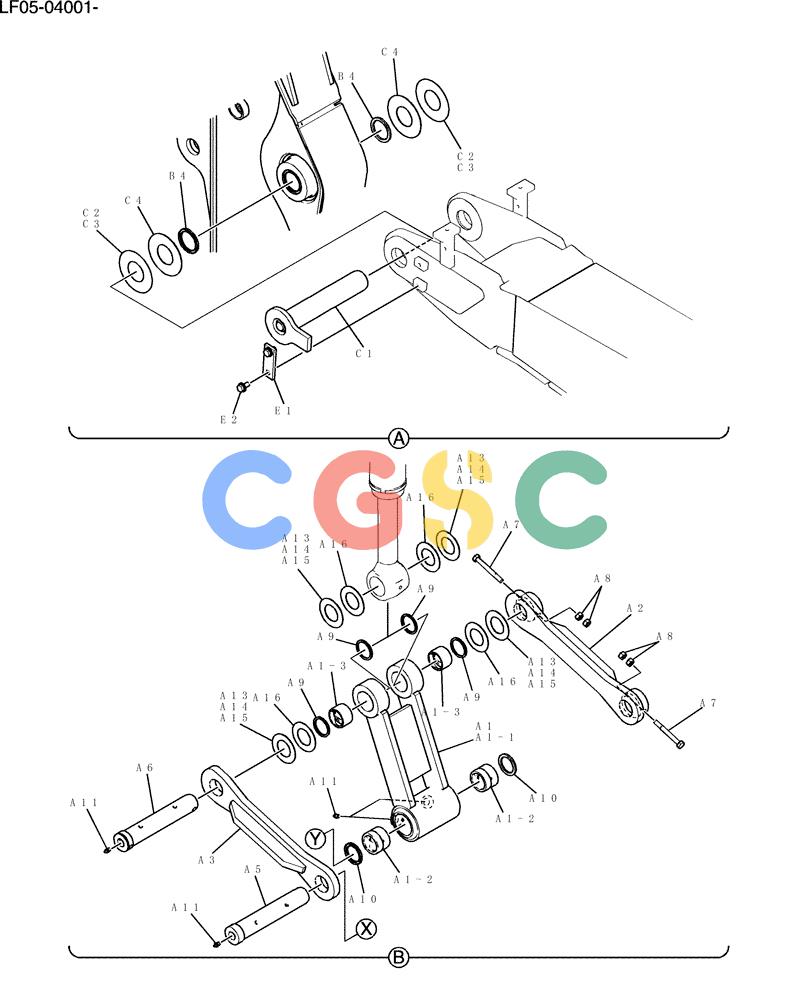

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (580-01-2[2]) - ARM INSTAL (ARM CYL ROD PIN) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
543 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT12B00171F1 | [1] | Arm Group | |
| A1. | YT12B01176F1 | [1] | LINK | KOBAssy, Bucket |
| A1-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONLink, Bucket |
| A1-2. | YR12B01079P1 | [2] | BUSHING | KOB |
| A1-3. | LE12B01055P1 | [2] | BUSHING | KOB |
| A2. | YT12B01024P1 | [1] | LINK | KOB Superseded by part number: YT12B01348P1 |
| A3. | YT12B01025P1 | [1] | LINK | KOB |
| A4. | YT12B01113P1 | [2] | PIN | KOB |
| A5. | YT12B01018P2 | [1] | PIN | KOB Superseded by part number: YT12B01345P1 |
| A6. | YT12B01019P1 | [1] | PIN | KOB Superseded by part number: YT12B01346P1 |
| A7. | HS18C12100G2 | [2] | SCREW | KOBCap |
| A8. | ZN18C12010 | [4] | NUT | KOB |
| A9. | 2445R138D19 | [4] | SEAL,50mm ID x 60mm OD x 4mm Thk | KOBDust |
| A10. | 2445R220D5 | [2] | SEAL,50mm ID x 65mm OD x 5mm Thk | KOBDust |
| A11. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGrease |
| A13. | B16T0442D54 | [6] | SHIM,52mm ID x 80mm OD x 0.5mm Thk | KOB |
| A14. | B16T0442D41 | [6] | SHIM,80mm OD x 52mm ID x 0.9mm Thk | KOB |
| A15. | B16T0442D25 | [6] | SHIM,80mm OD x 52mm ID x 1.2mm Thk | KOB |
| A16. | YR12B01028P1 | [6] | SHIM | KOB(2. 0) |
| . . | LF12B00022F1 | [1] | Arm Assy | |
| B1. | LF12B00023F1 | [1] | ARM | KOBAssy [ see figure no.585-01-1 ] |
| B4. | 2445R220D1 | [2] | SEAL,60mm ID x 75mm OD x 5mm Thk | KOBDust |
| . . | YT12B00129F1 | [1] | Arm Instal | |
| . . | YT12B00130F1 | [1] | ARM | KOBArm Instal (arm Foot Pin) |
| C1. | YT12B01228P1 | [1] | PIN | KOB |
| C2. | YR02B01266D1 | [2] | SHIM | KOB(0. 9) |
| C3. | YR02B01266D3 | [2] | SHIM | KOB(0. 5) |
| C4. | YR02B01265P1 | [2] | SHIM | KOB(2. 0) |
| . . | YT12B00125F1 | [1] | ARM | KOBArm Instal (arm Cyl Rod Pin) |
| D1. | YT12B01217P1 | [1] | PIN | KOB |
| D2. | HS18C14115G2 | [1] | BOLT,Hex, M14 x 115mm, Cl 10.9 | KOBCap |
| D3. | ZN18C14011 | [2] | NUT | KOB |
| D4. | B16T0442D27 | [1] | SHIM,62mm ID x 100mm OD x 1.2mm Thk | KOB(1. 2) |
| D5. | B16T0442D43 | [1] | SHIM,0.9mm Thk | KOB |
| D6. | B16T0442D56 | [1] | SHIM,0.5mm Thk | KOB |
| D7. | PY02B01028P1 | [2] | SHIM,2.0mm Thk | KOB |
| . . | YT12B00131F1 | [1] | ARM | KOBArm Instal (arm Foot Lock Plate) |
| E1. | YT12B01230P1 | [1] | PLATE | KOBPlate |
| E2. | ZM73C12025 | [2] | BOLT,M12x25mm - Course Thread | KOBSems-bolt |
