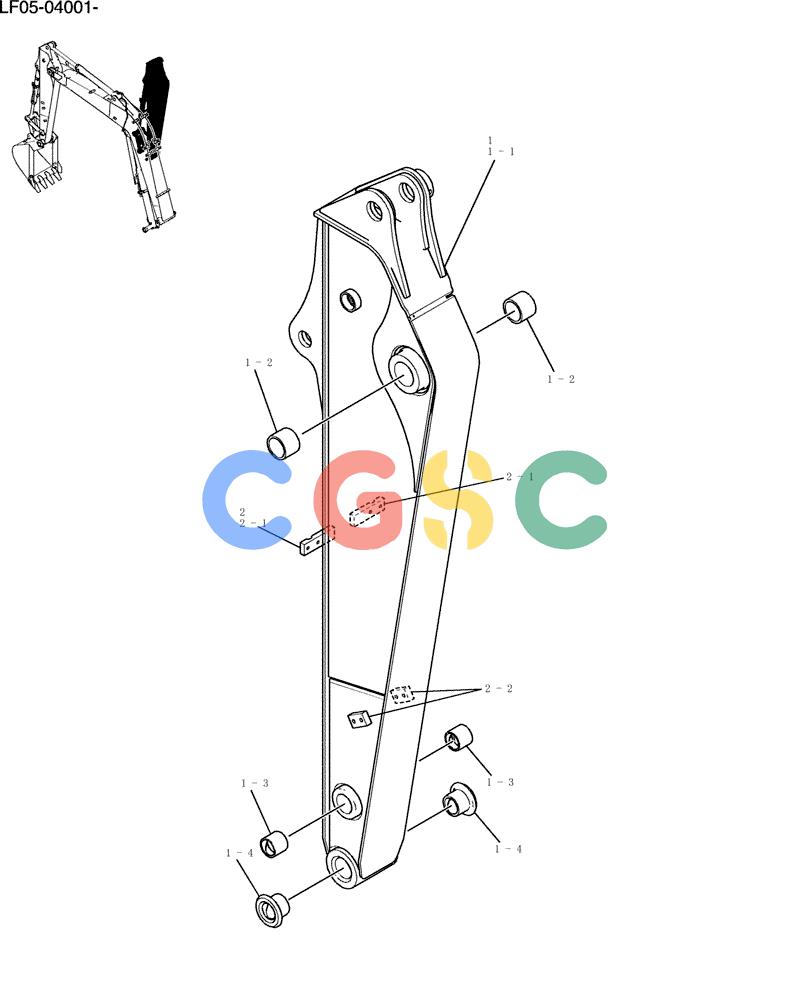

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (585-01-1[1]) - ARM ASSY, 1. 87M New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
579 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF12B00023F1 | [1] | ARM | KOBArm Assy, 1. 87m |
| 1. | LF12B00018F1 | [1] | ARM | KOBArm Assy |
| 1-1. | LF12B00019P1 | [1] | ARM | KOBArm |
| 1-2. | YT12B01010P2 | [2] | BUSHING | KOB |
| 1-3. | LE12B01054P1 | [2] | BUSHING | KOB |
| 1-4. | YT12B01112P1 | [2] | BUSHING | KOB |
| 2. | YT12B00121P1 | [1] | ARM | KOBArm (nibbler & Breaker) |
| 2-1. | YT12B01227P1 | [2] | BLOCK | KOBBlock, Tapped |
| 2-2. | LC12B01560P1 | [2] | BLOCK | KOBBlock, Tapped |
