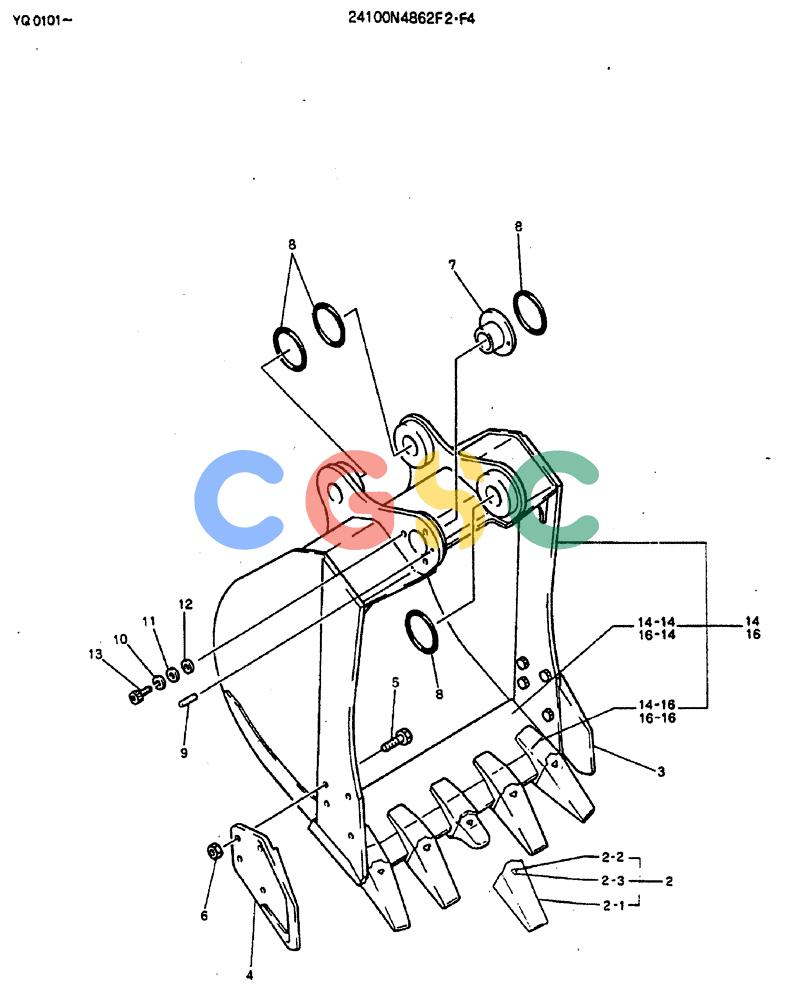

神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (07-003) - BUCKET ASSY, 0.7M³ (0.92CU YD) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4862F2 | [1] | BUCKET ASSY, Serial Range: YQ0101-YQ0237 | |
| . . | 24100N4862F4 | [1] | BUCKET ASSY, Start Serial: YQ0238 | |
| 2. | B12N0006F1 | [5] | TOOTH | KOB |
| 2-1. | B12N0006E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12N0006E2 | [1] | LOCK PIN | KOBLOCK-PIN, RUBBER Superseded by part number: B12N0006E2MK |
| 2-3. | B12N0006E3 | [1] | PIN | KOB Superseded by part number: 2412Z163K |
| 3. | 2412N289D11 | [1] | BLADE | KOBSIDE Superseded by part number: YN69B00006P1 |
| 4. | 2412N289D21 | [1] | BLADE | KOBSIDE Superseded by part number: YN69B00007P1 |
| S. | ZS13C24070 | [8] | SCREW | KOBM24x3.0x70mm |
| 6. | ZN13C24019 | [8] | NUT | KOBM24x3.0mm |
| 7. | 2405T1313 | [1] | BUSHING,80mm ID x 95mm OD x 63mm W | KOB |
| 8. | 2445Z1136 | [4] | O-RING | KOB |
| 9. | 2419T3747 | [1] | PIN,13mm OD x 63mm L | KOBOD 13 x 63mm Long |
| 10. | ZW22X16000 | [3] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 11. | 2418T12116D2 | [3] | SHIM | KOBID 17 x OD 24 x Th 3.2mm |
| 12. | 2418T12116D1 | [30] | SHIM | KOBID 17 x OD 24 x Th 1.0mm |
| 13. | 2420T4472 | [3] | SCREW,M16 x 2 x 38mm | KOBM16x2.0x38mm |
| 14. | 2412J938 | [1] | BUCKET, Serial Range: YQ0101-YQ0237 | |
| 14-14. | 2412P539D1 | [1] | EDGE, CUTTING | |
| 14-16. | B12N0005 | [5] | ADAPTER | KOB |
| 16. | 2412J960 | [1] | BUCKET, Start Serial: YQ0238 | |
| 16-14. | 2412P539D1 | [1] | EDGE, CUTTING | |
| 16-16. | B12N0005 | [5] | ADAPTER | KOB |
