神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (08-007) - BUZZER ASSY, BACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
386 次

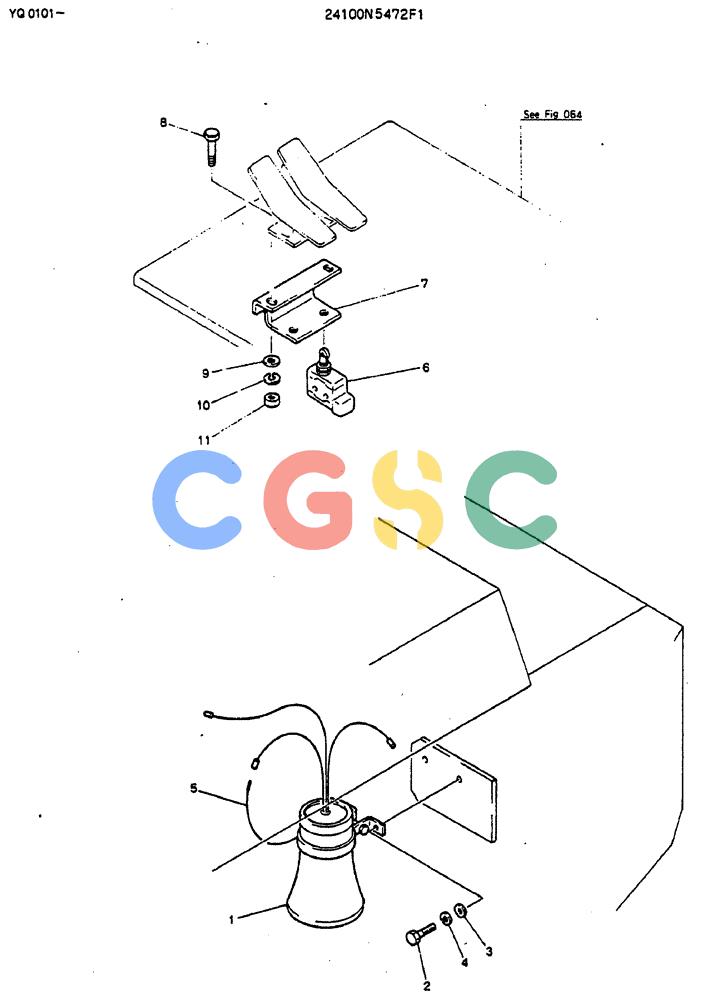

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5472F1 | [1] | BUZZER ASSY BACK | BUZZER ASSY BACK |
| . . | 2447R102 | [1] | BUZZER | KOBBACK |
| . . | ZS18C06020 | [2] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| . . | ZW16X06000 | [3] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| . . | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| . . | 2479Z1057 | [5] | HARNESS | HARNESS |
| . . | 2479Z1452 | [6] | SWITCH | KOBLIMIT |
| . . | 2416P8798 | [7] | BRACKET | KOB |
| . . | ZS18C10035 | [8] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| . . | ZW16X10000 | [9] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| . . | ZW26X10000 | [10] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| . . | ZN18C10008 | [11] | NUT | KOBM10x1.50mm |
