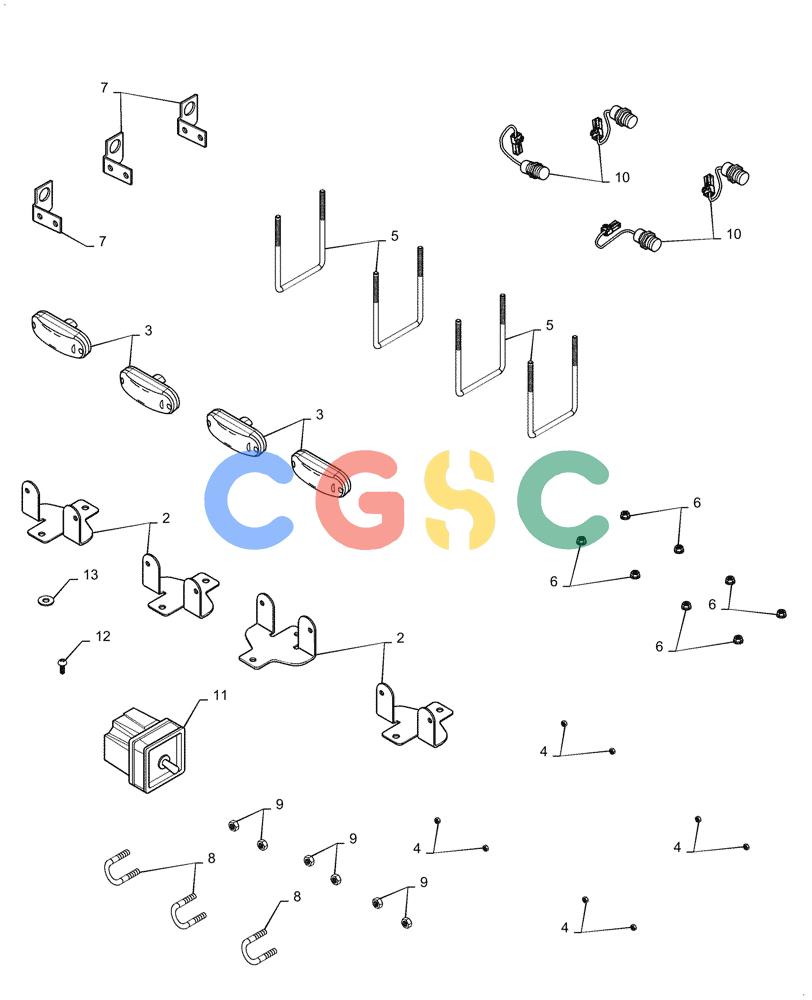

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (88.100.55[12]) - KIT, 2 TANK LEVEL INDICATOR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47808701
|
[1] |
Assy, Incl 2 - 17
|
|
| 2. |
47858516
|
[2] |
BRACKET
|
SAS
Tank Full Light, Black
|
| 3. |
87694404
|
[2] |
LIGHT ASSY.
|
GI
Position, Rear Stop-Tail LED
|
| 4. |
84542360
|
[4] |
NUT
|
BN
|
| 5. |
47602771
|
[2] |
U-BOLT
|
SAS
|
| 6. |
86619801
|
[4] |
FLANGE NUT,M8 x 1.25, Cl 8
|
PA
Superseded by part number: 87681210
|
| 7. |
47870887
|
[2] |
BRACKET
|
SAS
Sensor Mount
|
| 8. |
233381A1
|
[2] |
U-BOLT,M10 x 1.5 x 73mm, Carbon Steel
|
CAS
|
| 9. |
100037
|
[4] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 10. |
47625038
|
[2] |
SENSOR
|
SAS
Low Bin, Capacitance
|
| 11. |
47737284
|
[1] |
SWITCH
|
SAS
Toggle, Light
|
| 12. |
21304
|
[1] |
SELF-TAP SCREW
|
FLX
|
| 13. |
280299
|
[1] |
WASHER,0.19" ID x 0.44" OD x 0.05" Thk
|
NH
|
| 14. |
47480701
|
[1] |
WIRE HARNESS
|
SAS
Tank Full, 2 Tank Carts (Not Shown)
|
| 15. |
47649223
|
[2] |
WIRE HARNESS
|
SAS
Tank Full, In-Tank (Not Shown)
|
| 16. |
87557088
|
[5] |
CABLE TIE
|
SAS
Not Shown Superseded by part number: 87668737
|
| 17. |
87557086
|
[8] |
CABLE TIE
|
SAS
Not Shown
|
