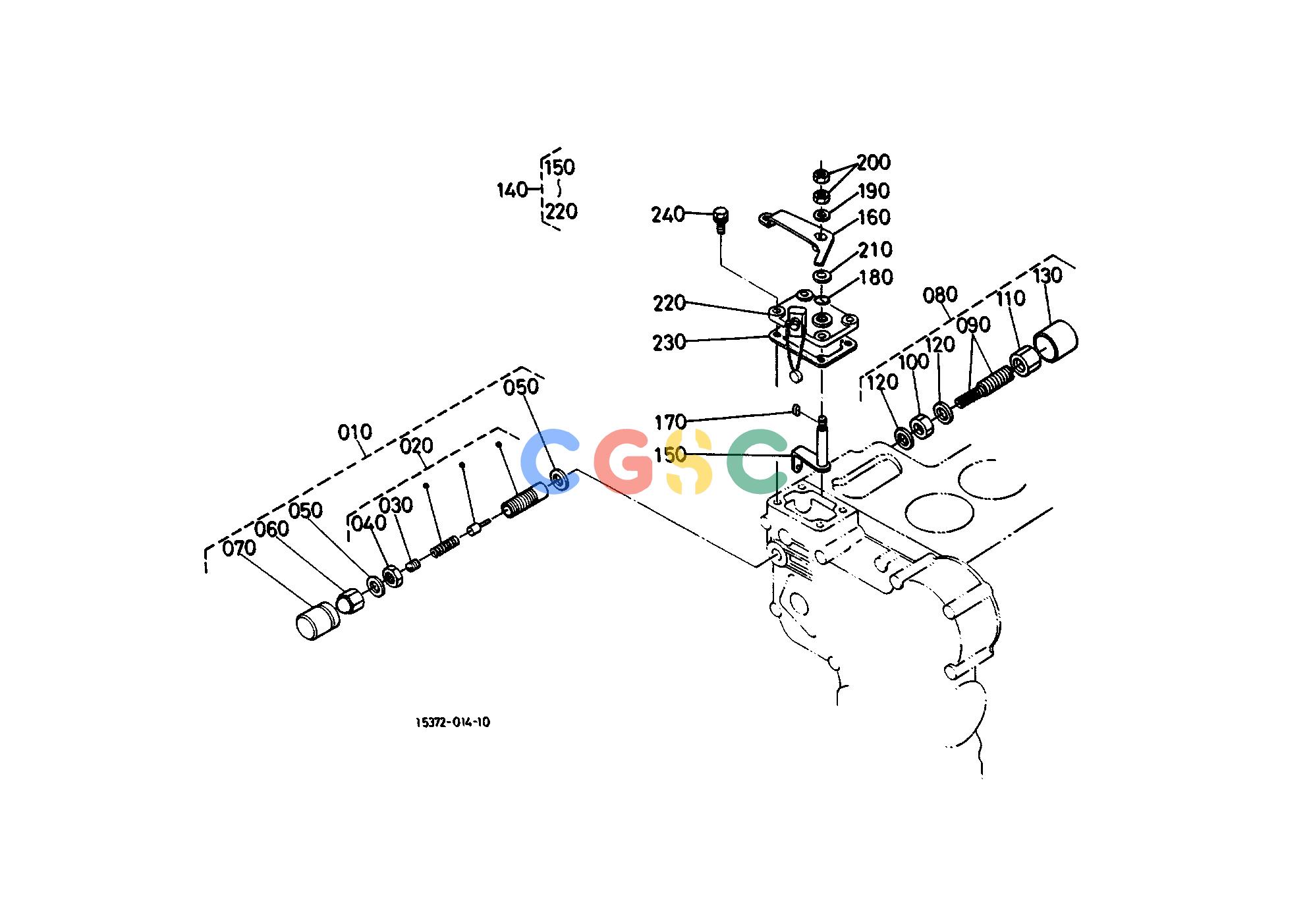

久保田零件查询T02000 SPEED CONTROL PLATE ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1537154020
|
[1] |
APPARATUS FUEL LIMIT
|
0.1210(lbs); 0.055
|
| 020. |
1537154030
|
[1] |
APPARATUS FUEL LIMIT
|
0.0682(lbs); 0.031
|
| 030. |
1430154430
|
[1] |
SCREW SET
|
0.0022(lbs); 0.001
|
| 040. |
1526154370
|
[1] |
NUT LOCK
|
0.0154(lbs); 0.007
|
| 050. |
1510933660
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 060. |
1526154220
|
[1] |
NUT CAP
|
0.0440(lbs); 0.020
|
| 070. |
1430154420
|
[1] |
CAP
|
0.0110(lbs); 0.005
|
| 080. |
1526154090
|
[1] |
ASSY APPARATUS I/D.
|
0.0594(lbs); 0.027
|
| 090. |
1526154100
|
[1] |
ASSY BOLT ADJUSTING
|
0.0176(lbs); 0.008
|
| 100. |
1526192020
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 110. |
1526192330
|
[1] |
NUT CAP
|
0.0220(lbs); 0.010
|
| 120. |
1502133660
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 130. |
1526154270
|
[1] |
CAP
|
0.0044(lbs); 0.002
|
| 140. |
1597157000
|
[1] |
PLATE SPEED CONTROL
|
0.3080(lbs); 0.140
|
| 150. |
1526156023
|
[1] |
COMP.LEVER GOVERNOR
|
0.0440(lbs); 0.020
|
| 160. |
1537157152
|
[1] |
LEVER SPEED CONTROL
|
0.0880(lbs); 0.040
|
| 170. |
0571200410
|
[1] |
KEY FEATHER
|
0.0022(lbs); 0.001
|
| 180. |
0481100070
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 190. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 200. |
0201250060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 210. |
1526194010
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 220. |
1526157110
|
[1] |
PLATE SPEED CONTROL
|
0.1320(lbs); 0.060
|
| 230. |
1526157210
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 240. |
0102350620
|
[4] |
BOLT
|
0.0132(lbs); 0.006
|
