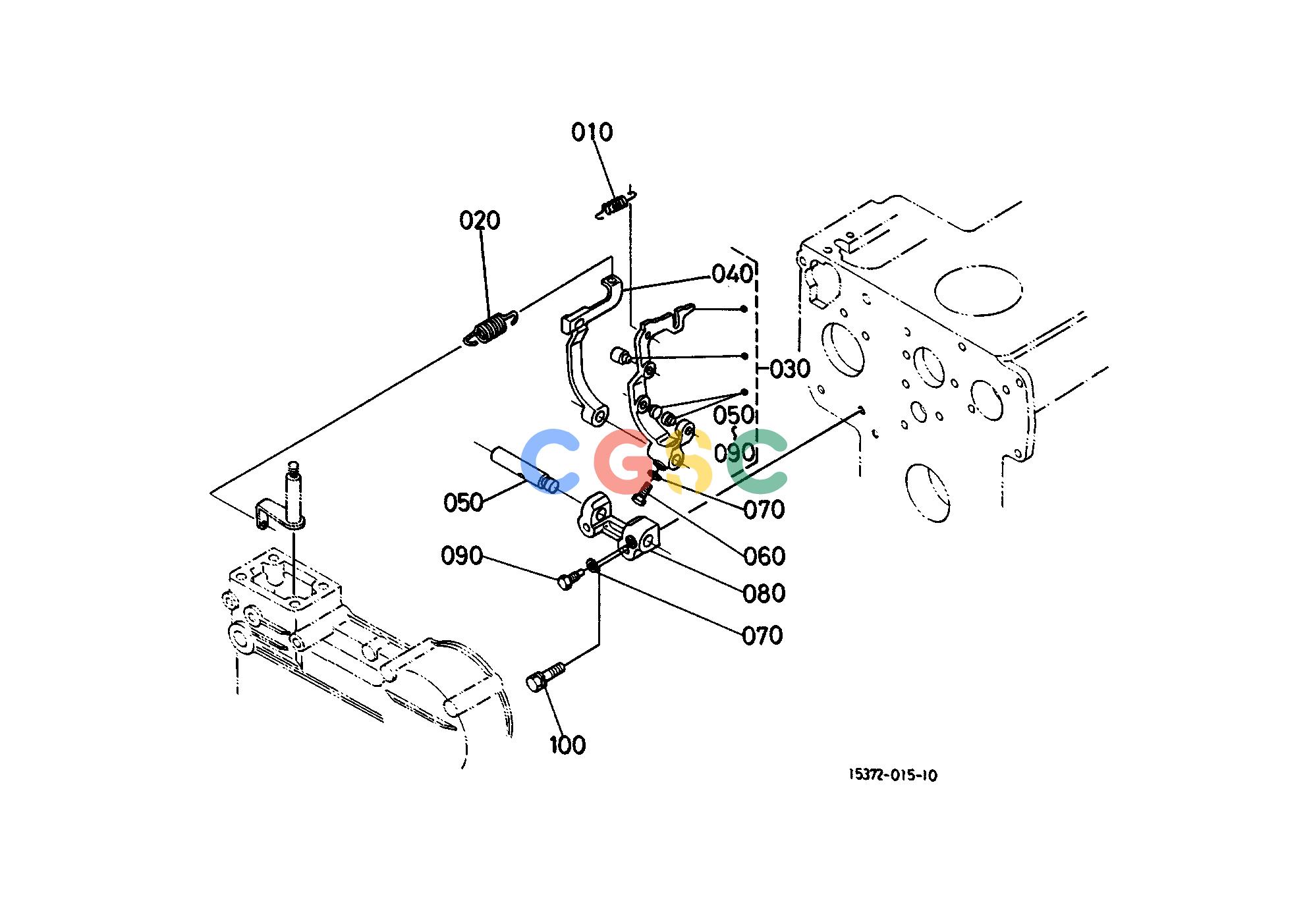

久保田零件查询T02100 GOVERNOR ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
332 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1522156480
|
[1] |
SPRING START
|
0.0176(lbs); 0.008
|
| 020. |
1537156410
|
[1] |
SPRING GOVERNOR
|
0.0132(lbs); 0.006
|
| 030. |
1538156050
|
[1] |
ASSY LEVER FORK
|
0.5588(lbs); 0.254
|
| 040. |
1526156130
|
[1] |
LEVER FORK
|
0.1386(lbs); 0.063
|
| 050. |
1526156150
|
[1] |
SHAFT FORK LEVER
|
0.0704(lbs); 0.032
|
| 060. |
0105350516
|
[1] |
BOLT
|
0.0066(lbs); 0.003
|
| 070. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 080. |
1526156230
|
[1] |
HOLDER FORK LEVER
|
0.0836(lbs); 0.038
|
| 090. |
1526166410
|
[1] |
BOLT
|
0.0066(lbs); 0.003
|
| 100. |
0102350628
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
