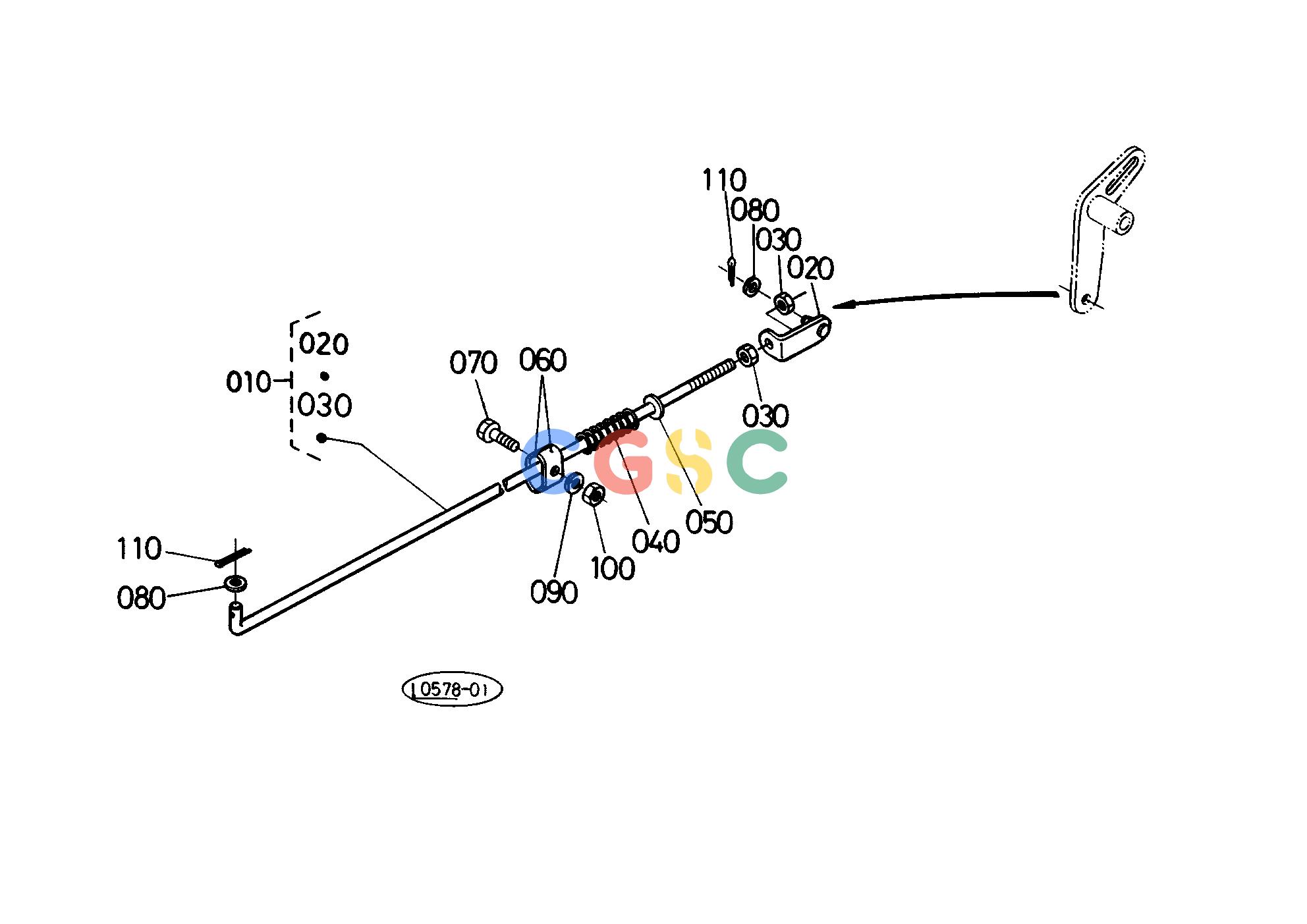

久保田零件查询T02400 ACCELERATOR ROD ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
618 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620443200
|
[1] |
ASSY ROD RELEASE
|
0.3300(lbs); 0.150
|
| 020. |
6671143220
|
[1] |
MATERIAL L
|
0.0506(lbs); 0.023
|
| 030. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 040. |
6620443272
|
[1] |
SPRING
|
0.0308(lbs); 0.014
|
| 050. |
0401550060
|
[1] |
WASHER PLAIN
|
0.0132(lbs); 0.006
|
| 060. |
6620454650
|
[2] |
STOPPER
|
0.0154(lbs); 0.007
|
| 070. |
0105350620
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 080. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 090. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 100. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 110. |
0551151612
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
