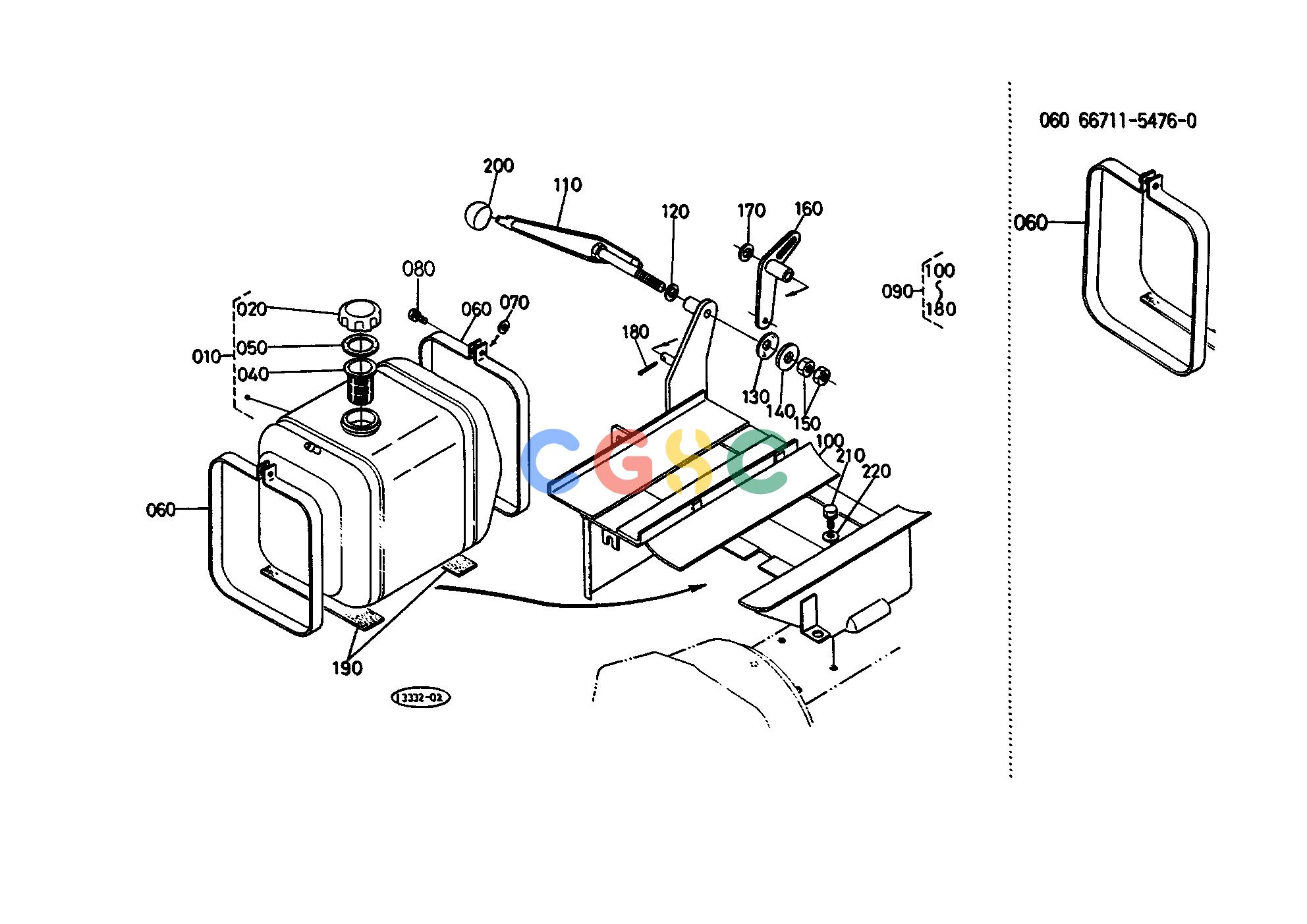

久保田零件查询T02500 FUEL TANK/ACCELERATOR LEVER FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6671154702
|
[1] |
ASSY TANK FUEL
|
0.0000(lbs); 0.000
|
| 020. |
6671154820
|
[1] |
ASSY CAP FUEL TANK
|
0.0660(lbs); 0.030
|
| 040. |
1325141060
|
[1] |
FILTER FUEL
|
0.0220(lbs); 0.010
|
| 050. |
1021141340
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 060. |
6671154760
|
[2] |
BAND FUEL TANK
|
0.0000(lbs); 0.000
|
| 060. |
6671154764
|
[2] |
BAND FUEL TANK
|
0.5940(lbs); 0.270
|
| 070. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 080. |
0112350830
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 090. |
6620454805
|
[1] |
ASSY SUPPORT TANK BA
|
7.5900(lbs); 3.450
|
| 100. |
6620454770
|
[1] |
SUPPORT TANK BATTERY
|
7.2600(lbs); 3.300
|
| 110. |
6620443220
|
[1] |
LEVER RELEASE
|
0.4070(lbs); 0.185
|
| 120. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 130. |
3221017190
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 140. |
0401550100
|
[1] |
WASHER PLAIN
|
0.0396(lbs); 0.018
|
| 150. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 160. |
6620443230
|
[1] |
ARM RELEASE
|
0.2200(lbs); 0.100
|
| 170. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 180. |
0551152518
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 190. |
6664154740
|
[2] |
CUSHION TANK
|
0.1430(lbs); 0.065
|
| 200. |
6661143240
|
[1] |
GRIP LEVER
|
0.0396(lbs); 0.018
|
| 210. |
0112350816
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 220. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
