神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (01-003) - MOTOR ASSY. SWING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
865 次

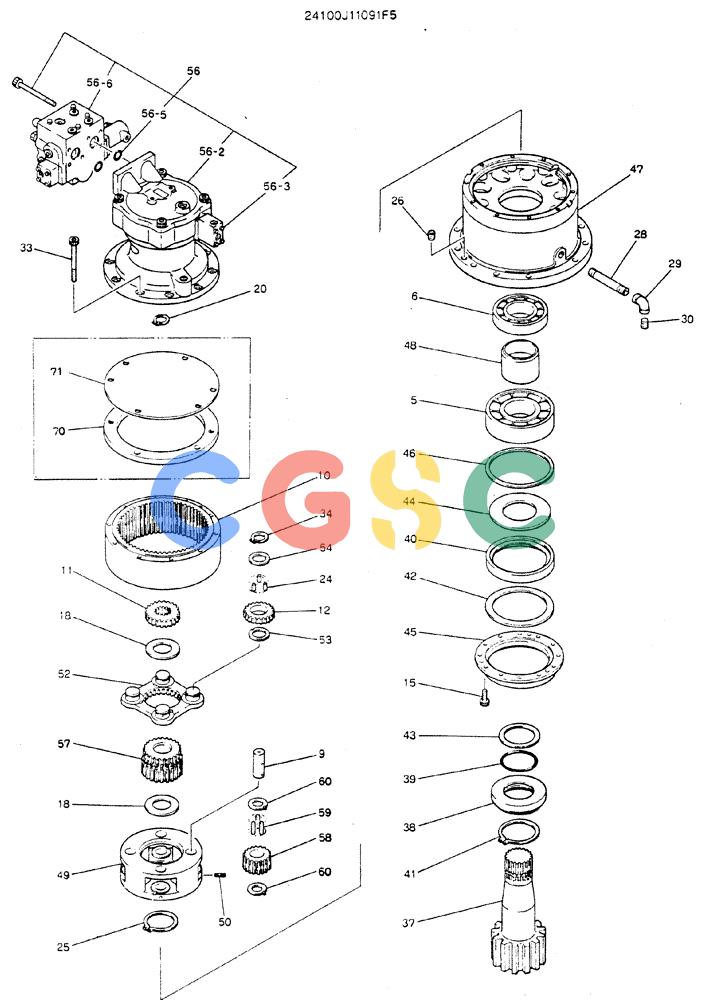

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J11091F5 | [1] | MOTOR ASSY, SWING | MOTOR ASSY, SWING |
| 5. | R25P0047D8 | [1] | BEARING | KOBROLLER |
| 6. | 25Z494D11 | [1] | BEARING | KOBROLLER |
| 9. | 2410T340 | [4] | ROLLER SHAFT | KOB |
| 10. | 2401N468 | [1] | RING GEAR | KOB |
| 11. | 2401P1276 | [1] | SUN GEAR | KOB |
| 12. | 2401P1277 | [4] | PINION | KOB |
| 15. | ZS23C08030 | [12] | SCREW,Hex Socket Head, M8 x 30mm | KOBM08x1.25x30mm Superseded by part number: ZS28C08030 |
| 18. | 2418P20198D3 | [2] | SPACER | KOB(4.0) |
| 20. | ZR16X04500 | [1] | RING | KOBRetaining -- ID 45 x OD 58 x Th 1.8mm |
| 24. | 2425T384 | [140] | NEEDLE BEARING | KOBROLLER |
| 25. | ZR16X08500 | [1] | LOCKING RING | KOB |
| 26. | ZS83C20020 | [2] | SCREW | KOBSet -- M20x2.50x20mm |
| 28. | 2420T6698D3 | [1] | RIGID TUBE | KOB |
| 29. | ZG31U12000 | [1] | ELBOW | KOB90 DEGREES |
| 30. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| 33. | ZS23C14140 | [10] | SCREW,Hex Socket Head, M14 x 140mm | KOBM14x2.0x140mm |
| 34. | ZR16X04000 | [4] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 37. | 2410N519 | [1] | FINGER ASSY. | KOB |
| 38. | 2418P23538 | [1] | HOSE | KOB |
| 39. | ZD11P09500 | [1] | O-RING | KOBID 94.6 ± 0.81 x OD 105mm |
| 40. | 2418R259 | [1] | OIL SEAL | KOB |
| 41. | 2418R2D60 | [1] | SNAP RING | KOBSNAP |
| 42. | 2418T21667 | [1] | PLATE | KOB |
| 43. | 2418T20987 | [1] | PLATE | KOB |
| 44. | 2418T20986 | [1] | PLATE | KOB |
| 45. | 2418P22799 | [1] | RETAINER | KOB |
| 46. | 2418T20988 | [1] | SPACER | KOB(4.0) |
| 47. | 2414J2298 | [1] | HOUSING | KOB |
| 48. | 2418T20989 | [1] | SPACER | KOB |
| 49. | 2413J381 | [1] | DIFF. SPIDER | KOBSPIDER |
| 50. | ZP26D08025 | [4] | PIN | KOBRoll -- OD 08 x 25mm Long |
| 52. | 2413N462F1 | [1] | SPIDER | KOB |
| 53. | 2418T20962 | [4] | THRUST WASHER | KOB |
| 54. | 2418T19775D3 | [4] | THRUST WASHER | KOB |
| 56. | 2441U819F2 | [1] | HYDRAULIC MOTOR | KOBMOTOR, SWING Superseded by part number: 2441U819F3 |
| 56-2. | 2441U804F1 | [1] | HYDRAULIC MOTOR | KOBSEE (C.P.M.) |
| 56-3. | 2436U1283F1 | [1] | VALVE PRESSURE RELIE | KOBSEE (C.P.M.) |
| 56-5. | ZD12G03500 | [2] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 56-6. | 2436U1431F4 | [1] | CONTROL VALVE | KOBVALVE, CONTROL SEE (C.P.M.) Superseded by part number: 2436U1431F6 |
| 57. | 2401P1434 | [1] | SUN GEAR | KOB |
| 58. | 2401P1438 | [4] | PINION | KOB Superseded by part number: 2401P1440 |
| 59. | 2425R332 | [4] | NEEDLE BEARING | KOB |
| 60. | 2418T24791 | [8] | RING | KOB |
| . . | 24100J13639F3 | [1] | HYDRAULIC MOTOR | KOBCONSISTS OF ITEM 5, 6, 9 TO 12, 15, 18, 24 TO 26, 30, 33, 34, 37 TO 50, 52 - 54, 56 - 60 Superseded by part number: 24100J13639F4 |
| . . | 24025T2F2 | [35] | SERVICE KIT | KOBCONSISTS OF ITEM 24 |
| 70. | 2418T23087 | [1] | SPACER | |
| 71. | 2418T5028 | [1] | PLATE COVER | PLATE COVER |
