神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (01-002) - COUNTER-WEIGHT ASSY. Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
836 次

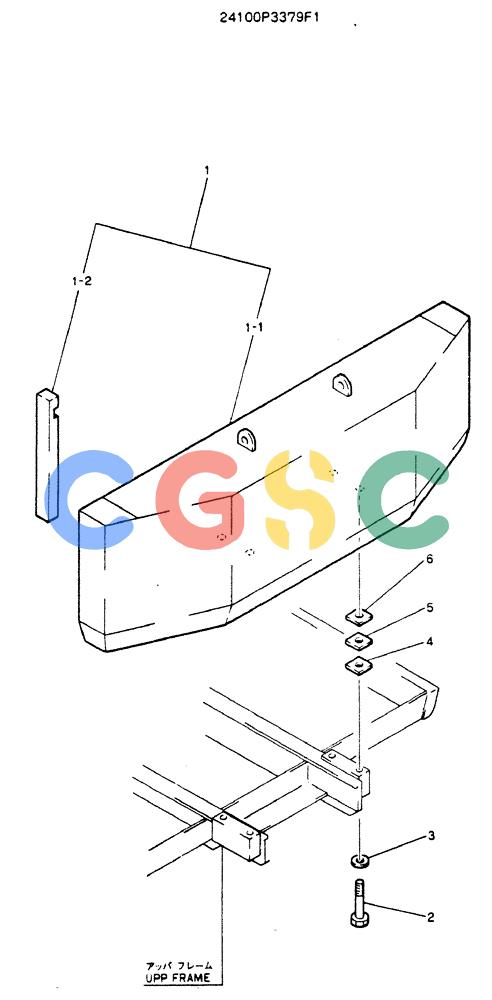

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P3379F1 | [1] | COUNTER-WEIGHT ASSY | |
| 1. | 24100P3380F1 | [1] | COUNTER-WEIGHT ASSY | |
| 1-1. | 2422J3481 | [1] | COUNTER-WEIGHT | |
| 1-2. | 2427R1135 | [1] | INSULATOR | KOBSOUND |
| 2. | ZS13C24180 | [4] | CAP | KOB |
| 3. | ZW13H24000 | [4] | WASHER | KOBID 24 x OD 39 x Th 4.0mm |
| 4. | 2418T12306D2 | [2] | SHIM | KOB(0.6) |
| 5. | 2418T12306D3 | [2] | SHIM | KOB(0.4) |
| 6. | 2418T12306D6 | [2] | SHIM | KOB(1.6) |
