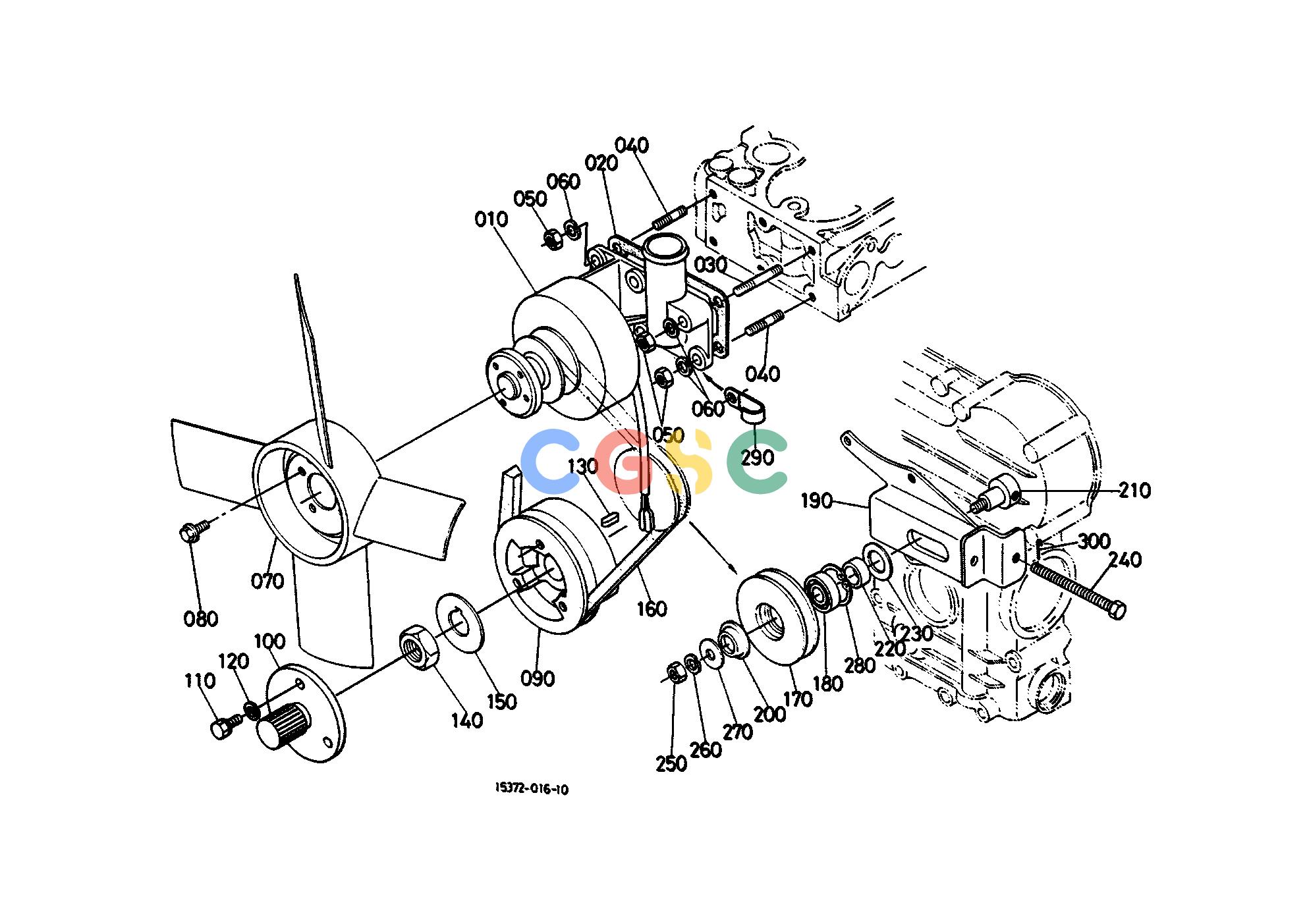

久保田零件查询T02800 FAN/DYNAMO ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1537264010
|
[1] |
ASSY DYNAMO
|
3.7400(lbs); 1.700
|
| 020. |
1526172920
|
[1] |
GASKET WATER FLANGE
|
0.0000(lbs); 0.000
|
| 030. |
0151350645
|
[1] |
STUD
|
0.0242(lbs); 0.011
|
| 040. |
0151350616
|
[5] |
STUD
|
0.0088(lbs); 0.004
|
| 050. |
0205650060
|
[6] |
NUT
|
0.0044(lbs); 0.002
|
| 060. |
0451250060
|
[6] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 070. |
1555374110
|
[1] |
FAN
|
0.6600(lbs); 0.300
|
| 080. |
0175450610
|
[4] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 090. |
1537274280
|
[1] |
PULLEY FAN DRIVE
|
1.9800(lbs); 0.900
|
| 100. |
6670488530
|
[1] |
FLANGE PTO
|
0.8800(lbs); 0.400
|
| 110. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 120. |
0401350080
|
[3] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 130. |
0571200515
|
[1] |
KEY FEATHER
|
0.0066(lbs); 0.003
|
| 140. |
1526123360
|
[1] |
NUT CRANKSHAFT
|
0.0748(lbs); 0.034
|
| 150. |
1537223380
|
[1] |
WASHER CRANKSHAFT
|
0.0154(lbs); 0.007
|
| 160. |
1523172530
|
[1] |
BELT FAN
|
0.1452(lbs); 0.066
|
| 170. |
1430174320
|
[1] |
PULLEY TENSION
|
0.0000(lbs); 0.000
|
| 180. |
1527174190
|
[1] |
BEARING
|
0.1342(lbs); 0.061
|
| 190. |
1537174410
|
[1] |
SUPPORT TEN.PULLEY
|
0.7260(lbs); 0.330
|
| 200. |
1523174770
|
[1] |
COVER TENSION PULLEY
|
0.0088(lbs); 0.004
|
| 210. |
1523174330
|
[1] |
SHAFT TENSION PULLEY
|
0.2046(lbs); 0.093
|
| 220. |
1526174430
|
[1] |
COLLAR
|
0.0286(lbs); 0.013
|
| 230. |
1430174780
|
[1] |
COVER TENSION PULLEY
|
0.0044(lbs); 0.002
|
| 240. |
1537174970
|
[1] |
BOLT TENSION
|
0.0704(lbs); 0.032
|
| 250. |
0201850100
|
[1] |
NUT
|
0.0242(lbs); 0.011
|
| 260. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 270. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 280. |
0461100400
|
[1] |
CIR CLIP INTERNAL
|
0.0088(lbs); 0.004
|
| 290. |
1527267590
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 300. |
9999999999
|
[1] |
WIRE
|
0.0000(lbs); 0.000
|
