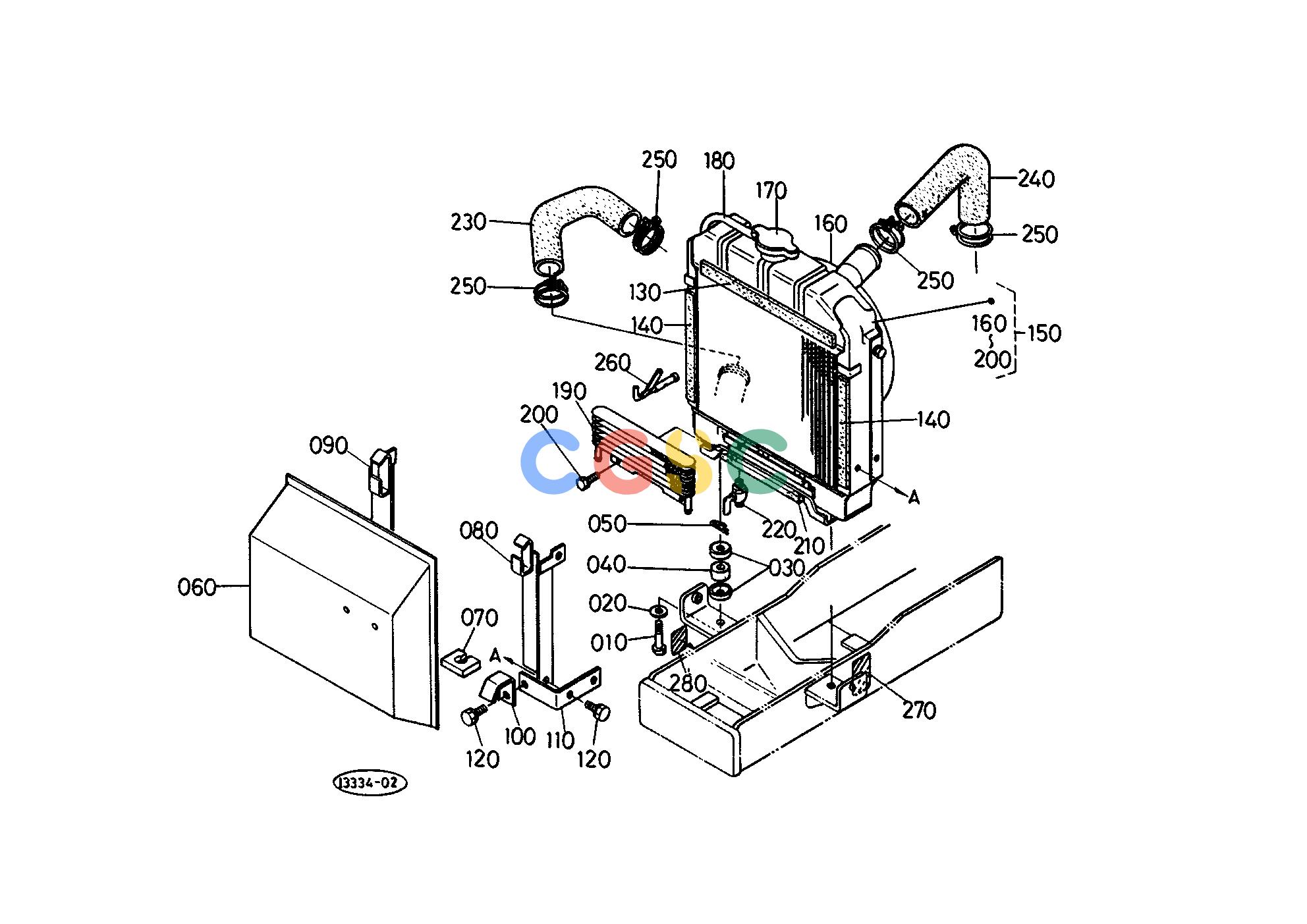

久保田零件查询T02700 RADIATOR/OIL COOLER COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
177 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6671151340
|
[2] |
BOLT RADIATOR
|
0.0704(lbs); 0.032
|
| 020. |
0401350100
|
[2] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 030. |
1511172200
|
[4] |
WASHER
|
0.0286(lbs); 0.013
|
| 040. |
1511172180
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 050. |
0551551000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 060. |
6620451450
|
[1] |
NET DUSTPROOF
|
2.2000(lbs); 1.000
|
| 070. |
6620485220
|
[2] |
TAPE NET
|
0.0044(lbs); 0.002
|
| 080. |
6620451460
|
[1] |
STAY LH
|
0.2244(lbs); 0.102
|
| 090. |
6620451470
|
[1] |
STAY RH
|
0.2244(lbs); 0.102
|
| 100. |
6620451480
|
[2] |
SPRING
|
0.0088(lbs); 0.004
|
| 110. |
6620451490
|
[2] |
PLATE SPRING
|
0.0880(lbs); 0.040
|
| 120. |
0120250612
|
[8] |
BOLT
|
0.0110(lbs); 0.005
|
| 130. |
6620451510
|
[1] |
TAPE
|
0.0198(lbs); 0.009
|
| 140. |
6620451520
|
[2] |
TAPE
|
0.0088(lbs); 0.004
|
| 150. |
1555372060
|
[1] |
ASSY RADIATOR
|
13.2000(lbs); 6.000
|
| 160. |
1537174470
|
[1] |
COVER FAN
|
0.8800(lbs); 0.400
|
| 170. |
1510172030
|
[1] |
CAP RADIATOR
|
0.1650(lbs); 0.075
|
| 180. |
1540172710
|
[1] |
PIPE WATER OVER FLOW
|
0.0704(lbs); 0.032
|
| 190. |
6620458710
|
[1] |
COOLER OIL
|
0.8360(lbs); 0.380
|
| 200. |
0120250612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 210. |
6620458730
|
[1] |
TAPE RADIATOR
|
0.0220(lbs); 0.010
|
| 220. |
1430173110
|
[1] |
COCK DRAIN
|
0.2068(lbs); 0.094
|
| 230. |
1537172850
|
[1] |
PIPE WATER
|
0.4620(lbs); 0.210
|
| 240. |
1537172940
|
[1] |
PIPE WATER
|
0.3608(lbs); 0.164
|
| 250. |
1510872870
|
[4] |
BAND
|
0.0594(lbs); 0.027
|
| 260. |
6620458750
|
[1] |
WHISTLE STEAM
|
0.0616(lbs); 0.028
|
| 260. |
H662058750
|
[1] |
WHISTLE STEAM
|
0.0616(lbs); 0.028
|
| 270. |
6670658810
|
[1] |
LABEL RADIATOR
|
0.0022(lbs); 0.001
|
| 280. |
6670658820
|
[1] |
LABEL
|
0.0022(lbs); 0.001
|
