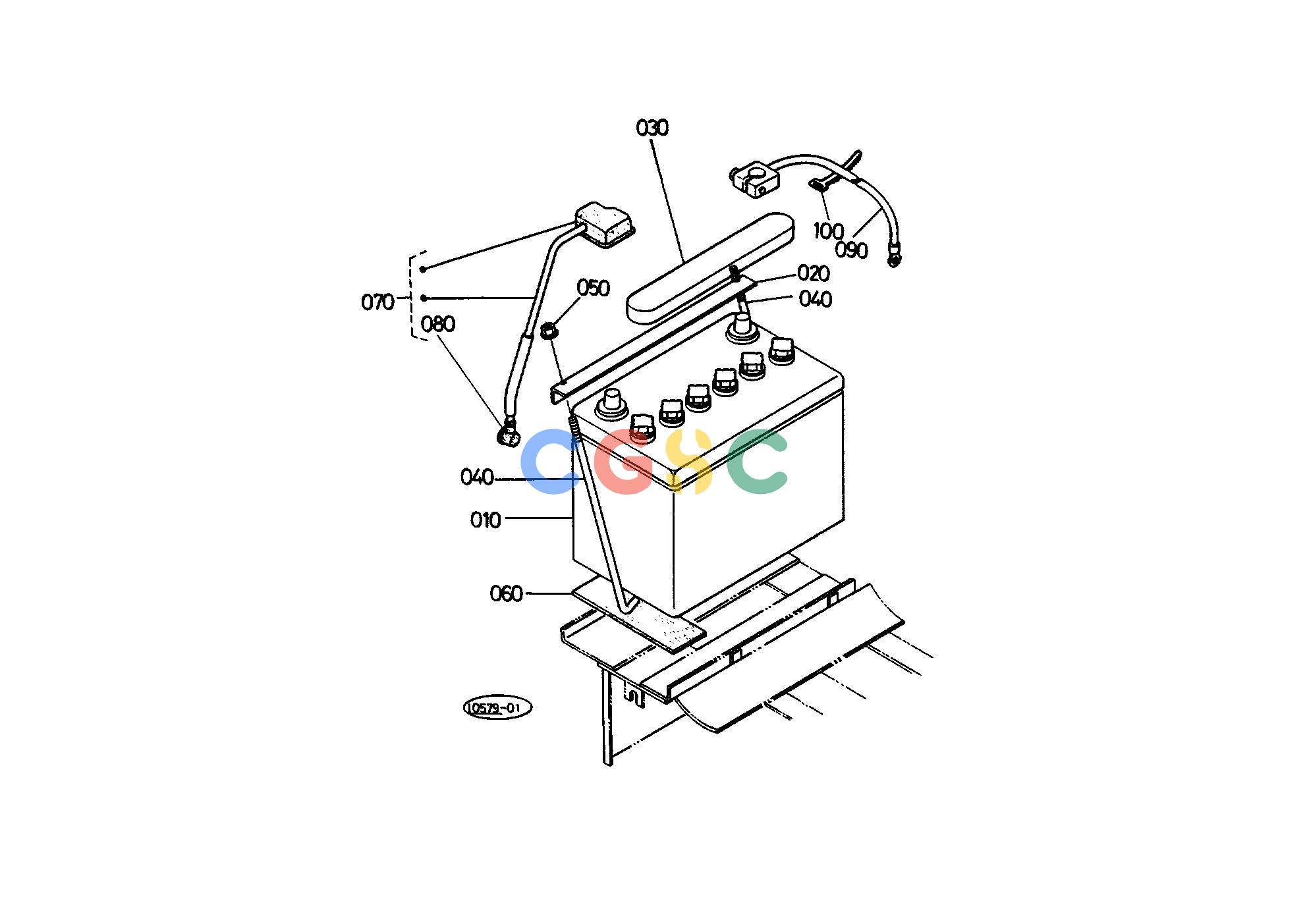

久保田零件查询T03200 BATTERY ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
646 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6670455430
|
[1] |
ASSY BATTERY
|
20.4600(lbs); 9.300
|
| 010. |
6670455433
|
[1] |
ASSY BATTERY
|
20.4600(lbs); 9.300
|
| 020. |
6706154484
|
[1] |
RETAINER BATTERY
|
0.3960(lbs); 0.180
|
| 030. |
6664155430
|
[1] |
COVER BATTERY
|
0.1540(lbs); 0.070
|
| 040. |
6659154490
|
[2] |
BOLT BATTERY SET
|
0.1056(lbs); 0.048
|
| 050. |
0275150060
|
[2] |
NUT FLANGE
|
0.0110(lbs); 0.005
|
| 060. |
3415033220
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 070. |
6670955450
|
[1] |
ASSY CORD BATTERY (+
|
0.5500(lbs); 0.250
|
| 070. |
H667055430
|
[1] |
ASSY CORD BATTERY (+
|
0.5500(lbs); 0.250
|
| 080. |
6721155470
|
[1] |
CAP TERMINAL
|
0.0044(lbs); 0.002
|
| 090. |
6670455460
|
[1] |
CORD BATTERY (-)
|
0.3630(lbs); 0.165
|
| 100. |
6671155470
|
[1] |
CLAMP CORD
|
0.0022(lbs); 0.001
|
