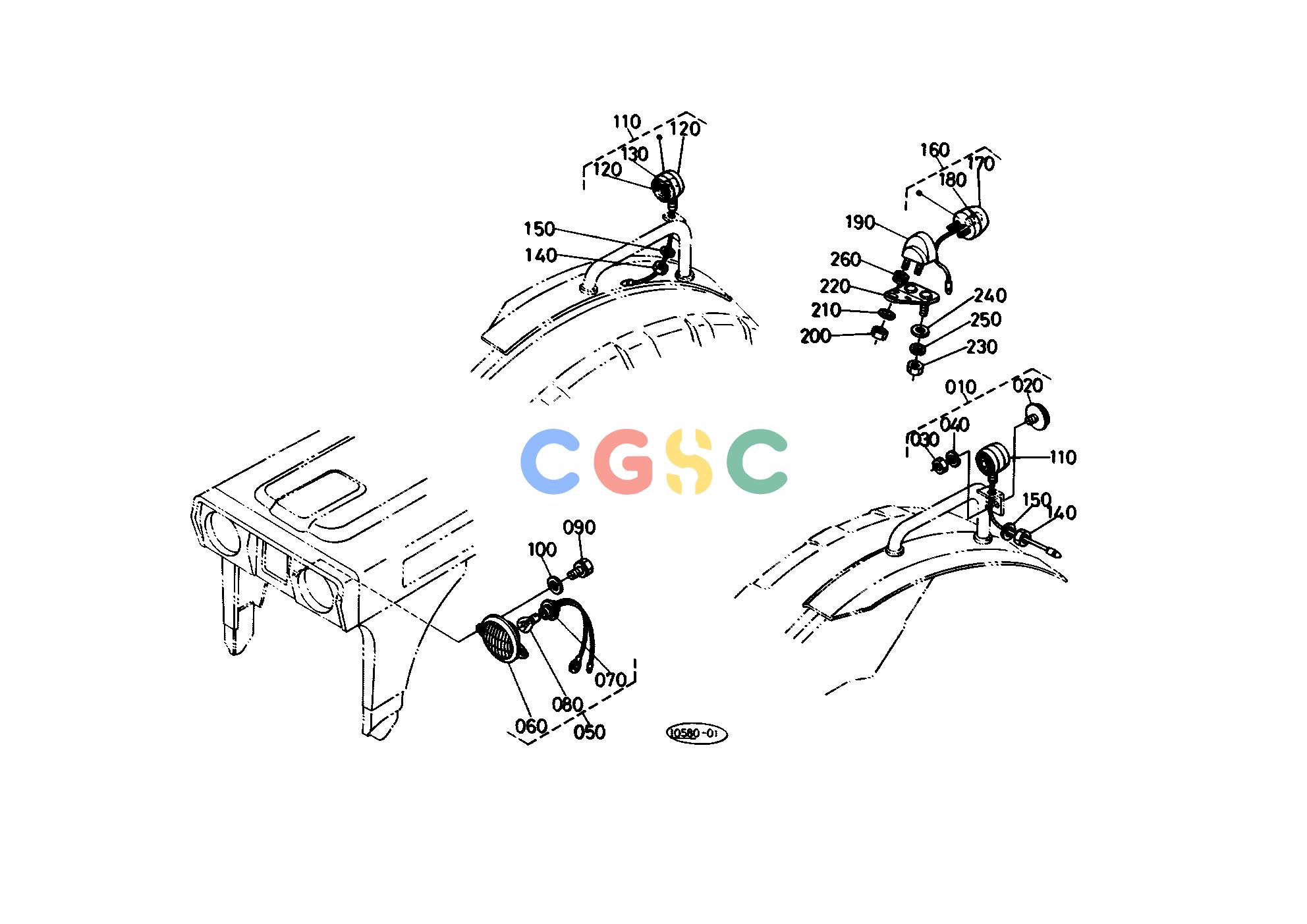

久保田零件查询T03300 LIGHT ## NOTE:Both sides are simultaneously exchanged for REF.No.010 new parts. ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
882 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6659152300
|
[2] |
ASSY REFLECTOR
|
0.0132(lbs); 0.006
|
| 020. |
5314361240
|
[2] |
COMP REFLECTOR
|
0.0242(lbs); 0.011
|
| 030. |
0205450050
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 040. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 050. |
6671154120
|
[2] |
ASSY LIGHT HEAD
|
0.3300(lbs); 0.150
|
| 050. |
6671154124
|
[2] |
ASSY LIGHT HEAD
|
0.3300(lbs); 0.150
|
| 060. |
6659155610
|
[2] |
LAMP HEAD
|
0.3300(lbs); 0.150
|
| 070. |
6671154130
|
[2] |
SOCKET
|
0.0352(lbs); 0.016
|
| 080. |
6659155630
|
[2] |
BULB LAMP
|
0.0176(lbs); 0.008
|
| 090. |
0120250612
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 100. |
0401350060
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
6711155470
|
[2] |
ASSY LAMP FLASHER
|
0.0000(lbs); 0.000
|
| 120. |
6711155440
|
[4] |
LENS
|
0.0330(lbs); 0.015
|
| 130. |
6711155490
|
[2] |
BULB
|
0.0396(lbs); 0.018
|
| 140. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 150. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 160. |
6670455520
|
[1] |
ASSY LIGHT TAIL
|
0.2420(lbs); 0.110
|
| 170. |
6670455550
|
[1] |
LENS TAIL LIGHT
|
0.0990(lbs); 0.045
|
| 180. |
6670455560
|
[1] |
BULB TAIL LIGHT
|
0.0154(lbs); 0.007
|
| 190. |
3240034190
|
[1] |
HOLDER TAIL LIGHT
|
0.2420(lbs); 0.110
|
| 200. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 210. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 220. |
6672255530
|
[1] |
STAY TAIL LAMP
|
0.1760(lbs); 0.080
|
| 230. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 240. |
0401550060
|
[2] |
WASHER PLAIN
|
0.0132(lbs); 0.006
|
| 250. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 260. |
6659154580
|
[1] |
RUBBER RELEASE ROD
|
0.0044(lbs); 0.002
|
