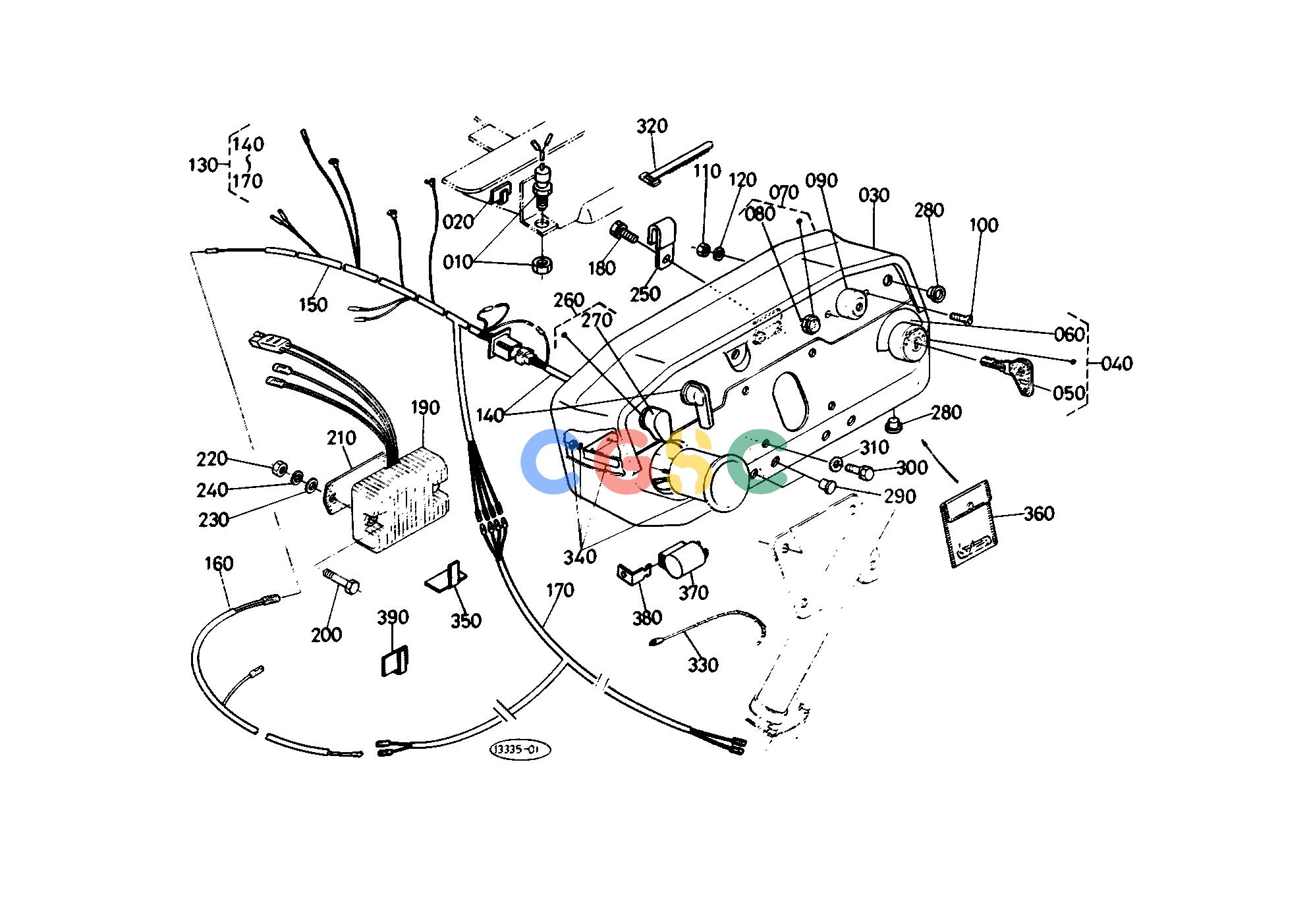

久保田零件查询T03400 PANEL ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641655810
|
[1] |
ASSY SWITCH SAFETY
|
0.2420(lbs); 0.110
|
| 020. |
6661155190
|
[1] |
SUPPORT CORD
|
0.0022(lbs); 0.001
|
| 030. |
6621355110
|
[1] |
PANEL
|
2.6400(lbs); 1.200
|
| 040. |
6670655120
|
[1] |
ASSY SWITCH STARTER
|
0.5632(lbs); 0.256
|
| 050. |
6671155240
|
[1] |
KEY START
|
0.0440(lbs); 0.020
|
| 060. |
6670655150
|
[1] |
LABEL STARTER SWITCH
|
0.0022(lbs); 0.001
|
| 070. |
6671155290
|
[1] |
ASSY LAMP OIL
|
0.0352(lbs); 0.016
|
| 080. |
3415034590
|
[2] |
BULB
|
0.0022(lbs); 0.001
|
| 090. |
1523165950
|
[1] |
INDICATOR GLOW PLUG
|
0.0990(lbs); 0.045
|
| 100. |
0105350512
|
[2] |
BOLT
|
0.0044(lbs); 0.002
|
| 110. |
0205450050
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 120. |
0451250050
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 130. |
6620455162
|
[1] |
ASSY WIRE HARNESS
|
1.3420(lbs); 0.610
|
| 140. |
6620455170
|
[1] |
WIRE HARNESS
|
0.6270(lbs); 0.285
|
| 150. |
6620455182
|
[1] |
WIRE HARNESS
|
0.4400(lbs); 0.200
|
| 160. |
6671155190
|
[1] |
WIRE HARNESS
|
0.0374(lbs); 0.017
|
| 170. |
6620455192
|
[1] |
WIRE HARNESS
|
0.2090(lbs); 0.095
|
| 180. |
0120250612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 190. |
1537264602
|
[1] |
ASSY REGULATOR
|
0.0220(lbs); 0.010
|
| 200. |
0105350640
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 210. |
6670455260
|
[1] |
RUBBER
|
0.0198(lbs); 0.009
|
| 220. |
0201450060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 230. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 240. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 250. |
1527267580
|
[1] |
CLAMP CORD
|
0.0462(lbs); 0.021
|
| 260. |
5531141120
|
[1] |
SWITCH LIGHT
|
0.1100(lbs); 0.050
|
| 270. |
6740199120
|
[1] |
ASSY KNOB LIGHT SW.
|
0.0110(lbs); 0.005
|
| 280. |
3511032420
|
[3] |
PLUG
|
0.0044(lbs); 0.002
|
| 290. |
1315167160
|
[2] |
PLUG STOP SWITCH
|
0.0220(lbs); 0.010
|
| 290. |
3824029570
|
[2] |
PLUG
|
0.0022(lbs); 0.001
|
| 300. |
0112350818
|
[4] |
BOLT
|
0.0264(lbs); 0.012
|
| 310. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 320. |
6671155470
|
[1] |
CLAMP CORD
|
0.0022(lbs); 0.001
|
| 330. |
6670455510
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 340. |
6670455310
|
[1] |
METER TRACTOR
|
0.4840(lbs); 0.220
|
| 350. |
6661155190
|
[6] |
SUPPORT CORD
|
0.0022(lbs); 0.001
|
| 360. |
6659155520
|
[1] |
ASSY FUSE RESERVE
|
0.0088(lbs); 0.004
|
| 370. |
3467033700
|
[1] |
UNIT FLASHER
|
0.0550(lbs); 0.025
|
| 380. |
6620455822
|
[1] |
STAY UNIT
|
0.0110(lbs); 0.005
|
| 390. |
6670655220
|
[10] |
SUPPORT CORD
|
0.0044(lbs); 0.002
|
