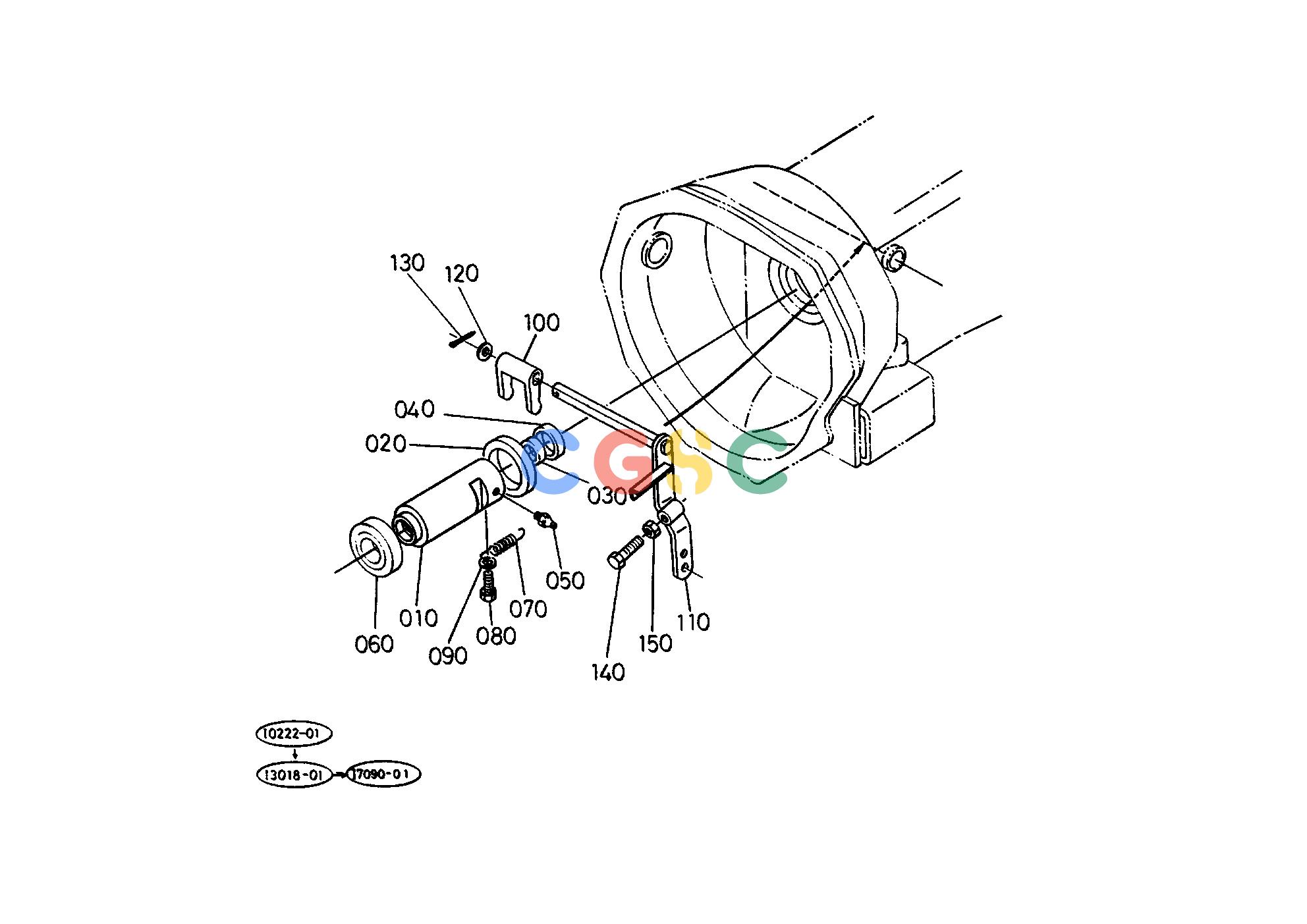

久保田零件查询T03600 CLUTCH ROD TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
920 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6662113314
|
[1] |
HOLDER BEARING
|
1.3860(lbs); 0.630
|
| 020. |
6662151420
|
[1] |
SEAL OIL
|
0.0242(lbs); 0.011
|
| 030. |
0903020328
|
[1] |
SEAL OIL
|
0.0198(lbs); 0.009
|
| 040. |
0903020357
|
[1] |
SEAL OIL
|
0.0198(lbs); 0.009
|
| 050. |
0661310675
|
[1] |
NIPPLE GREASE
|
0.0066(lbs); 0.003
|
| 060. |
3215014820
|
[1] |
BEARING BALL
|
0.4400(lbs); 0.200
|
| 070. |
6661113340
|
[1] |
SPRING RELEASE
|
0.0132(lbs); 0.006
|
| 080. |
0120250610
|
[1] |
BOLT
|
0.0088(lbs); 0.004
|
| 090. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
6662113350
|
[1] |
FORK CLUTCH RELEASE
|
0.2090(lbs); 0.095
|
| 100. |
H666013350
|
[1] |
FORK CLUTCH RELEASE
|
0.2090(lbs); 0.095
|
| 110. |
6620413310
|
[1] |
ROD CLUTCH
|
0.9240(lbs); 0.420
|
| 120. |
0401150140
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 130. |
0551150320
|
[1] |
PIN SPLIT
|
0.0044(lbs); 0.002
|
| 140. |
6671113320
|
[1] |
BOLT ADJUSTING
|
0.0616(lbs); 0.028
|
| 150. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
