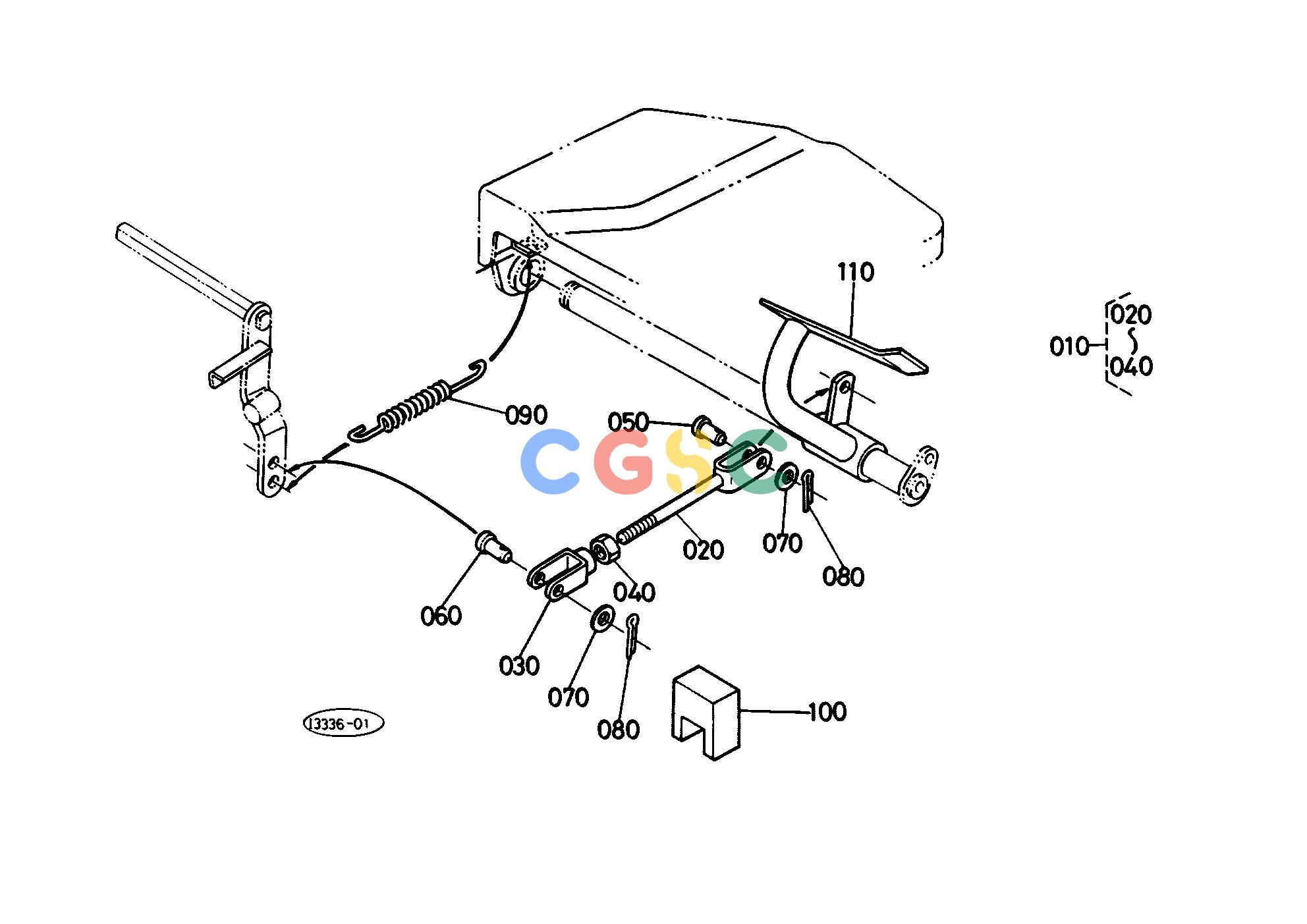

久保田零件查询T03700 CLUTCH PEDAL TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
584 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620442100
|
[1] |
ASSY ROD CLUTCH
|
0.4004(lbs); 0.182
|
| 020. |
6620442110
|
[1] |
ROD CLUTCH
|
0.2530(lbs); 0.115
|
| 030. |
6662143130
|
[1] |
HOLDER
|
0.1320(lbs); 0.060
|
| 040. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 050. |
0512250822
|
[1] |
PIN JOINT
|
0.0220(lbs); 0.010
|
| 060. |
0512250825
|
[1] |
PIN JOINT
|
0.0242(lbs); 0.011
|
| 070. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
6620443250
|
[1] |
SPRING RETURN
|
0.2860(lbs); 0.130
|
| 100. |
6671142150
|
[1] |
SPACER PEDAL
|
0.0594(lbs); 0.027
|
| 110. |
6671142120
|
[1] |
PEDAL CLUTCH
|
2.0372(lbs); 0.926
|
