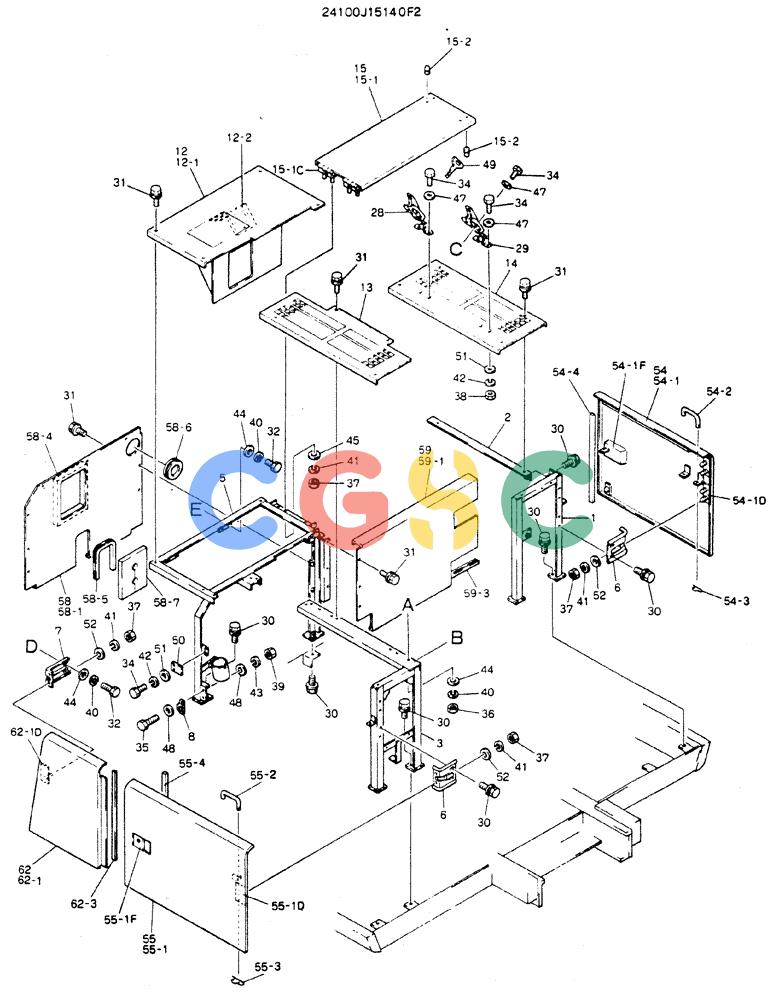

| . . | 24100J15140F2 | [1] | GUARD ASSY | |
| 1. | 2416J2049 | [1] | BRACKET | KOB |
| 2. | 2416P15102 | [1] | U-BRACKET | KOB |
| 3. | 2416J2010 | [1] | BRACKET | KOB |
| 5. | 2416J2009 | [1] | U-BRACKET | KOBBRACKET |
| 6. | 2416P16989 | [4] | U-BRACKET | KOB Superseded by part number: 2416P15198 |
| 7. | 2416P15750 | [2] | BRACKET | KOB |
| 8. | 2416Z620 | [2] | U-BRACKET | KOB |
| 12. | 24100P3441F1 | [1] | GUARD ASSY | |
| 12-1. | 24100P3442F1 | [1] | GUARD ASSY | GUARD ASSY |
| 12-2. | 2479T1890 | [1] | INSULATOR | KOB |
| 13. | 2414P8719 | [1] | GUARD | KOB |
| 14. | 2414P8668 | [1] | GUARD | KOB |
| 15. | 24100P2904F1 | [1] | COVER ASSY | KOB |
| 15-1. | 2414P7437 | [1] | COVER | COVER |
| 15-1C. | 2420P1562 | [2] | HINGE | KOB |
| 15-2. | 2416T13435 | [4] | RUBBER | KOBCUSHION |
| 20. | 24100N6847F1 | [1] | BOX | KOB |
| 20-1. | 2414J2482 | [1] | BATTERY BOX | KOB |
| 20-2. | 2414P7275 | [1] | COVER | KOB |
| 20-2D. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 20-2E. | 2420Z1025 | [2] | HINGE | KOB |
| 20-3. | 2420T6786 | [4] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 20-4. | 2419R9D2 | [1] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 20-5. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 20-6. | 2416R479D1 | [1] | CUSHION | KOB |
| 21. | 2427P3368 | [1] | HANDRAIL | KOB Superseded by part number: 2427P4216 |
| 23. | 24100P3050F2 | [1] | SPRING ASSY | |
| 23-3. | 2416T24035 | [1] | SUPPORT | KOBSUPPORT |
| 23-4. | 2416T24036 | [1] | SUPPORT | KOBSUPPORT |
| 23-7. | 2416P15682 | [1] | SUPPORT | KOBSUPPORT |
| 23-8. | 2416P15683 | [1] | SUPPORT | |
| 23-9. | 2417P302 | [1] | SPRING | KOB |
| 23-10. | 2417P303 | [1] | SPRING | KOB |
| 25. | 2416T6289D2 | [1] | STAY | KOBSTAY |
| 26. | ZP15K02020 | [1] | SPLIT PIN | KOB |
| 27. | 2419R9D6 | [1] | PIN | KOBSnap -- OD 16mm x 43.8mm Long |
| 28. | 2427R475 | [1] | CATCH | KOB Superseded by part number: YN21C02226P1 |
| 29. | 2427R302D2 | [1] | CATCH | KOB |
| 30. | 2420T6787 | [26] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 31. | 2420T6786 | [27] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| 32. | ZS18C12035 | [8] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 33. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 34. | ZS18C08025 | [12] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 35. | ZS18C06025 | [4] | SCREW,Hex, M6 x 25mm | KOBM06x1.0x25mm |
| 36. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 37. | ZN18C10008 | [16] | NUT | KOBM10x1.50mm |
| 38. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 39. | ZN18C06005 | [4] | NUT | KOBM06x1.0mm |
| 40. | ZW26X12000 | [16] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 41. | ZW26X10000 | [16] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 42. | ZW26X08000 | [12] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 43. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 44. | 2418T10357 | [12] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 45. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 47. | ZW16X08000 | [12] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 48. | ZW16H06000 | [8] | WASHER | KOBID 06 x OD 15 x Th 3.2mm |
| 50. | 2418T23536 | [2] | PLATE | KOB |
| 51. | ZW16H08000 | [8] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 52. | 2418T12346 | [12] | WASHER | KOBID 11 x OD 30 x Th 3.2mm |
| 53. | ZW16X16000 | [1] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 54. | 24100P3439F1 | [1] | COVER ASSY | COVER ASSY |
| 54-1. | 2414N4778 | [1] | COVER | COVER |
| 54-1D. | 2420T4450 | [2] | HINGE | KOB |
| 54-1F. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 54-2. | 2416T23696 | [1] | STAY | KOBSTAY |
| 54-3. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 54-4. | 2416Z650D1 | [1] | RUBBER SLEEVE | KOB20x25x595mm |
| 55. | 24100P3440F1 | [1] | COVER ASSY | |
| 55-1. | 2414N4779 | [1] | COVER | |
| 55-1D. | 2420T4450 | [2] | HINGE | KOB |
| 55-1F. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 55-2. | 2416T23696 | [1] | STAY | KOBSTAY |
| 55-3. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 55-4. | 2416Z650D1 | [1] | RUBBER SLEEVE | KOB20x25x595mm |
| 58. | 24100P3681F2 | [1] | GUARD ASSY | |
| 58-1. | 2414P8856 | [1] | GUARD | |
| 58-4. | 2416Z847 | [1] | CUSHION | KOB |
| 58-5. | 2427Z1594D047 | [1] | SOFT TRIM | KOBTRIM |
| 58-6. | 2427Z1594D037 | [1] | TRIM | |
| 58-7. | 2479Z2774 | [1] | INSULATOR | INSULATOR |
| 59. | 24100P2948F2 | [1] | GUARD ASSY | |
| 59-1. | 2414P7561 | [1] | GUARD | |
| 59-3. | 2416Z263D5 | [1] | SHEET | KOB |
| 62. | 24100P2952F2 | [1] | COVER | KOB |
| 62-1. | 2414N4370 | [1] | COVER | KOB |
| 62-1D. | 2420T4450 | [2] | HINGE | KOB |
| 62-3. | 2416Z487D3 | [1] | RUBBER SLEEVE | KOBCUSHION |
| 63. | 24100J12556F1 | [1] | COVER ASSY | KOBSEE FIGURE 02-006 |
| 66. | 24100P3356F1 | [1] | COVER | KOB |
| 66-1. | 2414N4720 | [1] | COVER | KOB |
| 66-1D. | 2420T4450 | [2] | HINGE | KOB |
| 66-1F. | 2427R476F1 | [1] | LOCK | KOB Superseded by part number: 2421R175F2 |
| 66-2. | 2416Z650D1 | [1] | RUBBER SLEEVE | KOB20x25x595mm |
| 66-3. | 2416T23696 | [1] | STAY | KOBSTAY |
| 66-4. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 67. | 24100P3357F1 | [1] | COVER ASSY | |
| 67-1. | 2414N4721 | [1] | COVER | COVER |
| 67-1D. | 2420T4450 | [2] | HINGE | KOB |
| 67-1F. | 2427R476F2 | [1] | LOCK | KOB Superseded by part number: 2421R175F1 |
| 67-2. | 2416Z650D1 | [1] | RUBBER SLEEVE | KOB20x25x595mm |
| 67-3. | 2416T23696 | [1] | STAY | KOBSTAY |
| 67-4. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 68. | 2420Z1030D2 | [1] | KIT | KOBPLATE (NOT SUPPLIED WITH LATCH) Superseded by part number: PM50S01001P1 |
