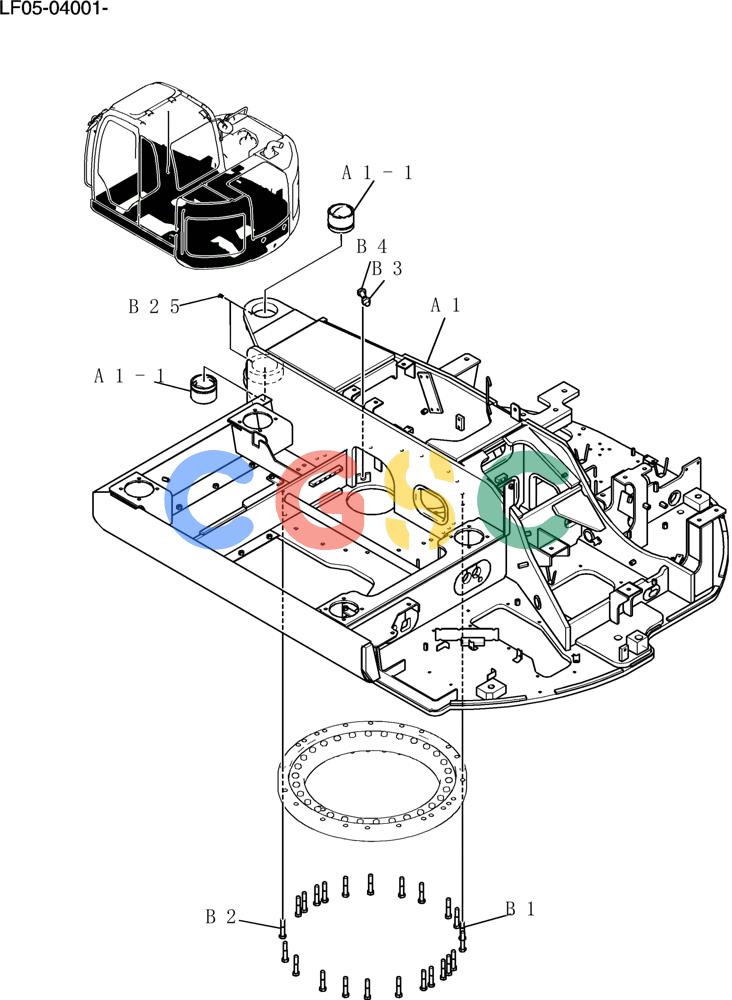

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (010-18[1]) - FRAME ASSY, UPP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
428 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF52F00011F1 | [1] | Frame Assy, Upp | |
| A1. | LF52F00008P1 | [1] | Frame, Upp | |
| A1-1. | LF52F01011P1 | [2] | BUSHING | KOB |
| . . | LF52F00010F1 | [1] | Frame Group, Upp | |
| B1. | HS53C16085G1 | [1] | SCREW | KOBCap |
| B2. | ZS13C16085 | [23] | SCREW | KOBCap |
| B3. | ZN18F20016 | [1] | NUT | KOB |
| B4. | ZS18F20085 | [1] | CAPTIVE WASHER SCREW,Hex, M20 x 85mm | KOBCap |
| B8. | YR52F01080D7 | [5] | RUBBER SEAL | KOB Superseded by part number: YY52F01567D5 |
| B9. | YR52F01086D3 | [1] | RUBBER SEAL | KOB |
| B12. | YT64H01029D7 | [1] | RUBBER | KOB |
| B13. | YT68H01031P1 | [1] | GROMMET | KOB |
| B14. | YT32H01066P1 | [1] | GROMMET | KOB |
| B15. | YT13E01120P1 | [1] | GROMMET | KOB |
| B16. | PH13E01071P1 | [2] | GROMMET | KOB |
| B17. | 2420Z1234 | [1] | GROMMET | KOB |
| B18. | YT52F01189P1 | [2] | INSULATION | KOBInsulation |
| B21. | YT52F01266P1 | [1] | GROMMET | KOB |
| B22. | LF68H01002P1 | [1] | GROMMET | KOB |
| B23. | LF03H01020P1 | [1] | GROMMET | KOB |
| B24. | LF03H01019P1 | [1] | GROMMET | KOB |
| B25. | ZG91U02000 | [2] | LUBE NIPPLE | KOBGrease |
| B26. | LF52F01111P1 | [1] | Insulation | |
| B27. | LF52F01107P1 | [1] | INSULATION | KOBInsulation |
| B28. | YT52F01258P1 | [1] | INSULATION | KOBInsulation |
| B29. | YN64H01068DA | [1] | Rubber | |
| B30. | YR52F01080DE | [2] | RUBBER SEAL | KOB Superseded by part number: YY52F01567D5 |
