神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (02-006) - COVER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
407 次

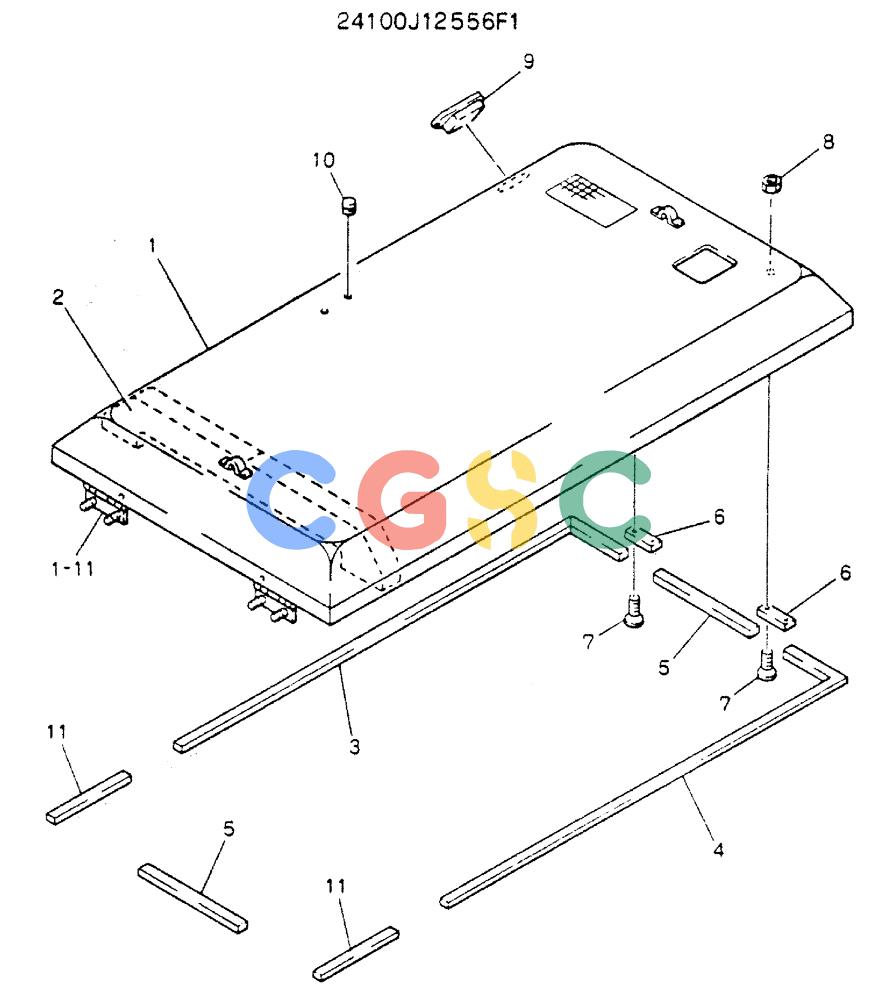

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J12556F1 | [1] | COVER ASSY | KOB |
| 1. | 2414J2382 | [1] | COVER | KOB |
| 1-11. | 2420P1563 | [2] | HINGE | KOB |
| 2. | 2479R1475 | [1] | INSULATOR | KOB |
| 3. | 2416Z635 | [1] | RUBBER | KOB |
| 4. | 2416Z636 | [1] | RUBBER | KOB |
| 5. | 2416Z627 | [2] | RUBBER | KOB |
| 6. | 2416T23317 | [2] | RUBBER SLEEVE | KOB |
| 7. | ZS41C05030 | [4] | SCREW,M5 x 30mm | KOBM05x0.8x30mm |
| 8. | ZN18C05004 | [4] | NUT | KOBM05x0.8mm |
| 9. | 2406Z304 | [1] | HANDLE | KOB |
| 10. | 2420R429D14 | [2] | GROMMET | KOB |
| 11. | 2416Z631D1 | [2] | RUBBER | KOB |
