神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (02-007) - COVER ASSY. UNDER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
198 次

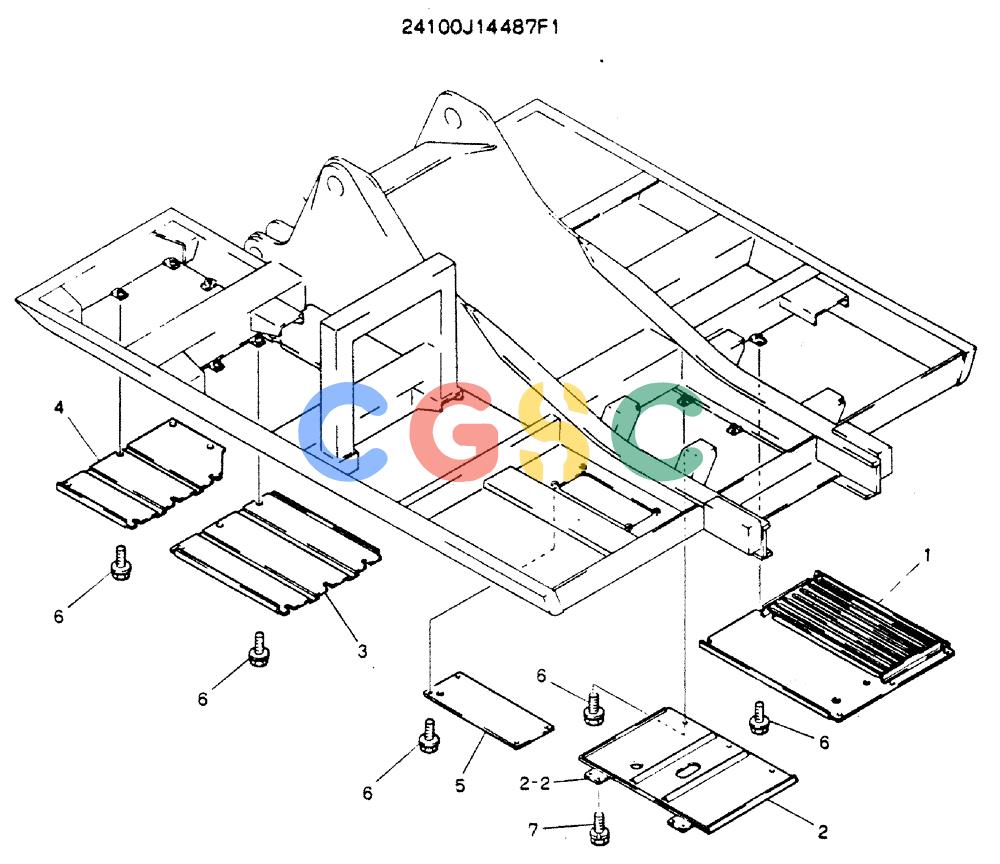

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J14487F1 | [1] | COVER ASSY, UNDER | COVER ASSY, UNDER |
| 1. | 2414P7461 | [1] | COVER | KOB |
| 2. | 2414P8661 | [1] | COVER | KOB |
| 2-2. | 2420T4521 | [2] | HINGE | KOB |
| 3. | 2414P8511 | [1] | COVER | KOB |
| 4. | 2414P7570 | [1] | COVER | KOB |
| 5. | 2414T5178 | [1] | COVER | COVER |
| 6. | 2420T6787 | [26] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 7. | 2420T6788 | [4] | SCREW,M10 x 1.5 x 25mm | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C10025 |
