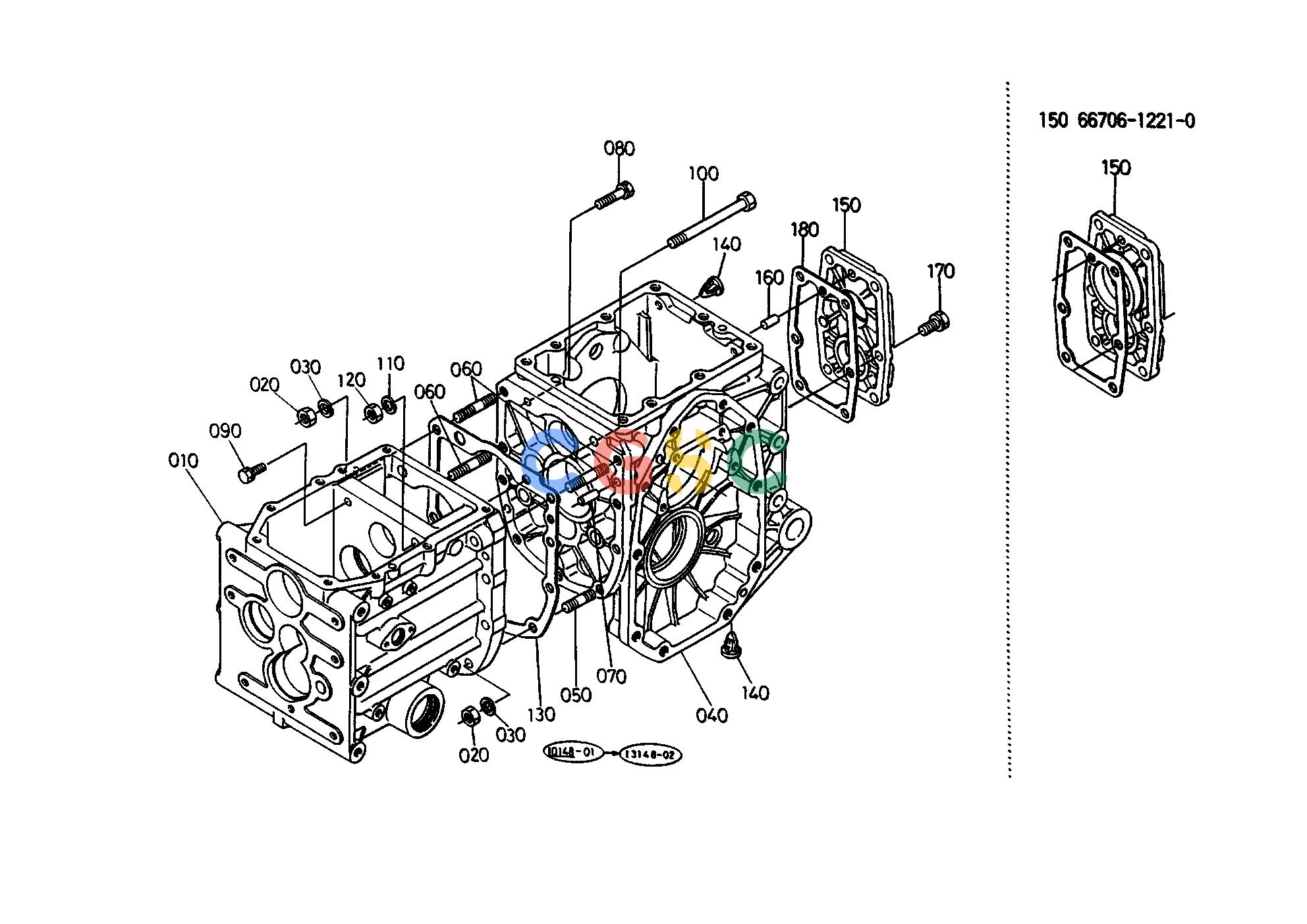

久保田零件查询T03900 TRANSMISSION CASE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
571 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620411119
|
[1] |
CASE TRANSMISSION
|
41.3160(lbs); 18.780
|
| 020. |
0217650100
|
[9] |
NUT
|
0.0110(lbs); 0.005
|
| 030. |
0451250100
|
[9] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 040. |
6661111173
|
[1] |
CASE GEAR
|
0.0000(lbs); 0.000
|
| 040. |
6661111174
|
[1] |
CASE GEAR
|
18.7000(lbs); 8.500
|
| 050. |
0155551035
|
[6] |
STUD
|
0.0638(lbs); 0.029
|
| 060. |
0155551050
|
[3] |
STUD
|
0.0836(lbs); 0.038
|
| 070. |
6661111160
|
[2] |
PIN KNOCK
|
0.0220(lbs); 0.010
|
| 080. |
0112350838
|
[1] |
BOLT
|
0.0440(lbs); 0.020
|
| 090. |
0112350825
|
[1] |
BOLT
|
0.0286(lbs); 0.013
|
| 100. |
6620411140
|
[1] |
BOLT
|
0.2134(lbs); 0.097
|
| 110. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 120. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 130. |
6661111130
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 140. |
6721111140
|
[4] |
PLUG
|
0.0022(lbs); 0.001
|
| 150. |
6670612210
|
[1] |
COVER REAR
|
2.6620(lbs); 1.210
|
| 150. |
6721112212
|
[1] |
COVER REAR
|
3.1240(lbs); 1.420
|
| 160. |
0501200816
|
[1] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 170. |
0112351025
|
[6] |
BOLT
|
0.0440(lbs); 0.020
|
| 180. |
6661112220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
